Injection Quills

Optimized & Industry-ready Solutions

For All Your Complicated Needs

We build Injection Quills specifically for your injection needs and requirements.

ProMixUSA Chemical Injection Quills are used to introduce medium to highly corrosive chemicals into a pipeline without damage to the side port or pipe wall at the point of injection.  In addition, chemical injection quills ensure that chemicals are evenly dispersed into the center of the pipeline, which prevents channeling of the chemical down the pipe wall.  Also, the body and stinger are both constructed of chemical resistant plastics or alloys (PVC, Kynar, 316 SS, or Hastelloy C-276).  Finally, injection quills with 3” to XXX” long stingers are available from stock, or they can be produced with a low lead time.  Finally, all injection quills come with female by male MNPT threaded connections, flanged or Tri-Clamp Sanitary for ease of installation.  Retractable Quills come with Threaded, Flanged or Tri clamp sanitary ends and various stinger lengths, ball valves, isolation valves, safety chains and other options.

Injection Quill
No Check Valve

An injection quill without a check valve delivers chemicals into pipelines, ensuring precise dosing. It lacks backflow prevention, requiring careful system design to avoid reverse flow and maintain process integrity.

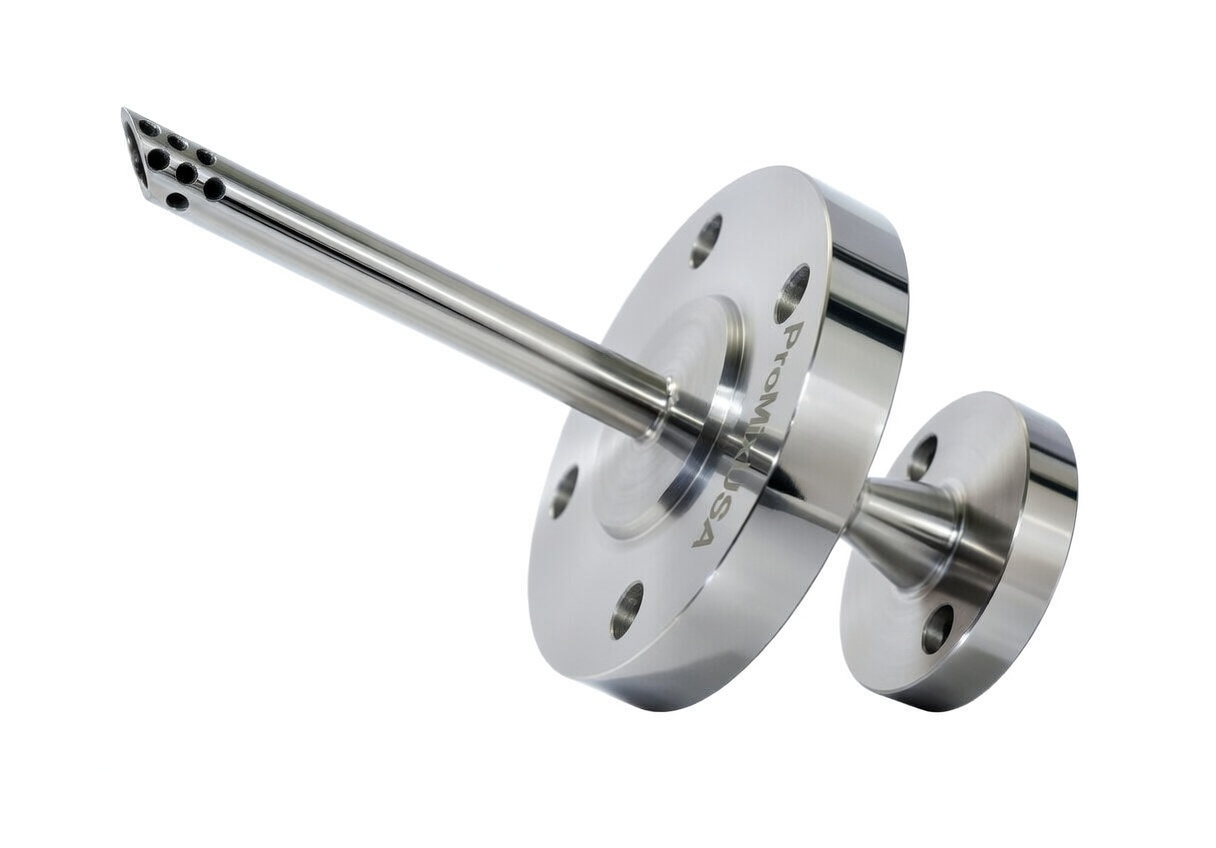

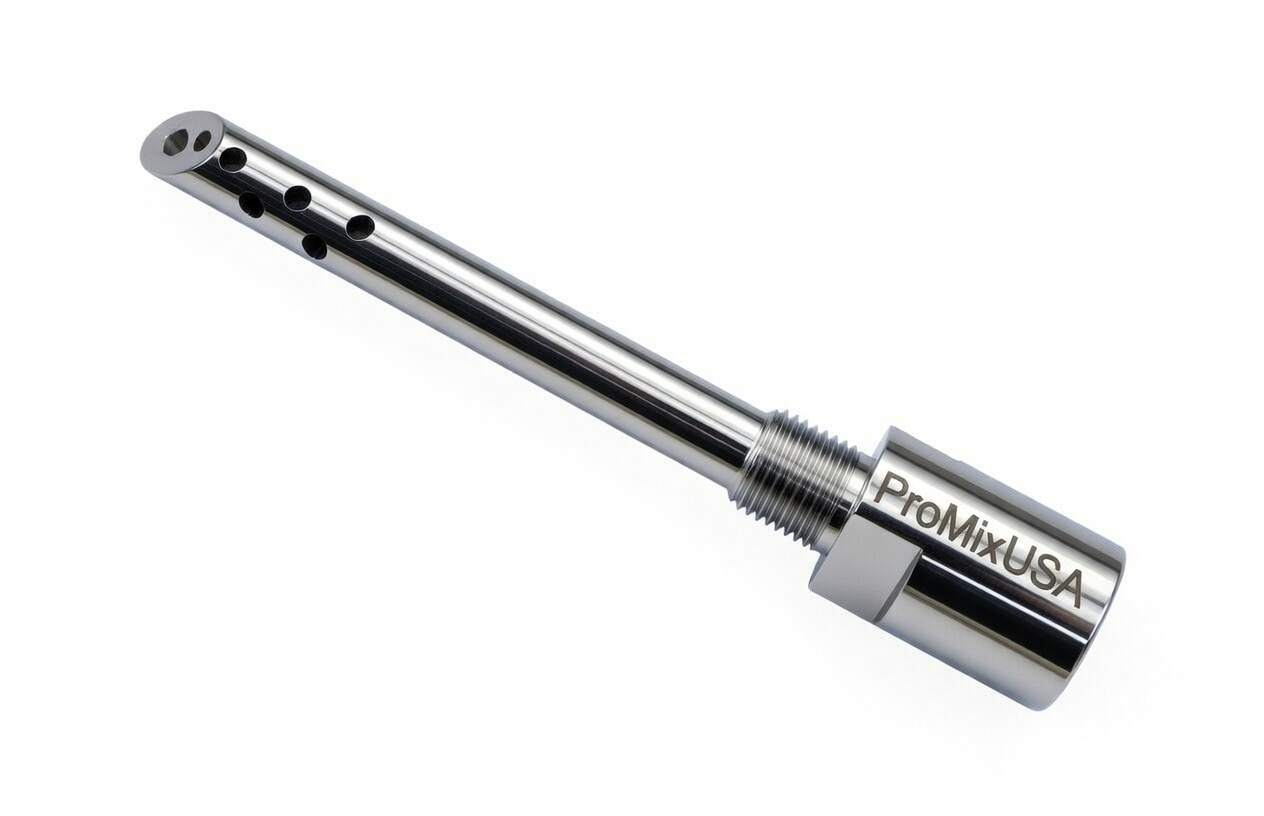

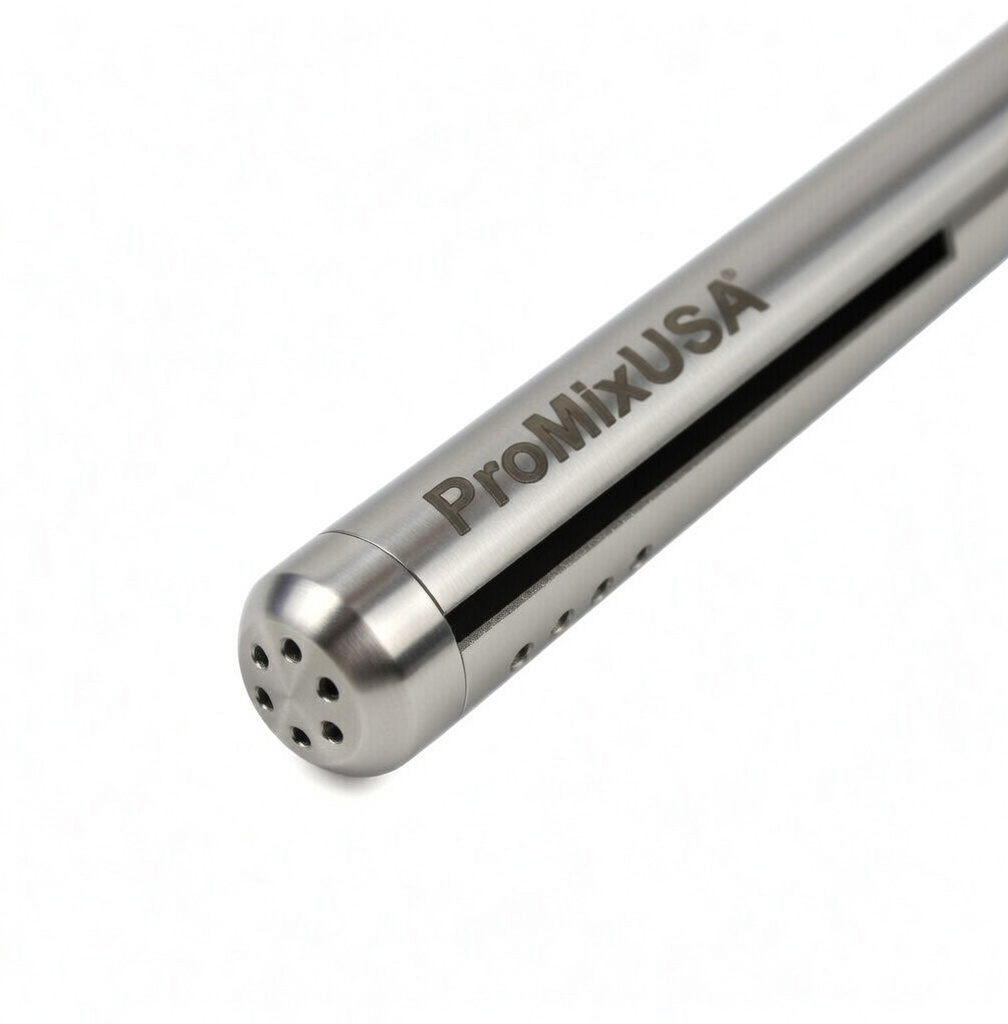

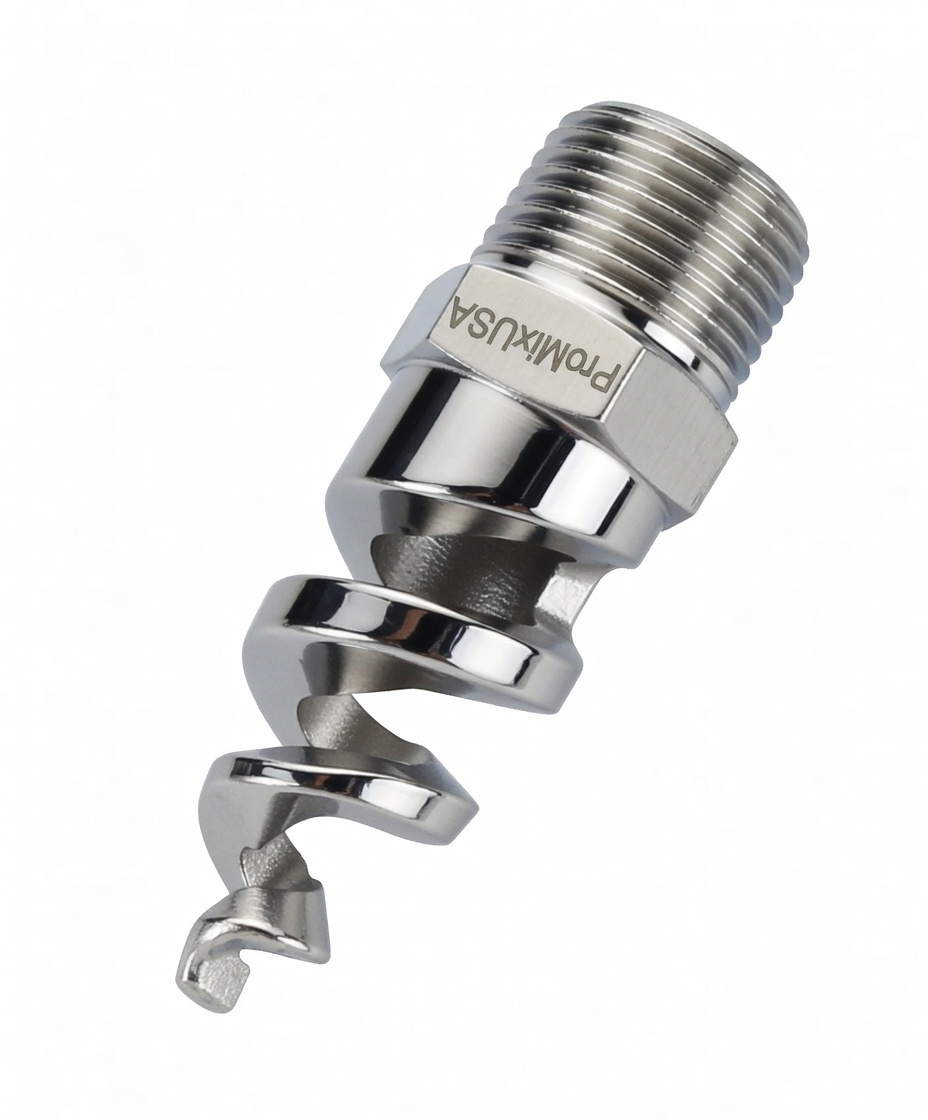

Specialty Quills

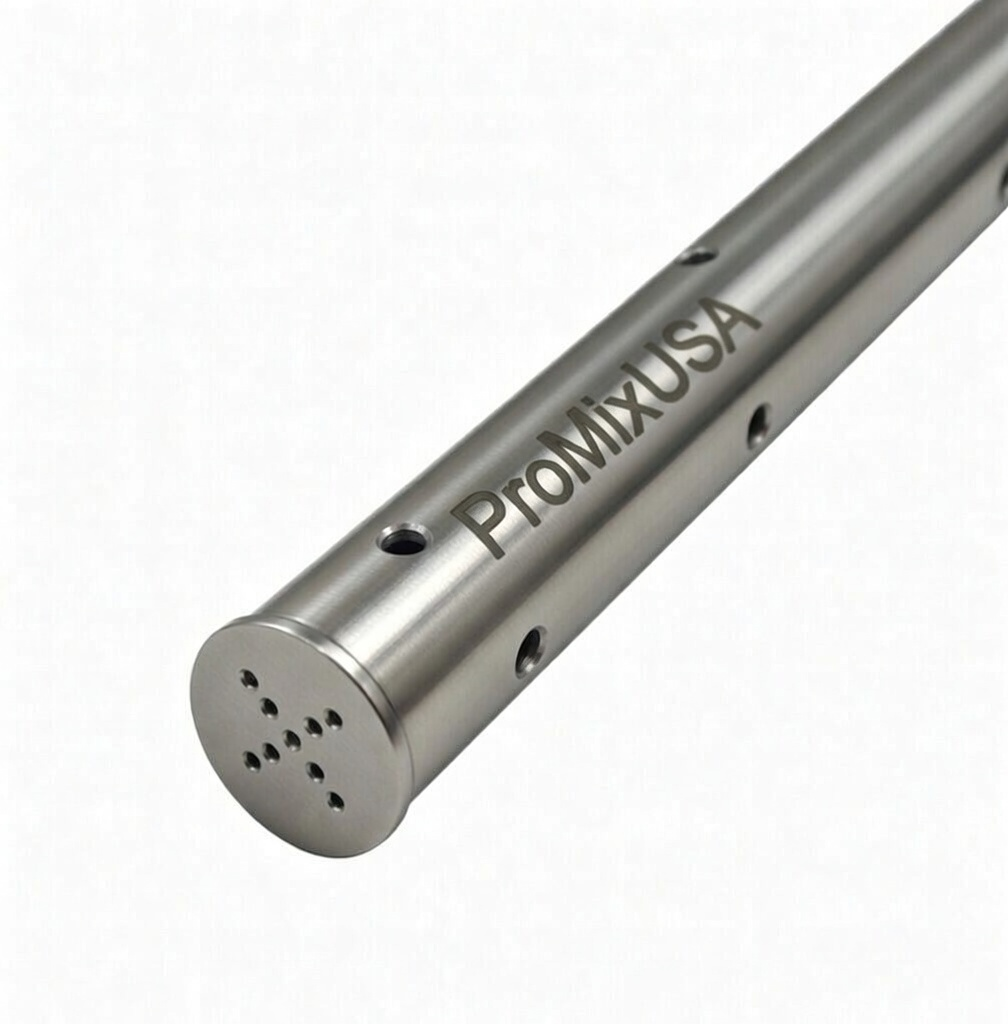

A specialty injection quill with many different options crafted from various optional materials. Its various nozzle options that you can choose ensures proper injection, dispersion, and delivery. The retractable design allows maintenance without shutdown, and the fixed optimizes mixing and durability in harsh, high-pressure environments.

Injection Quill with check valve

Injection Quill
Check Valve

An injection quill with a check valve injects chemicals into pipelines, preventing backflow. It ensures precise dosing, enhances safety, and maintains system integrity by blocking reverse flow effectively.

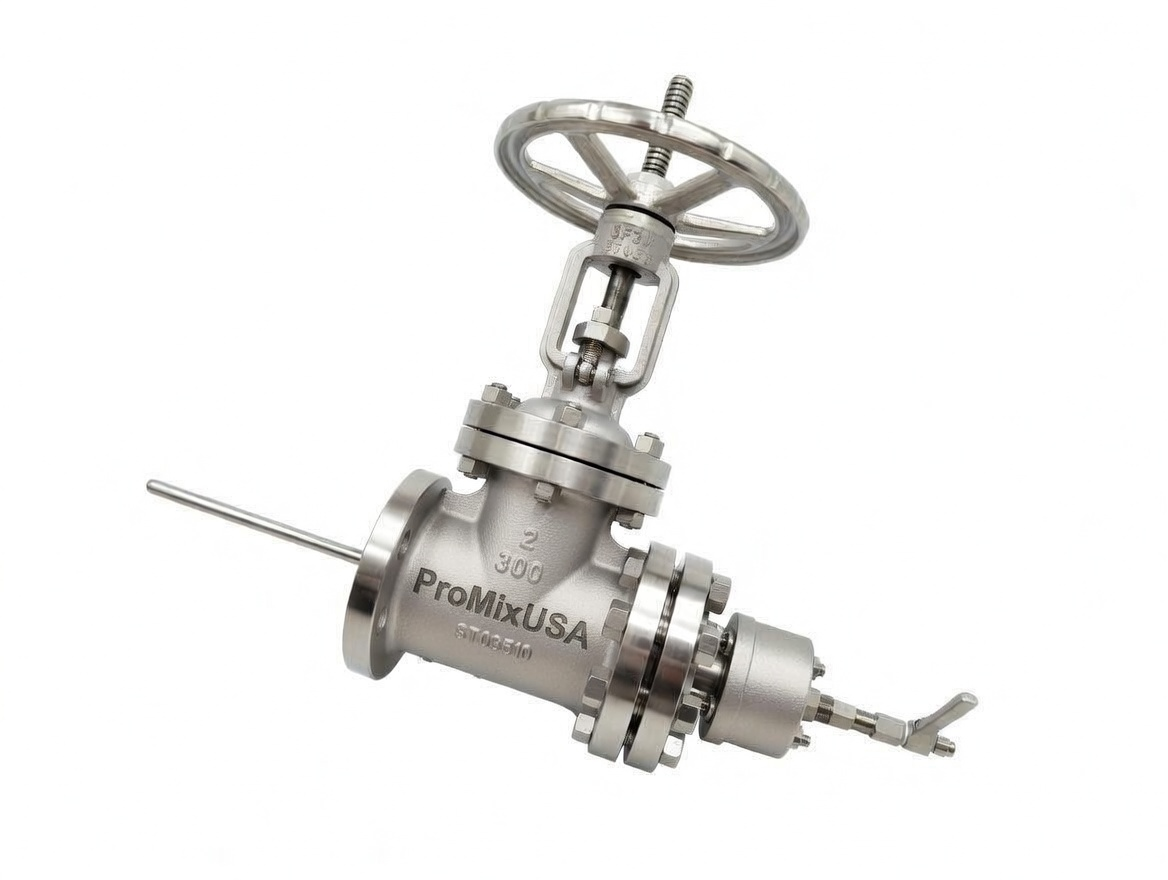

Retractable Quill

A retractable injection quill allows safe chemical injection into pipelines and can be withdrawn without system shutdown. It ensures precise dosing, enhances maintenance ease, and maintains system integrity, often including a check valve to prevent backflow.

Request a Quote for Injection Quills

Material Options

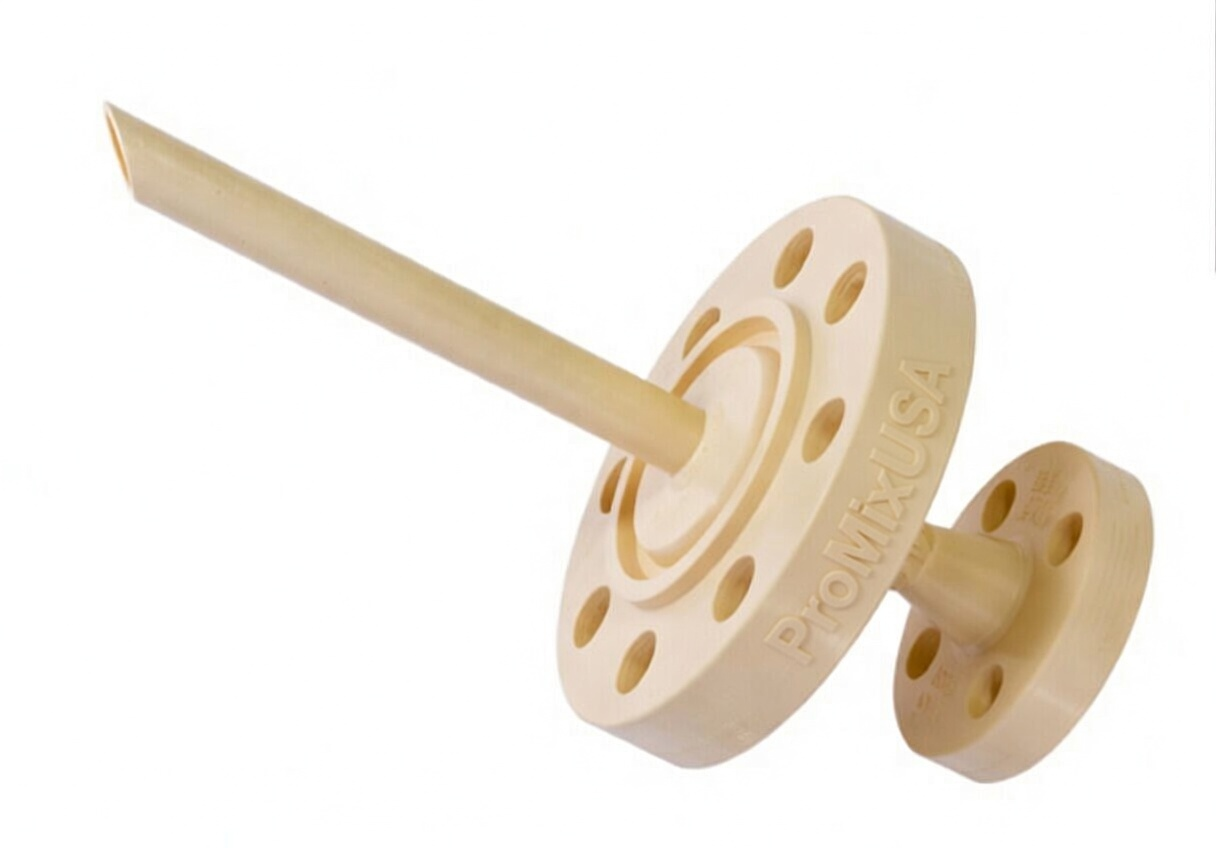

PVC Injection with check valve

PVC


PVC rod (unplasticised polyvinyl chloride) is a rigid engineering plastic that provides high mechanical strength, excellent resistance to chemicals and offers low moisture absorption.

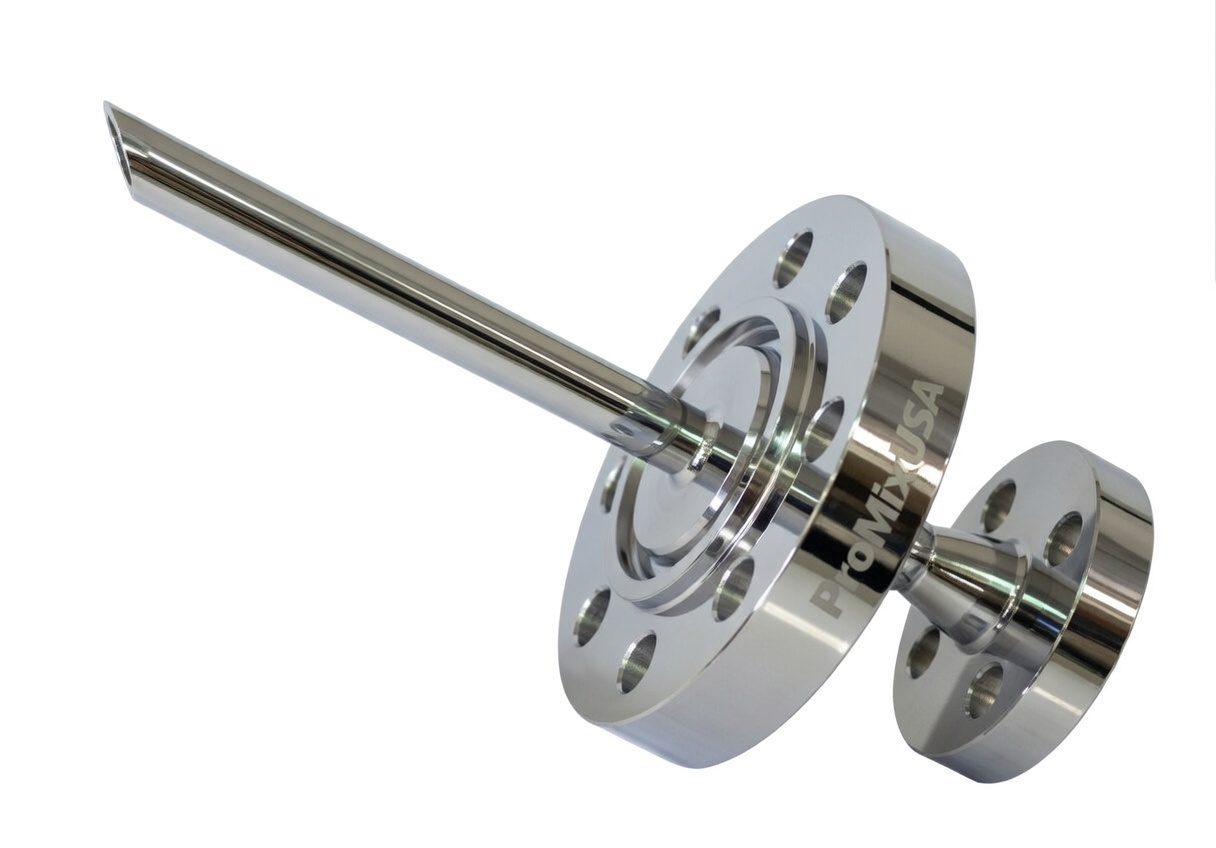

Hastelloy C-276 Injection Quill with Check valve

316L Stainless Steel


Stainless Round Bar 316 exhibits high strength and excellent corrosion resistance including in marine environments.  Also, 316 is slightly stronger than 304 stainless and is rated as a marine metal.  Furthermore, 316 maintains its properties in cryogenic or high temperatures.

Kynar Quill with Check valve

PVDF Kynar


Lightweight with high chemical corrosion resistance and high heat resistance, commonly used for chemical installations, pharmaceuticals and bioindustry applications, as well as for mining.  In addition, this partially fluorinated high-performance plastic is FM 4910 certified, non-toxic, and FDA compliant.

Injection Quills Hastelloy C-276 Check Valve

Hastelloy


Hastelloy® is a nickel-molybdenum alloy.  There are many different grades of Hastelloy®, many of which are nickel-chromium-molybdenum alloys.  Also, each of these grades has been optimized for a specific purpose, but all of them are highly resistant to corrosion.

Quill 45 degree ends

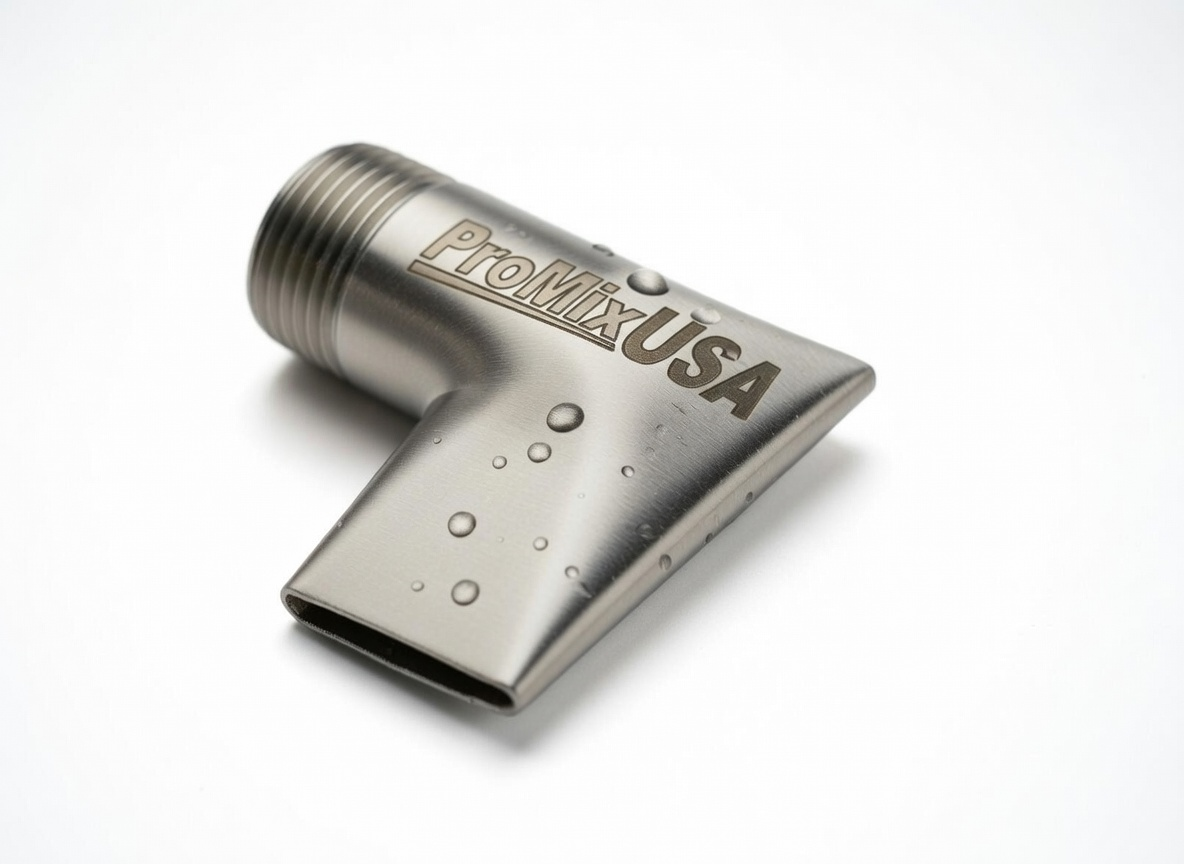

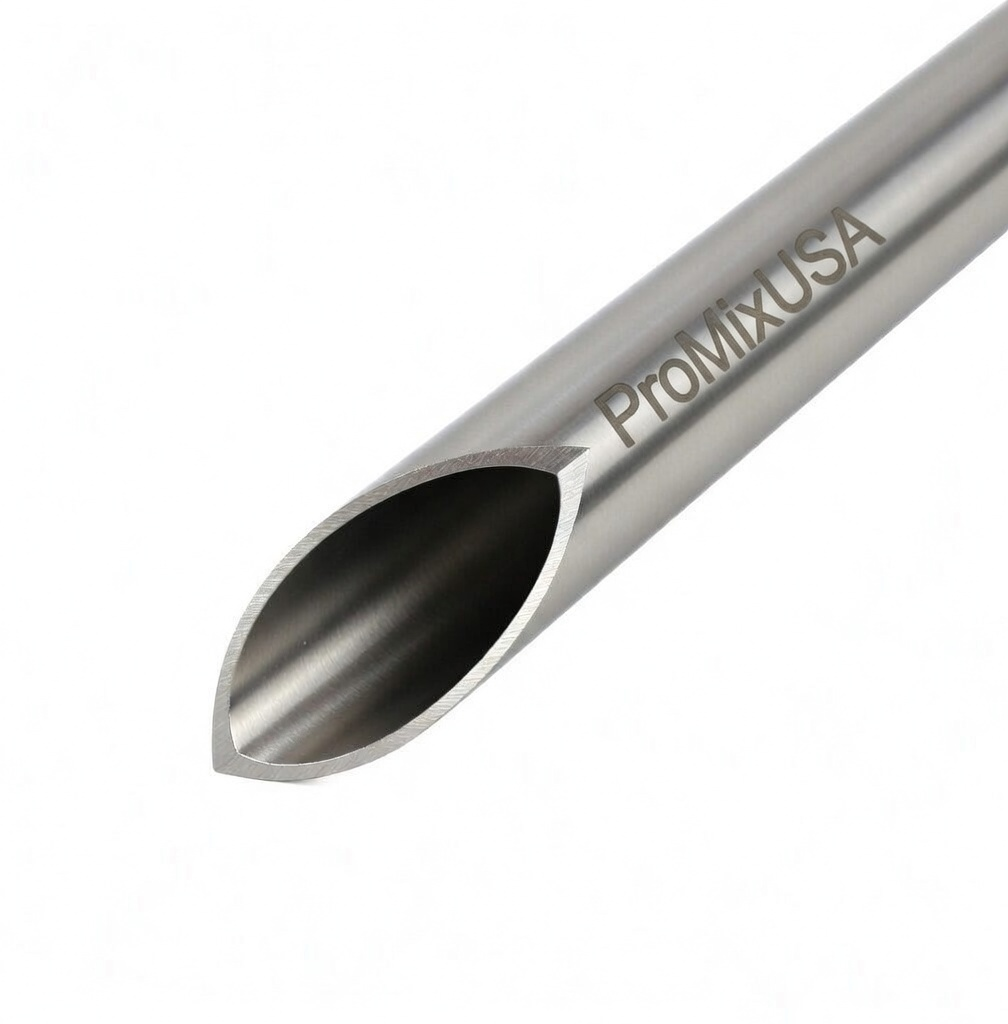

30° to 45° Nozzle

The quill tip often features a precision-machined nozzle or orifice to control the spray pattern (e.g., conical, fan-shaped, or jet). The 30-50° angle may refer to the spray cone angle or the physical tilt of the nozzle. The 30-50° angle minimizes backpressure and erosion on the pipe wall compared to higher-angle injections

Duck Bill Nozzle

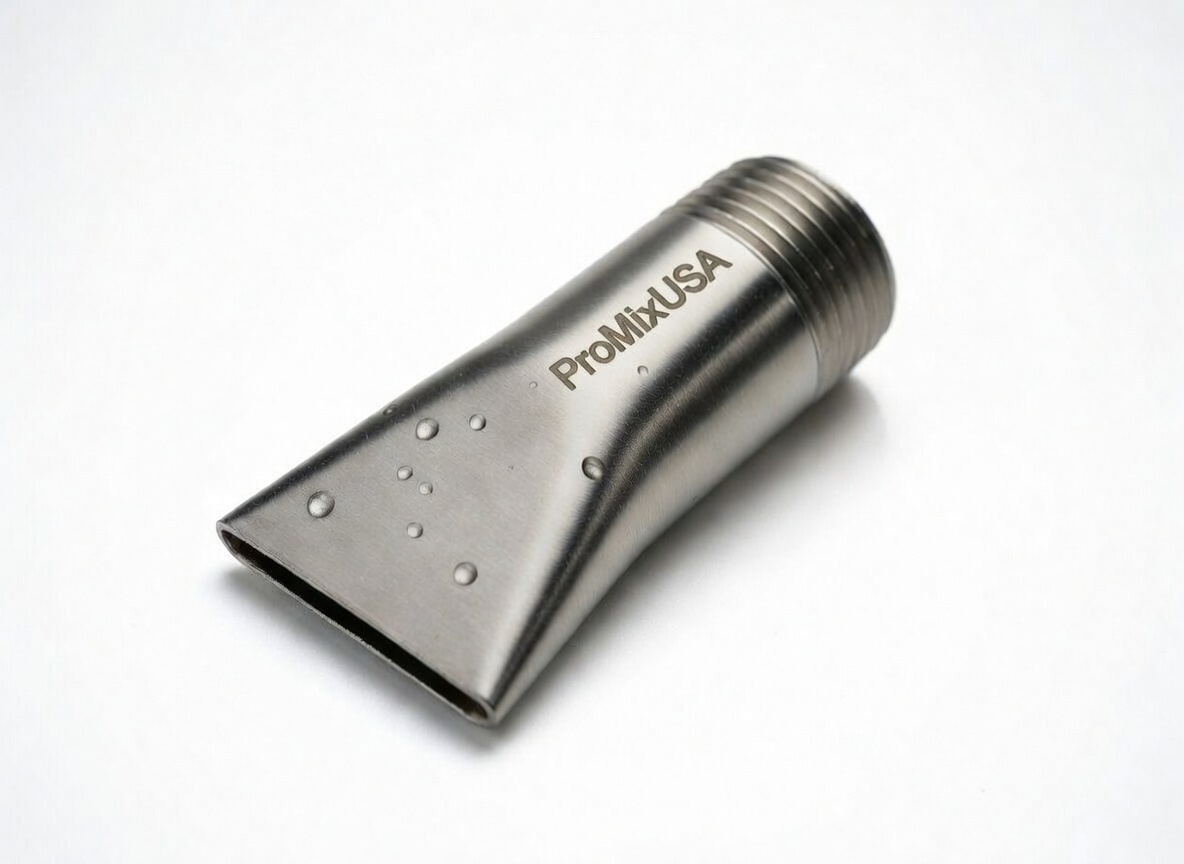

The duck bill end consists of a flattened, slit-shaped opening that creates a fan-shaped or wide spray pattern when fluid is injected. The duck bill’s geometry promotes a low-velocity, broad dispersion of the injected fluid, ideal for applications requiring even distribution without high turbulence

This is the heading

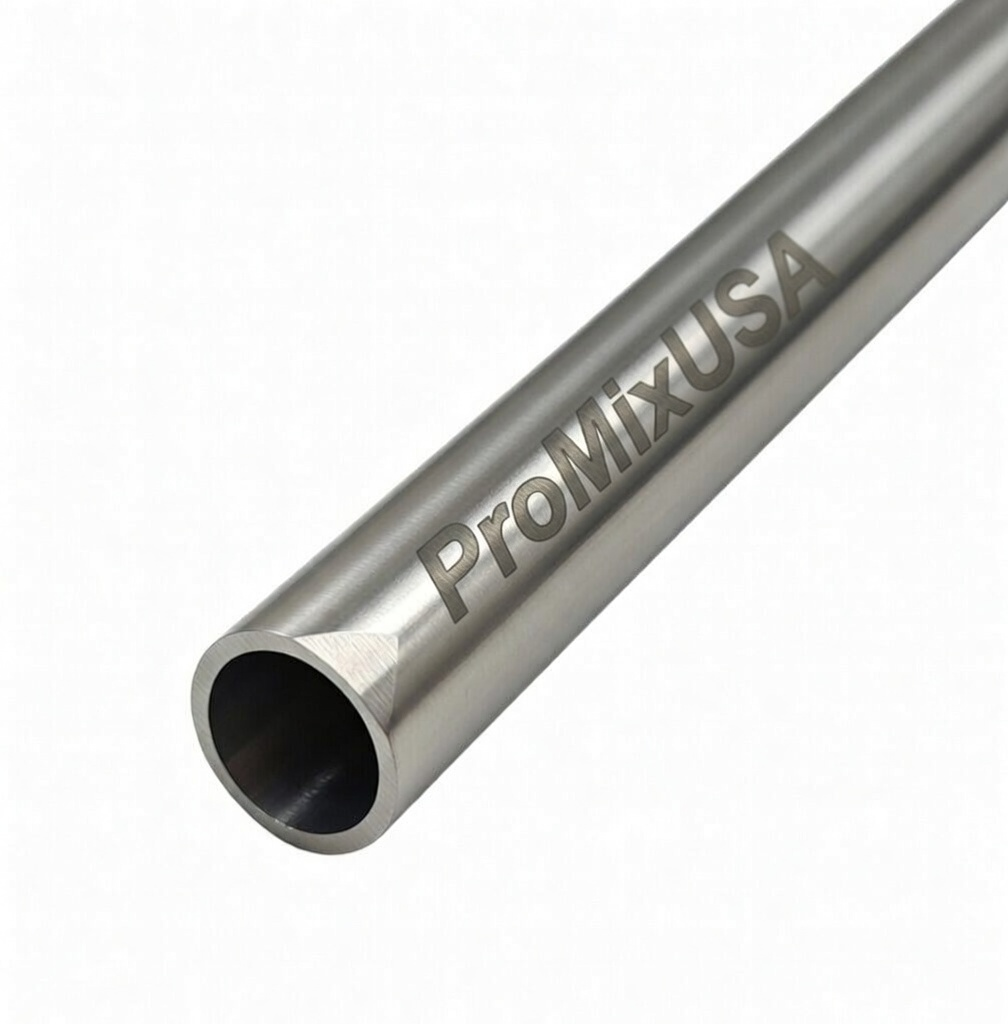

A simple, cylindrical tip with an open-ended orifice, typically a single hole or slot, for direct fluid injection. Straight-through flow with minimal obstruction. General-purpose chemical injection (e.g., corrosion inhibitors in oil/gas pipelines). Suitable for high-pressure systems
