Static Mixer Skid System
A Static Mixer Skid System is a sophisticated piece of equipment that plays a crucial role in mixing applications across various industries. Also, this system consists of several components working together to efficiently blend. Finally, they will blend different substances or materials to achieve a homogeneous mixture.
Heart of the System
In a typical static mixer skid system, the static mixer is mounted on a skid along with other necessary components to create a complete mixing solution. These components may include pumps, valves, instruments, and control systems. Finally, let’s delve into the details of each component:
Components
Static Mixer:
Pumps:

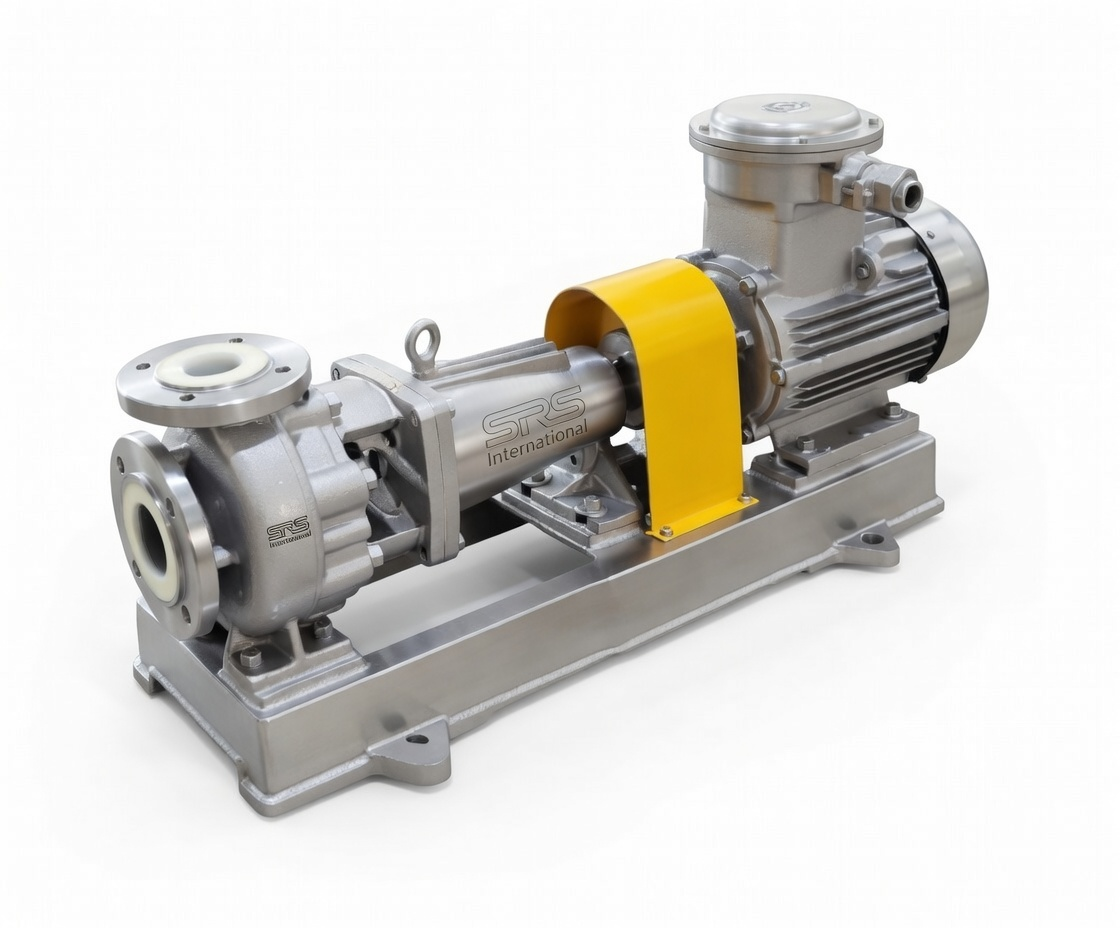

Pumps are used to control the flow rate of the materials being mixed. In addition, depending on the requirements of the application, different types of pumps may be used. In addition, the items that may be used are centrifugal pumps or positive displacement pumps. Finally, the pumps ensure a consistent flow of materials into the static mixer for efficient mixing.
Piping Related
Valves:
Valves are essential for regulating the flow of materials within the system. They allow for precise control over the flow rates and pressure. Also, they may dictate the direction of the substances being mixed. In addition, different types of valves, such as ball valves and gate valves may be used. Also, butterfly valves may be incorporated. Moreover, all of these may be incorporated into the static mixer skid system.
Instruments:
Various instruments are integrated into the system to monitor and control the mixing process. Also, these instruments may include flow meters and pressure gauges. In addition, temperature sensors, and level indicators may be incorporated. Finally, they provide real-time data on the operating conditions of the system, allowing for adjustments to be made as needed.
Other Items on the Static Mixer Skid System
Control Systems:
Control systems are used to automate the mixing process and ensure optimal performance of the static mixer skid system. Moreover, these systems may include programmable logic controllers (PLCs) and human-machine interfaces (HMIs). Finally, it may also include software for monitoring and controlling the mixing parameters.
Piping and Tubing:

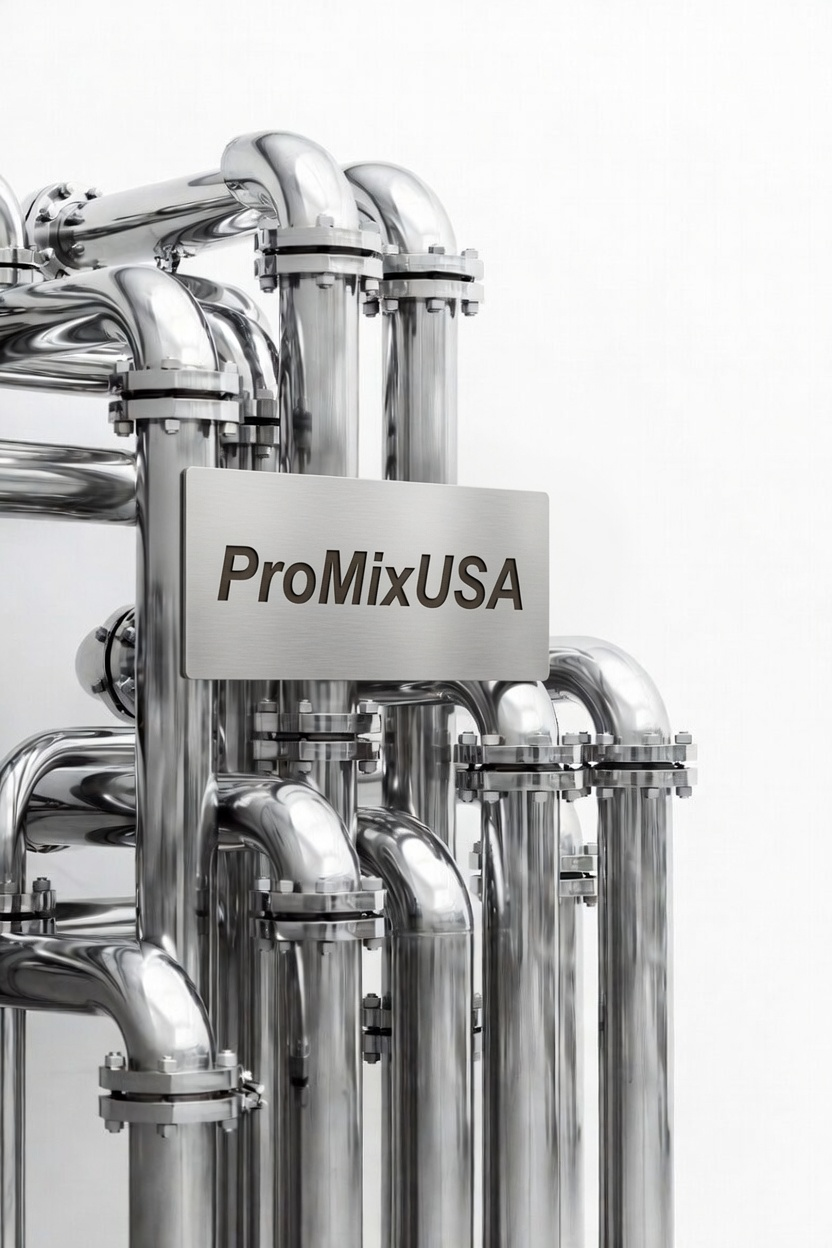

The static mixer skid system incorporates a network of piping and tubing to transport the materials. Furthermore, they will be transported to and from the static mixer. Also, the layout and design of the piping system are important to ensure smooth flow and proper mixing of the substances.
Structure and Safety
Safety Systems:
The safety features of the Static Mixer Skid System are pressure relief valves. Also, we have emergency stop buttons, and alarms may be included in the static mixer skid system to ensure safe operation and prevent accidents.
Overall, a Static Mixer Skid System is a sophisticated and versatile mixing solution. It is a solution that offers efficient blending of fluids or gases. Furthermore, it blends it in various industrial processes. In addition, its carefully designed components work in harmony. Finally, this harmony will achieve consistent and reliable mixing results.
Typically, Include
A Complete skid Mounted Static Mixing Systems are designed to meet the needs of each user and typically include:
- Portable skids on caster wheels
- Helical or Blade Type Static Mixers Available.
- Pumps to suit that allow for the pressure drop and viscosity of the fluids to be mixed
- Materials of construction to suit individual process needs. Also, materials for corrosive environments.
- Controls including Touchscreen control, on-off pushbuttons and flow meters to measure accurate injection. In addition, Injection quills to display fluids evenly and, variable speed and ratio controls
Features
The available mixer designs include, a low-pressure model typically used for low viscosity turbulent flow. Also, this type of turbulence is for mixing of fluids and for gas-liquid mixing. Also, this design is offered in many materials of construction and to any “inch” diameter that is required. Furthermore, these mixers are easily customized to include special injection feed nozzles and side Entry injectors. Finally, the use of this is for minor or major, difficult product streams.
Our designs specially machined elements with passageways that guarantee the mixing of any pumpable material. After passing through various length elements the ProMixUSA systems are stackable in any quantity. Additionally, this is to provide mixing quality as needed in the process. The systems are supplied in a range of cast or machined materials to suit the application through any needed diameter.
Advantages
Efficient Mixing: Static mixers offer efficient mixing of fluids or gases without the need for moving parts. This results in a consistent and homogeneous mixture.
Low Maintenance: Since static mixers have no moving parts, they require minimal maintenance. Additionally, this is compared to traditional mixers, reducing downtime and maintenance costs.
Compact Design: The skid-mounted design of the system makes it space-saving and easy to install, especially in areas with limited space.
Energy Efficiency: Static mixers typically require lower energy consumption compared to dynamic mixers, making them more environmentally friendly and cost-effective.
Versatility: Static mixers can handle a wide range of flow rates, viscosities, and mixing requirements, making them suitable for various industries and applications.
Disadvantages
Initial Cost: The upfront cost of purchasing and installing a static mixer skid system may be higher than traditional mixing systems, which can be a barrier for some users.
Limited Scalability: Static mixers are often designed for specific flow rates and mixing applications, which may limit their scalability for larger or more complex operations.
Clogging Risk: Depending on the nature of the materials being mixed, static mixers may be prone to clogging, which can affect the efficiency of the mixing process and require maintenance.
Limited Mixing Intensity: While static mixers are effective for many blending applications, they may not be suitable for processes that require intense agitation or shear forces for mixing.
Design Limitations: The design of static mixers may be limited by factors such as pressure drop, mixing efficiency, and material compatibility, which can impact their performance in certain applications.
Overall, while a Static Mixer Skid System offers numerous advantages in terms of efficiency, compact design, and low maintenance, it is important to consider the specific requirements of the application to determine if the system is the most suitable mixing solution.
Q: What is a Static Mixer Skid System?
A: A Static Mixer Skid System is a specialized mixing system that combines a static mixer with auxiliary components on a skid for efficient blending of fluids or gases.
Q: How does a static mixer work?
A: A static mixer operates on the principle of stationary mixing elements within a housing, creating turbulence to blend materials as they pass through without any moving parts.
Q: What industries commonly use Static Mixer Skid Systems?
A: Static Mixer Skid Systems are used in various industries such as chemical processing, water treatment, food and beverage production, pharmaceutical manufacturing, and energy production.
Q: What are the advantages of using a Static Mixer Skid System?
A: Advantages include efficient mixing, low maintenance, compact design, energy efficiency, and versatility in handling different flow rates and viscosities.
More Q&A
Q: Are there any disadvantages to using a Static Mixer Skid System?
A: Some disadvantages include initial cost, limited scalability for larger operations, potential risk of clogging, limited mixing intensity compared to dynamic mixers, and design limitations based on specific applications.
Q: How important are safety features in a Static Mixer Skid System?
A: Safety features such as pressure relief valves, emergency stop buttons, and alarms are crucial to ensure safe operation, prevent accidents, and protect personnel and equipment.
Q: Can Static Mixer Skid Systems be customized for specific applications?
A: Yes, Static Mixer Skid Systems can be customized to meet the unique requirements of different mixing applications, including specific flow rates, materials, and mixing intensities.
Q: What maintenance is required for a Static Mixer Skid System?
A: Static mixers require minimal maintenance due to their simple design with no moving parts. Regular cleaning and inspection of the system components are typically sufficient to ensure optimal performance.
Installing a Static Mixer Skid System requires careful planning and execution to ensure optimal performance and safety. Below are general installation procedures for setting up a Static Mixer Skid System:
Site Assessment:
Evaluate the installation site to ensure it meets the requirements for space, accessibility, ventilation, and utilities such as power and water supply.
Foundation Preparation:
Prepare a stable and level foundation to support the weight of the skid and components. Ensure the foundation is capable of withstanding the operating loads and vibrations of the system.
Unpacking and Inspection:
Unpack the Static Mixer Skid System components and inspect them for any damage that may have occurred during transportation. Verify that all necessary parts and accessories are included.
Positioning the Skid:
Position the skid in the designated installation location using appropriate lifting equipment. Ensure there is ample space around the skid for maintenance access and operation.
Connecting Utilities:
Connect the necessary utilities such as electrical power, water supply, and compressed air to the system components, following the provided specifications and safety guidelines.
Mounting the Static Mixer:
Securely mount the static mixer on the skid frame according to the manufacturer’s recommendations, ensuring proper alignment and support to prevent vibrations during operation.
Additional Installation
Piping and Tubing Installation:
Install the inlet and outlet piping, as well as any necessary tubing, connecting the static mixer to the feed sources and discharge points. Use appropriate fittings and materials compatible with the substances being mixed.
Instrumentation and Controls:
Install the instruments, control systems, and monitoring devices on the skid as per the provided schematics. Connect and calibrate the sensors, valves, and controllers to ensure accurate operation.
Safety Features Installation:
Install and test safety features such as pressure relief valves, emergency stop buttons, and alarms to ensure compliance with safety regulations and protect personnel and equipment.
Final Checks and Testing:
Conduct a thorough inspection of the entire system to verify proper installation and connections. Test the system by running it through a simulated operation to check for leaks, malfunctions, or inefficiencies.
Training and Documentation:
Provide training to operators and maintenance personnel on the operation, maintenance, and safety procedures of the Static Mixer Skid System. Ensure all installation and operation manuals are readily available for reference.
Following these installation procedures can help ensure a smooth and successful setup of a Static Mixer Skid System, leading to efficient mixing operations and reliable performance in various industrial applications.
Chemical Processing: Static Mixer Skid Systems are widely used in the chemical industry for blending and reacting different chemicals to produce compounds or solutions with precise specifications.
Water and Wastewater Treatment: These systems are employed for mixing chemicals, disinfectants, or coagulants with water or wastewater to facilitate processes such as flocculation, pH adjustment, and disinfection.
Food and Beverage Production: Static Mixer Skid Systems help in mixing ingredients, flavors, and additives in food and beverage processing, ensuring uniformity and consistency in the final products.
Pharmaceutical Manufacturing: These systems are utilized for blending pharmaceutical ingredients, creating emulsions, suspensions, or solutions required in drug manufacturing processes.
Pulp and Paper Industry: Static Mixer Skid Systems are used for mixing additives, bleaching agents, and dyes in pulp and paper production to enhance the quality and properties of the paper products.
Oil and Gas Industry: In oil refineries and petrochemical plants, these systems are employed for blending fuel additives, catalysts, and other chemicals to optimize production processes.
More Industries
Biotechnology and Healthcare: Static Mixer Skid Systems play a role in bioreactors, pharmaceutical research, and bioprocessing for mixing cell cultures, nutrients, and biopharmaceuticals.
Mining and Minerals Processing: These systems help in mixing reagents, flocculants, or polymers in mineral processing operations for extracting desired minerals from ores.
Environmental Remediation: Static Mixer Skid Systems are used in environmental cleanup efforts, such as mixing remediation agents with contaminated soil or water to treat pollutants.
Detergent and Cleaning Product Manufacturing: In the household and industrial cleaning product industry, these systems assist in blending surfactants, fragrances, and additives for fabric softeners, detergents, and more.
The versatility and efficiency of Static Mixer Skid Systems make them indispensable in a wide range of industries for various mixing applications, contributing to improved product quality, process efficiency, and cost-effectiveness.
