Special Tank Mixers

Specialty Tank Mixers are high-performance agitation systems designed for industrial tanks.
They include top-entry, side-entry, and magnetic drive configurations to handle everything from simple blending to complex high-viscosity or hazardous material mixing.

What Are Specialty Tank Mixers?

These mixers use fixed impellers (hydrofoil, pitched blade, anchor, etc.) mounted on a shaft to create the required flow patterns inside the tank.
They are engineered for tanks ranging from a few hundred liters to over 500,000 liters and can handle viscosities from water-like fluids up to 100,000+ cP.

Specialty Tank Mixers are the reliable choice for chemical processing, pharmaceutical, oil & gas, food & beverage, water treatment, and many other industries where consistent mixing performance is essential.

SKU: 330502 Categories: , Tags: , , , , , , , , , Brand:

ProMixUSA designs and manufactures high-performance Specialty Tank Mixers for the most demanding mixing applications across multiple industries.

What Are Specialty Tank Mixers?

Specialty Tank Mixers are custom-engineered agitation systems built for unique and challenging process requirements that standard mixers cannot handle effectively.
They are ideal for high-viscosity fluids, shear-sensitive materials, sanitary processes, hazardous environments, and extreme operating conditions.

Key Features & Benefits

From simple blending to complex multi-phase reactions, ProMixUSA Specialty Tank Mixers deliver consistent, reliable performance tailored to your exact process needs.

Custom Solutions • Engineered Performance • Proven Reliability

Feature Benefit
Custom Engineering Tailored to your exact tank size, fluid properties, and process goals
Multiple Drive Options Direct drive, gear drive, belt drive, and high-torque configurations
Sanitary & Hygienic Designs 3-A, EHEDG, and FDA-compliant options for food, beverage, and pharmaceutical use
High Viscosity Capability Handles fluids from water-like to heavy pastes and gels
Hazardous Area Rated ATEX, NEC, and IECEx certified motors for flammable environments

Specifications

Specialty Tank Mixers are engineered agitation systems designed for demanding industrial mixing applications.
They include top-entry, side-entry, and magnetic drive configurations, each optimized for specific tank sizes, viscosities, and process requirements.

Detailed Specifications – Specialty Tank Mixers

Parameter Specification Notes / Options
Mixer Types Top Entry, Side Entry, Magnetic Drive (Sealless) Top entry most common; magnetic drive for hazardous/high-purity
Power Range 0.25 HP to 250 HP (0.18 kW to 185 kW) Magnetic drive typically limited to 0.5–15 HP
Impeller Types Hydrofoil (high efficiency), Pitched Blade Turbine, Rushton Turbine, Anchor, Propeller, Custom Hydrofoil for low viscosity; Anchor for high viscosity
Tank Size Range 100 liters to 500,000+ liters Side entry preferred for very large tanks
Viscosity Range 1 cP to 100,000+ cP Higher viscosities require larger power or special impellers
Mounting Options Flanged (ANSI/DIN), Tri-Clamp, Plate Mount, Side Entry Nozzle Magnetic drive uses sealed containment can
Sealing Systems Mechanical Seal, Stuffing Box, Magnetic Drive (Sealless) Magnetic drive offers zero leakage for hazardous fluids
Speed Range 50 – 1750 RPM (VFD recommended) Variable speed for different batch viscosities
Materials of Construction 316L Stainless Steel, Hastelloy C-276, Titanium, Duplex, Carbon Steel with coatings Wetted parts selected for chemical compatibility
Standards Compliance ASME, ATEX, PED, 3-A, EHEDG, FDA/USP Class VI (on request) Explosion-proof motors available for hazardous areas
Typical Applications Blending, solids suspension, gas dispersion, heat transfer, emulsification, crystallization Chemical, pharmaceutical, food, water treatment, oil & gas

Specialty Tank Mixers are custom-engineered based on tank geometry, fluid properties (viscosity, specific gravity, rheology), mixing objectives, and operating conditions.
Impeller selection, power rating, sealing system, and mounting configuration are optimized to deliver the required process result with maximum energy efficiency.

From simple water treatment blending to complex high-viscosity pharmaceutical processes or hazardous chemical mixing, properly specified specialty tank mixers ensure consistent product quality, reduced batch times, and reliable long-term operation.

Power vs. Viscosity

Specialty Tank Mixers are engineered agitation systems designed for demanding industrial mixing applications.
They include top-entry, side-entry, and magnetic drive configurations, each optimized for specific tank sizes, viscosities, and process requirements.

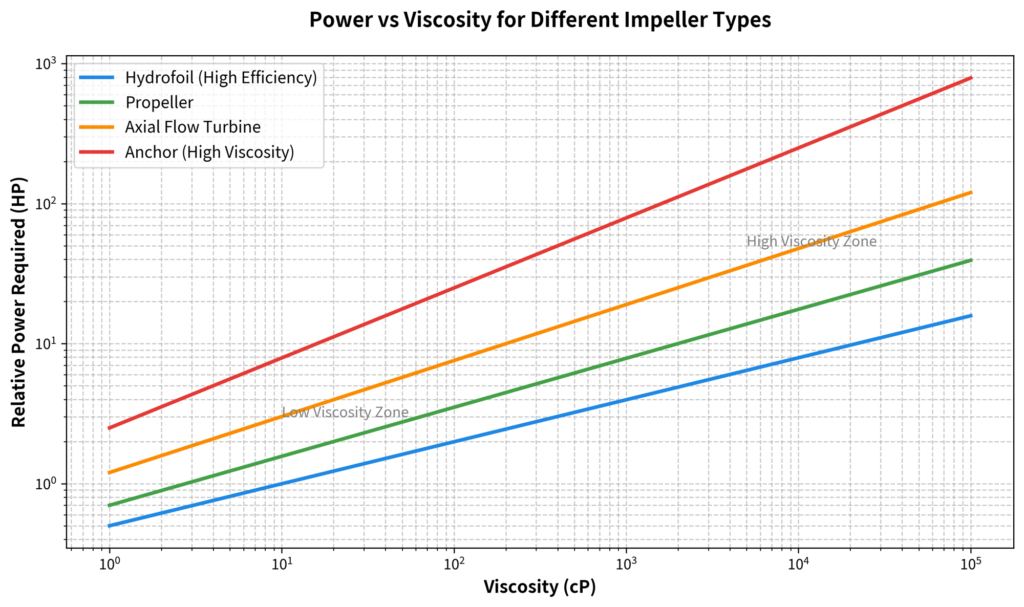

Power vs Viscosity Chart

This chart shows how required mixer power increases with fluid viscosity for different impeller types.

Key Insights:

  • Low viscosity fluids need very little power.
  • Power demand rises sharply above 1,000 cP.
  • High-shear impellers require significantly more power in viscous fluids.

Detailed Specifications – Specialty Tank Mixers

Parameter Specification Notes / Options
Mixer Types Top Entry, Side Entry, Magnetic Drive (Sealless) Top entry most common; magnetic drive for hazardous/high-purity
Power Range 0.25 HP to 250 HP (0.18 kW to 185 kW) Magnetic drive typically limited to 0.5–15 HP
Impeller Types Hydrofoil (high efficiency), Pitched Blade Turbine, Rushton Turbine, Anchor, Propeller, Custom Hydrofoil for low viscosity; Anchor for high viscosity
Viscosity Range 1 cP to 100,000+ cP Higher viscosities require larger power or special impellers

Specialty Tank Mixers are custom-engineered based on tank geometry, fluid properties, and mixing objectives.

Installation Procedures

Proper installation of Specialty Tank Mixers is critical for safe operation, optimal mixing performance, and long equipment life.
Procedures vary depending on the mixer type: Top Entry, Side Entry, or Magnetic Drive.

Installation Procedures for Specialty Tank Mixers

Step Installation Procedure Tools / Materials Required Safety & Important Notes
1 Review the mixer orientation and flow direction (especially important for side-entry and magnetic drive models). Verify the impeller type and mounting configuration match the tank design. Installation drawings and manual Incorrect orientation can cause poor mixing or mechanical damage.
2 Ensure the tank is empty, isolated, depressurized, and properly locked out/tagged out (LOTO). For top-entry mixers, confirm the tank roof or support structure can safely handle the mixer weight and dynamic loads. Lockout/Tagout kit, lifting equipment Never install while the tank contains hazardous materials or is pressurized.
3 For Top Entry: Use a crane or hoist to lower the mixer assembly onto the tank flange. Align bolt holes carefully. For Side Entry: Install through the side nozzle using proper rigging to avoid damaging the shaft or seal. Crane/hoist, alignment tools, torque wrench Use certified lifting points. Magnetic drive units are especially sensitive to misalignment.
4 Install new, compatible gaskets and tighten flange bolts in a criss-cross pattern to the manufacturer’s specified torque values. For magnetic drive mixers, ensure proper alignment of the outer and inner magnet assemblies. New gaskets, calibrated torque wrench Over-torquing can damage gaskets or distort the mounting flange.
5 Install proper supports, bracing, and vibration dampeners. For side-entry mixers, ensure the shaft is properly aligned and the seal housing is accessible for future maintenance. Pipe supports, shims, vibration pads Heavy mixers and dynamic loads require robust structural support to prevent fatigue.
6 For Magnetic Drive Mixers: Verify the alignment of the drive magnet and containment can. Perform a dry run (no fluid) to check for smooth rotation and unusual noise before filling the tank. Alignment tools, laser alignment kit (recommended) Misalignment is the leading cause of decoupling and bearing failure in magnetic drive units.
7 Fill the tank with process fluid gradually. Start the mixer at low speed (if VFD equipped) and monitor for vibration, noise, unusual power draw, and leaks. Gradually increase to operating speed. VFD controller, vibration meter, pressure gauges Monitor closely during initial startup to detect any installation issues early.
8 Document the installation: torque values, alignment readings, baseline vibration and power draw, serial number, and startup observations. Update the equipment maintenance log. Checklist, photos, torque logs Proper documentation supports warranty claims and future maintenance planning.

Important Notes for Specialty Tank Mixers:

• Always follow the manufacturer’s specific installation manual for your mixer model.
• Proper alignment is critical — especially for side-entry and magnetic drive mixers.
• Use certified lifting equipment and follow safe rigging practices for heavy units.
• Magnetic drive mixers require precise magnet coupling alignment to prevent decoupling.
• After installation, perform a no-load and loaded test run before full production use.
• VFDs (Variable Frequency Drives) are strongly recommended for flexibility and protection.

Correct installation ensures safe, efficient, and reliable long-term performance of your specialty tank mixer.

Maintenance Procedures

Specialty Tank Mixers are robust systems with no internal moving parts in the tank (except the impeller and shaft).
Regular, well-planned maintenance ensures long service life, prevents unexpected downtime, and maintains mixing efficiency and safety.

Maintenance Procedures for Specialty Tank Mixers

Maintenance Task Procedure & Frequency
Daily / Visual Inspection • Check for unusual noise, vibration, or leaks around the seal or mounting flange
• Monitor motor current draw and temperature (if equipped with sensors)
• Verify VFD parameters and any alarms
Weekly / Bi-Weekly • Inspect shaft for any visible runout or vibration
• Check oil level and condition in gearbox (top-entry models)
• Clean external surfaces and vents
Monthly / Quarterly • Measure and record vibration levels
• Check and re-torque all mounting bolts and foundation bolts
• Inspect mechanical seal or stuffing box for leakage (non-magnetic models)
• Verify impeller clearance and condition (during tank shutdown if possible)
Semi-Annual / Annual Major Service • Drain and replace gearbox oil (top-entry)
• Inspect and replace mechanical seals or packing as needed
• Check coupling alignment and condition
• For Magnetic Drive: Inspect containment can for wear or temperature history; check bearings and inner magnet assembly
Every 2–3 Years (or as needed) • Remove mixer for full inspection (during major tank shutdown)
• Inspect shaft, impeller, and keyways for wear or corrosion
• Perform non-destructive testing (NDT) on welds if in corrosive service
• Rebuild or replace bearings, seals, and worn components
After Process Change or Long Shutdown • Inspect for corrosion or residue buildup
• Verify alignment and re-grease bearings if applicable
• Run a test batch and monitor power draw and vibration

Important Notes for Specialty Tank Mixers:

• Magnetic Drive Mixers require very little routine maintenance (no mechanical seals), but the containment can and bearings should be monitored for temperature and wear.
• Top Entry mixers need regular gearbox oil changes and seal inspections.
• Side Entry mixers require easy access to the seal and shaft for maintenance without draining the entire tank.
• Always monitor vibration, noise, and power draw — these are the best early warning signs of problems.
• Use only manufacturer-approved lubricants and spare parts.
• Schedule major maintenance during planned tank shutdowns to minimize downtime.

Following a disciplined maintenance schedule will maximize the life and reliability of your specialty tank mixers while keeping operating costs under control.

Advantages / Disadvantages

Advantages Disadvantages
  • Wide range of configurations (top-entry, side-entry, magnetic drive) to suit any tank size and process
  • Excellent for viscosities from water-like (1 cP) to very high (100,000+ cP)
  • High efficiency impellers (especially hydrofoil) can significantly reduce energy consumption
  • Magnetic drive models provide zero leakage for hazardous, toxic, or high-purity fluids
  • Variable speed drives (VFD) allow optimization for different batch conditions
  • Proven long-term reliability in critical industries (chemical, pharmaceutical, oil & gas, food)
  • Can achieve multiple mixing objectives simultaneously (blending, solids suspension, gas dispersion, heat transfer)
  • Custom engineering available for unique tank geometries or difficult fluids
  • Higher initial cost compared to simple portable mixers
  • Power requirement increases significantly with viscosity
  • Magnetic drive models have torque limitations (typically max 15 HP before decoupling risk)
  • Top-entry mixers on large tanks require strong structural support and access platforms
  • Mechanical seals on sealed models require periodic maintenance and eventual replacement
  • Complex applications may need detailed engineering analysis and CFD simulation
  • Heavy gearboxes and large impellers make installation and maintenance more challenging

Note: Specialty Tank Mixers are highly versatile and reliable when properly selected and sized.
While they require higher upfront investment than simple mixers, they deliver superior performance, energy efficiency, and safety in demanding industrial processes.
Magnetic drive versions are especially valuable when zero leakage is critical.

Q&A

Question Answer
What are Specialty Tank Mixers? Specialty Tank Mixers are engineered agitation systems designed for industrial tanks. They include top-entry, side-entry, and magnetic drive configurations. They are used to blend, suspend solids, disperse gases, or transfer heat in tanks ranging from a few hundred liters to over 500,000 liters.
What are the main types of Specialty Tank Mixers? • Top Entry – Most common, mounted on the tank roof.
• Side Entry – Ideal for large storage tanks and crude oil blending.
• Magnetic Drive (Sealless) – Used for hazardous, toxic, or high-purity fluids where zero leakage is required.
When should I use a Magnetic Drive Mixer? Use magnetic drive mixers for toxic, flammable, high-purity, or expensive fluids where leakage from a mechanical seal would be dangerous or costly. They are common in pharmaceutical, chemical, and hazardous material processing.
How do I choose the right impeller? • Hydrofoil impellers for low-viscosity blending and high efficiency.
• Pitched blade turbines for medium viscosity and solids suspension.
• Anchor or helical ribbon impellers for high viscosity (>10,000 cP).
The choice depends on viscosity, mixing goal (blending, suspension, dispersion), and tank geometry.
What is the typical viscosity range? Specialty tank mixers can handle viscosities from 1 cP (water-like) up to 100,000+ cP. Low-viscosity applications use hydrofoil impellers; high-viscosity applications require larger power, slower speeds, or anchor-style impellers.
Do magnetic drive mixers have limitations? Yes. They have a torque limit due to the magnetic coupling. Exceeding this limit causes decoupling (slip). They are typically limited to 0.5–15 HP and perform best below 10,000 cP viscosity.
How important is a Variable Frequency Drive (VFD)? Highly recommended. A VFD allows you to adjust speed according to batch viscosity, optimize power consumption, reduce shear on sensitive products, and prevent motor overload during startup.
What maintenance do specialty tank mixers require? Top and side entry mixers require periodic mechanical seal or gearbox inspection. Magnetic drive mixers need very little maintenance (no seals), but the containment can should be monitored for temperature. Regular lubrication and vibration checks are standard for all types.

Note: Specialty Tank Mixers must be correctly sized based on tank geometry, fluid properties, and mixing objectives.
Proper impeller selection and power rating are critical for achieving the desired process result while minimizing energy consumption.

Applications

Specialty Tank Mixers are engineered agitation systems used across a wide range of industries to achieve blending, solids suspension, gas dispersion, heat transfer, and emulsification in tanks of all sizes.

Their versatility makes them essential for processes where consistent product quality and efficient mixing are critical.

Applications of Specialty Tank Mixers

Industry / Application Typical Processes Purpose & Benefits
Chemical Processing Acid dilution, solvent blending, polymerization, catalyst dispersion, pH adjustment, exothermic reactions Achieves uniform mixing and precise temperature control while handling corrosive and viscous fluids safely.
Pharmaceutical & Biotech Buffer preparation, API synthesis, media mixing, vaccine production, sterile blending, crystallization Delivers gentle yet thorough mixing with sanitary designs (electropolished, CIP/SIP capable) to meet strict regulatory standards.
Oil & Gas / Petrochemical Crude oil blending, fuel oil homogenization, sludge suspension, additive injection, desalter operations Side-entry mixers are particularly effective for large storage tanks, preventing stratification and maintaining homogeneity.
Food & Beverage Syrup blending, sauce emulsification, dairy standardization, flavor mixing, fermentation tanks Ensures consistent texture and flavor while meeting hygienic design standards (3-A, EHEDG).
Water & Wastewater Treatment Flocculation, coagulation, polymer activation, sludge suspension, chemical dosing, equalization tanks Provides effective solids suspension and uniform chemical distribution with energy-efficient designs.
Power Generation Limestone slurry mixing (FGD), cooling tower water treatment, ash slurry suspension, boiler feedwater conditioning Handles abrasive slurries and maintains uniform mixing in large tanks with high reliability.
Pulp & Paper Bleach mixing, stock preparation, black liquor processing, additive dispersion Withstands aggressive chemicals and high-temperature processes common in pulp production.

Specialty Tank Mixers are particularly valuable when:

  • Handling a wide range of viscosities in the same tank (batch-to-batch variation)
  • High-purity or hazardous materials require zero leakage (magnetic drive)
  • Large storage tanks need continuous agitation to prevent stratification
  • Energy efficiency and reduced mixing time are priorities
  • Strict hygienic or regulatory standards must be met (pharma, food, biotech)

From simple water treatment blending to complex pharmaceutical syntheses or large-scale crude oil homogenization, properly designed specialty tank mixers ensure consistent product quality, improved process efficiency, and reliable long-term operation.
