Static Mixer Products

Optimized & Industry-ready Solutions

For All Your Complicated Static Mixer Products needs

We build Inline Static Mixer Products specifically for your mixing needs and requirements.

ProMixUSA Static Mixer Products are highly engineered mixing devices that allow for the inline continuous blending of fluids within a pipeline.   Additionally, the Static Mixers are with no moving parts, static mixers utilize the energy of the flow stream to generate consistent, cost-effective, and reliable mixing.  Furthermore, ProMixUSA static mixers are available in-stock for direct purchase or custom to meet your specific mixer requirements.  Finally, meeting a range of flow rates for a variety of applications, ProMixUSA static inline mixers are the reliable, durable, and efficient solution to your continuous mixing requirements.

Industry Focused Mixing Technologies

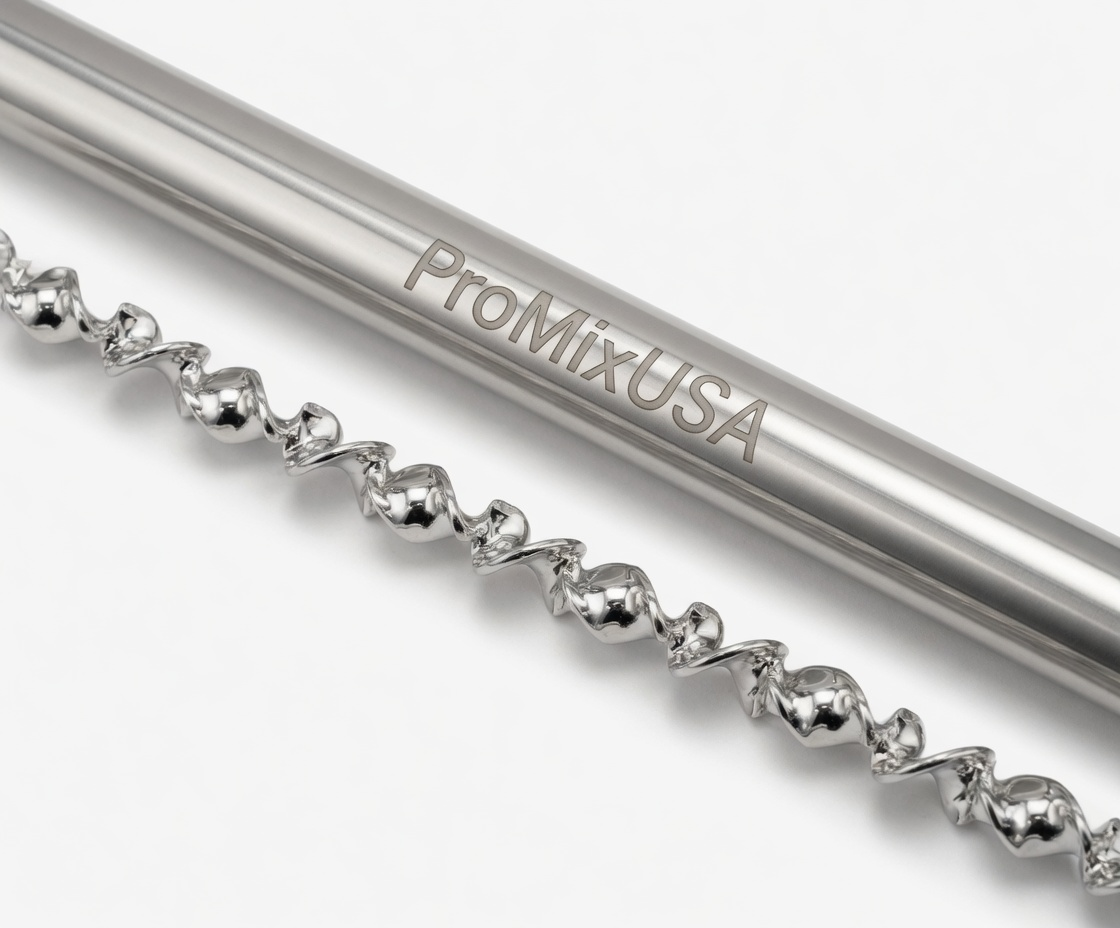

Nylon helical static mixer elements and Products

Helical Mixers

Helical static mixers are perfect for operation in laminar flow regimes such as slow moving or viscous streams. In addition, by continually dividing and recombining flow streams, our helical mixers are capable of optimally blending in a variety of difficult flow conditions.

Stainless static blade mixer elements and Products

Blade Mixers

Blade style element static mixers provides efficient mixing ability for turbulent flow applications combined with minimal pressure (head) loss.  Finally, our Blade elements are available in multiple configurations for specialized, demanding mixing applications.

NPT Blade Static Mixer ProMixUSA

Non-Fouling Mixers

Our non-clog (sludge) mixing elements are based on either our Blade or Helical mixing elements and are designed to eliminate clogging or plugging.  Finally, non-clog elements are available in fixed or removable configurations.

Packed static Mixer element and products

Packed Mixers

For space-constrained, turbulent-flow applications, our wafer static mixers provide an economical and space-efficient design.

Connection Ends

Triclamp Ends

Tri-Clamp

Tri-Clamp ends are a non-permanent piping connection method commonly used in sanitary applications such as food processing and are joined using C-shaped clamps. Finally, Tri-Clamp ends feature grooved indentations on the flange face which mate with a sealing gasket.

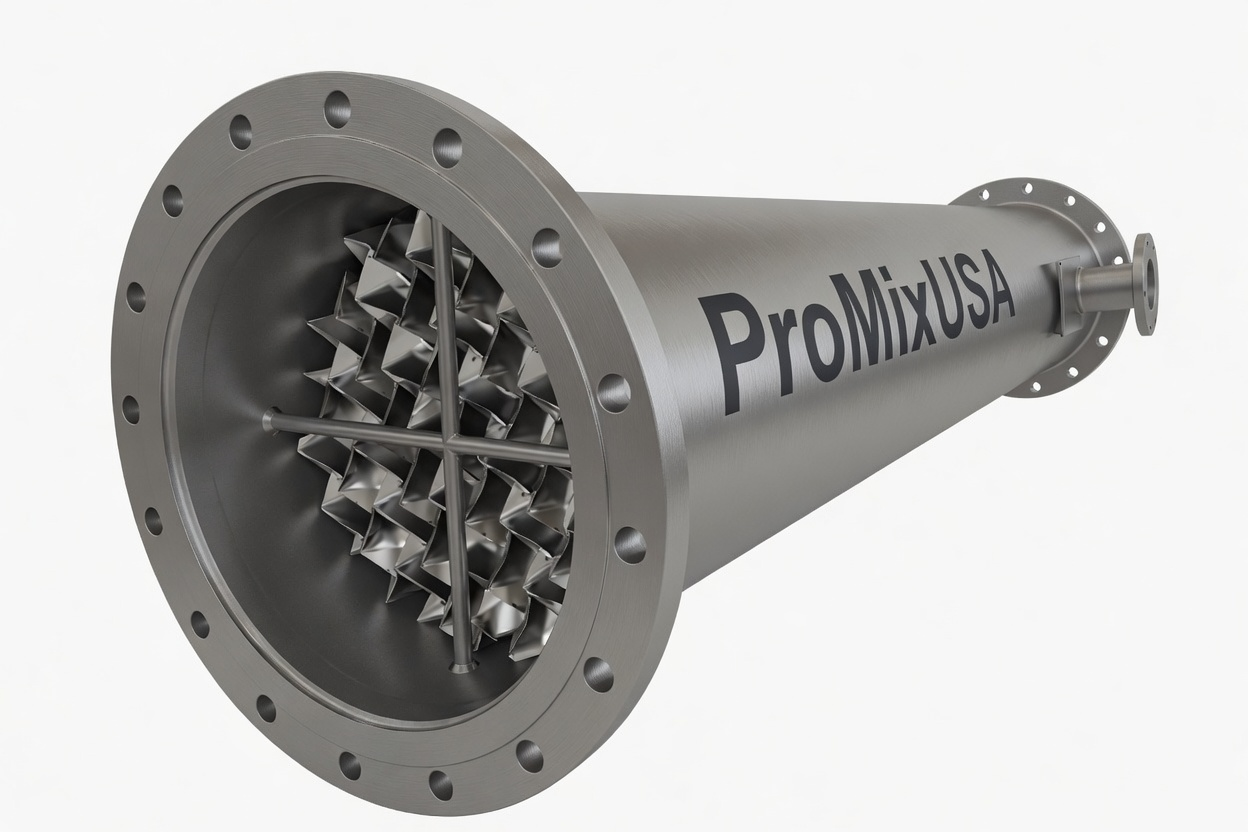

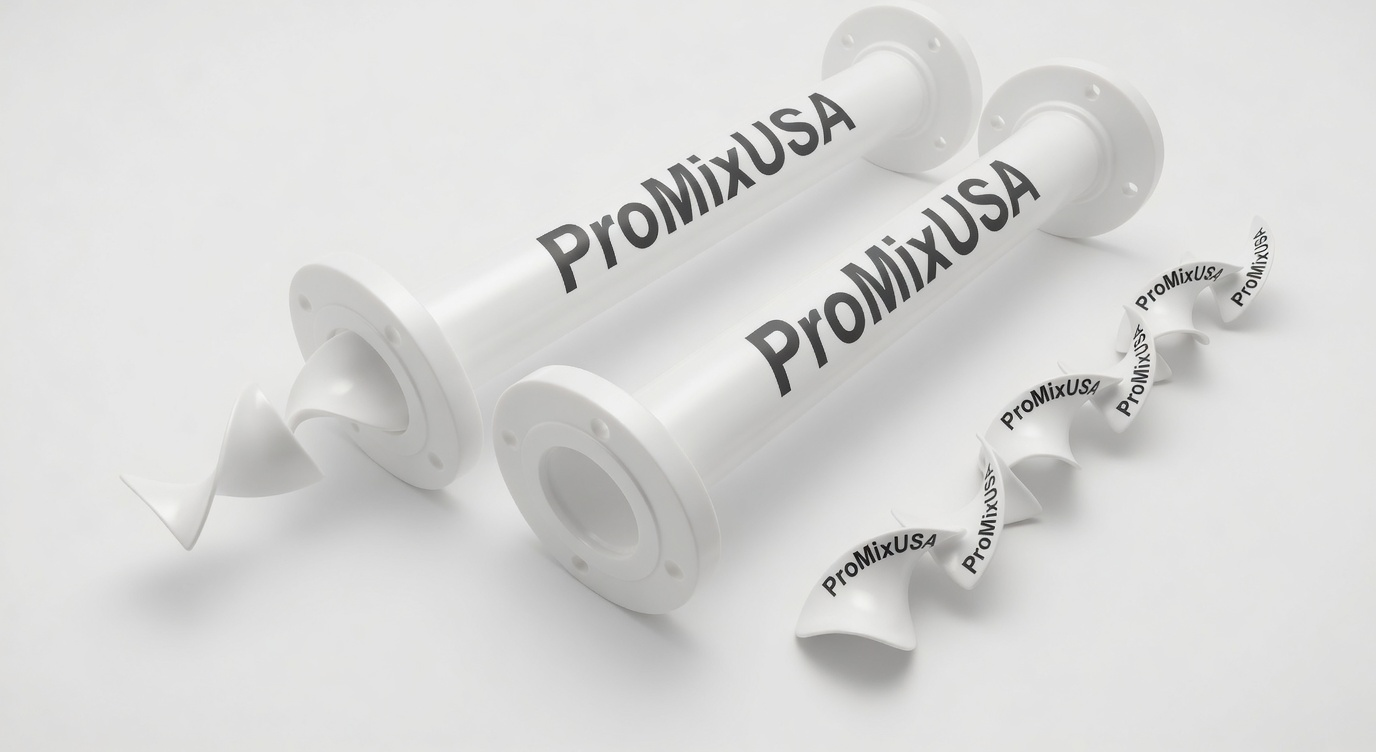

Flanged Ends

Flanged

Flanged end connections provide easy assembly and disassembly in piping systems. Furthermore, for stainless / alloy static mixers with flanged end configurations, we offer Class 150 raised face flanged ends as standard. All standard flange dimensions conform to ASME B16.5 standards.

Union Connection Type

Union

A sealing ring G is used for sealing the pipe fitting; If a complete connection is ordered on a housing pipe end, the male end is welded onto the housing. Also, the groove flange contains the sealing ring G. Finally, the liner contains the groove nut.

hygienic flanged end

Hygienic

An O-ring is used for sealing the flange connection and is given a defined compression by a metal stop. Additionally, the O-ring is also protected by the special geometry of the recess from being pulled out at high flow rates.

Types of Finishes

Static Mixer finish

2B Finish:  Cold Rolled, Annealed & Pickled.  As this steel is cold-rolled rather than hot-rolled, the surface finish is more refined.

Finish is characterized by short, parallel polishing lines extending uniformly along the length of the coil. It is obtained by mechanically polishing.

8 Finish: is considered the industry standard for a highly reflective, mirror appearance.  In addition, this is achieved by directionally buffing with abrasive compounds in several stages, followed by buffing with a rouge compound.  The surface is completely free of grit lines, achieving the perfect mirror finish.
