Tank Mixer Mechanical Seals

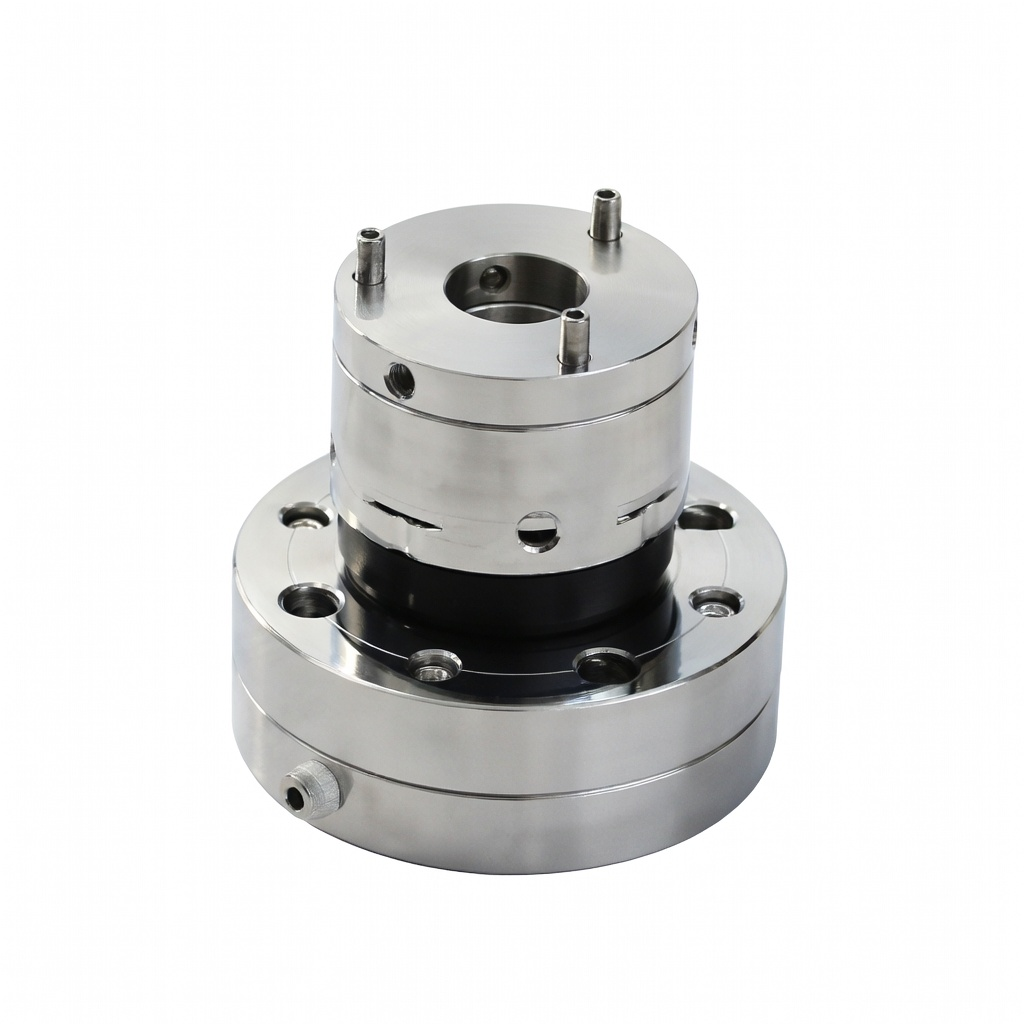

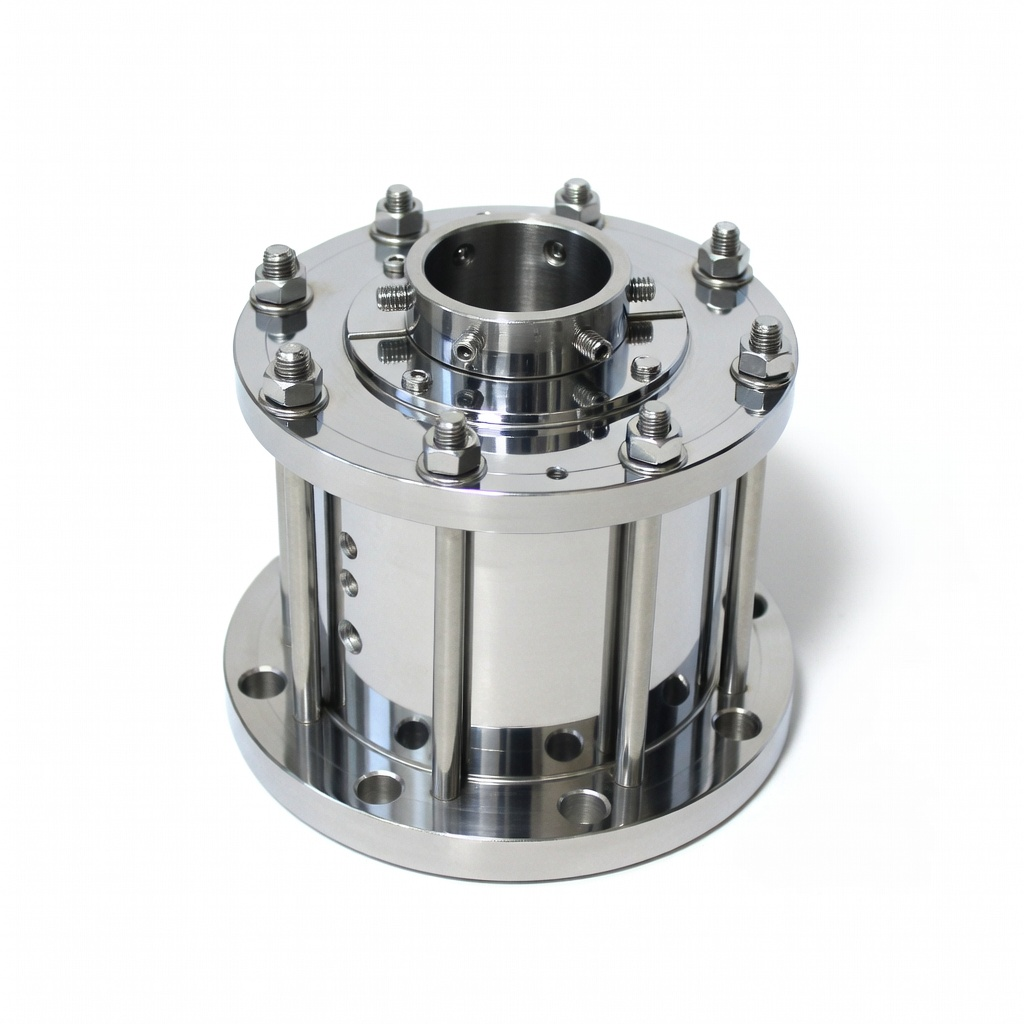

Single Face Mechanical Seal
Mechanical Seals for Tank Mixing

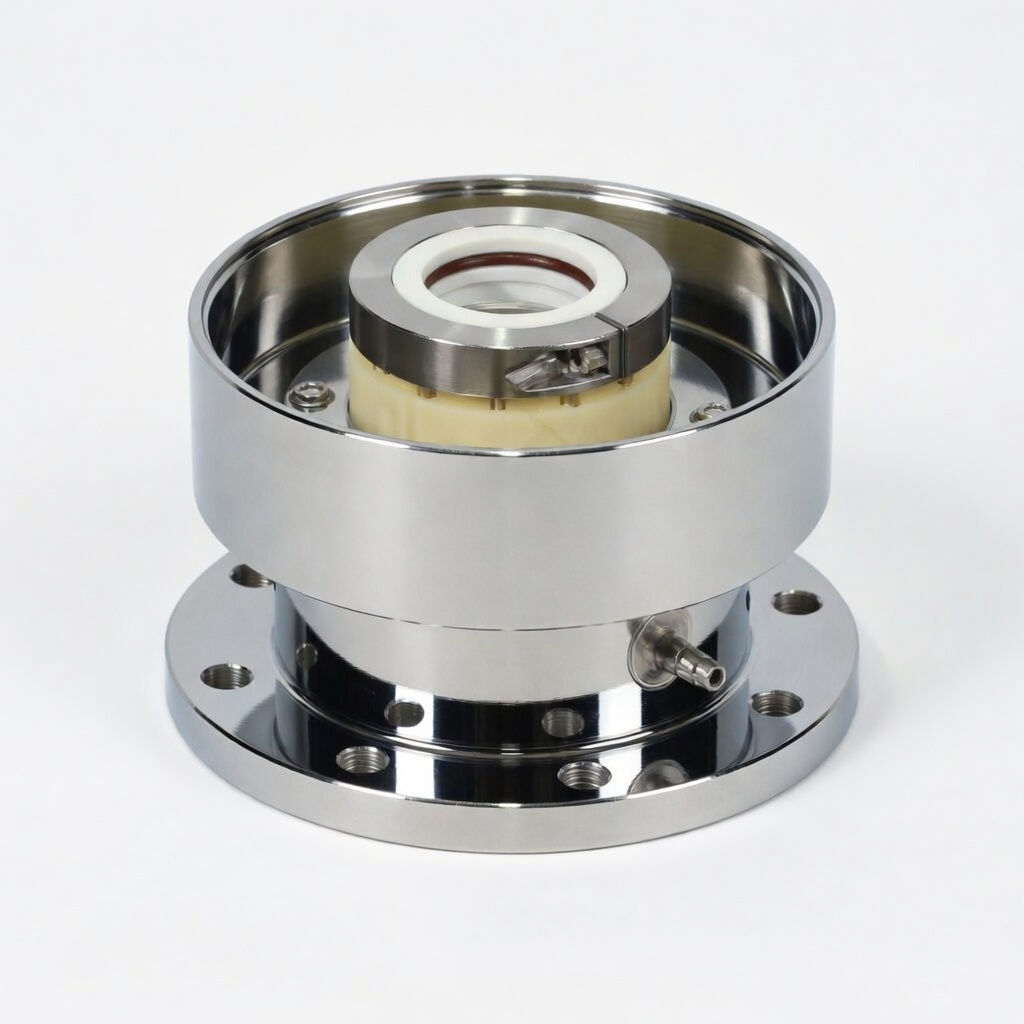

Single face mechanical seal

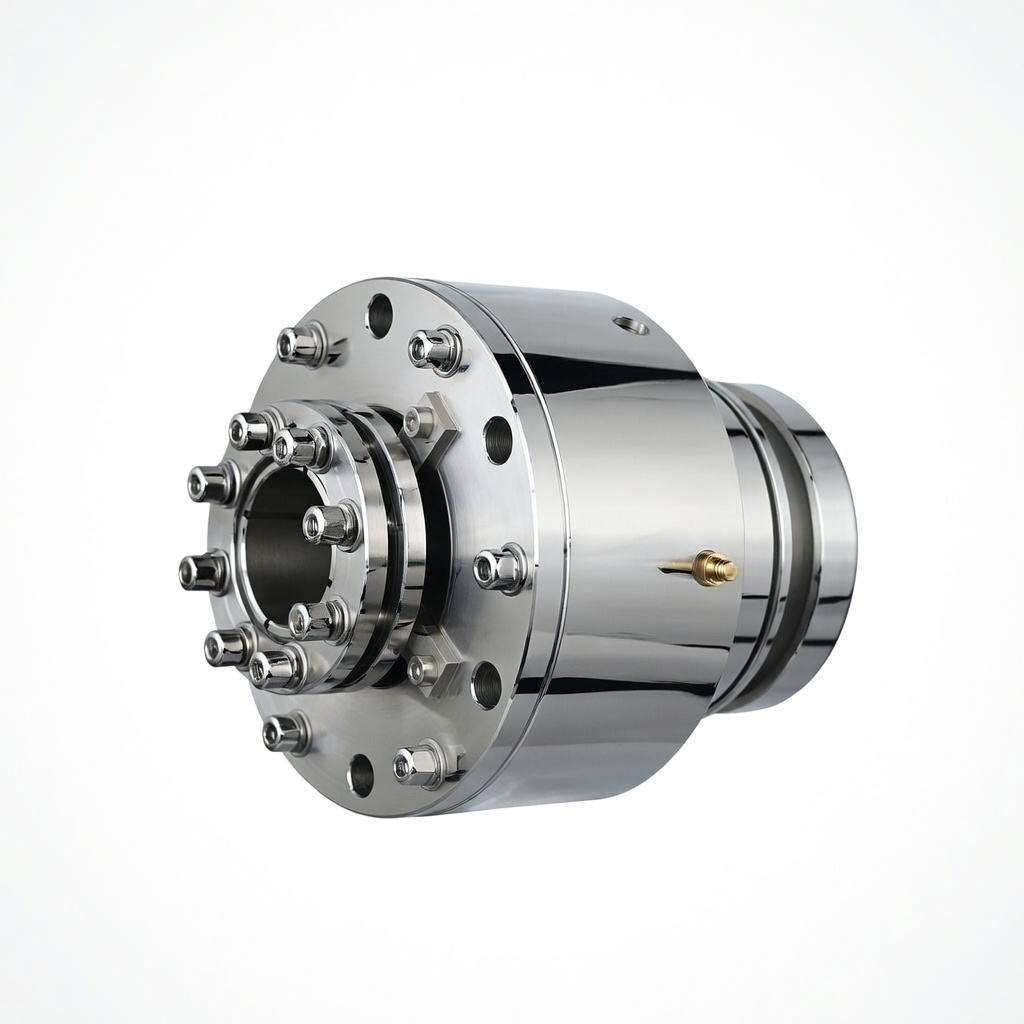

Single Face Mechanical Seal
Tank Mixer Mechanical Seals
,

Mixer Mechanical Seals

Mixer Mechanical Seals are precision sealing devices used on top-entry and side-entry tank mixers to prevent process fluid from leaking along the rotating shaft while allowing smooth rotation.

What Are Mixer Mechanical Seals?

They consist of two precision-lapped faces — one rotating with the shaft and one stationary — held together by springs and hydraulic pressure.
This creates a thin lubricating film that seals the shaft effectively with minimal leakage.

Key Benefits

Low Leakage Far superior to traditional packing for containing hazardous or high-purity fluids.
Long Service Life Reliable performance when properly installed and maintained.
Versatile Available as single, double, or cartridge seals for various process conditions.
Safety & Compliance Essential for hazardous, toxic, or high-purity applications.

Mixer Mechanical Seals are the standard sealing solution for most top-entry and side-entry tank mixers in chemical, pharmaceutical, oil & gas, and many other industries where reliable shaft sealing is required.

SKU: 330702 Categories: , Tags: , , , , , , , , , , , , , Brand:

Mixer Mechanical Seals are critical sealing components used on top-entry and side-entry tank mixers to prevent process fluid from leaking along the rotating shaft while allowing the shaft to turn smoothly.
They are the most common sealing method for non-magnetic drive mixers in industrial applications.

What Are Mixer Mechanical Seals?

A mechanical seal consists of two precision-lapped faces: one stationary (fixed to the seal housing) and one rotating (attached to the shaft).
These faces are pressed together by springs and hydraulic pressure, creating a very thin fluid film that lubricates and cools the seal while preventing leakage.

Mixer mechanical seals are specially designed to handle the unique challenges of agitation equipment — including shaft deflection, vibration, varying pressures, and difficult process fluids (corrosive, abrasive, viscous, or containing solids).

Main Types of Mixer Mechanical Seals

  • Single Mechanical Seal – Most common and economical. Used when some leakage to atmosphere is acceptable or when a seal flush is provided.
  • Double Mechanical Seal – Two seals in series with a barrier fluid between them. Provides higher safety for hazardous or toxic fluids.
  • Cartridge Seal – Pre-assembled unit that is easier to install and align. Popular for quick maintenance.
  • Gas Barrier Seal – Uses inert gas instead of liquid barrier fluid for sensitive or dry-running applications.

Key Components

  • Seal Faces – Primary sealing surfaces (common materials: Carbon vs. Ceramic, Silicon Carbide vs. Tungsten Carbide, etc.)
  • Springs or Bellows – Provide closing force to keep faces in contact
  • Secondary Seals (O-rings or gaskets) – Seal between faces and metal parts
  • Seal Housing / Gland – Holds the stationary components
  • Flush / Quench Ports – Allow cooling and lubrication fluid to reach the seal faces

Why Mixer Mechanical Seals Are Critical

Unlike pumps, mixer shafts often experience significant deflection and vibration due to long shaft lengths and heavy impellers.
A well-designed mixer mechanical seal must accommodate this movement while maintaining a reliable seal under varying pressures, temperatures, and fluid conditions.

Proper seal selection and installation directly impact:

  • Process safety (especially with hazardous or flammable fluids)
  • Product purity (pharmaceutical and food applications)
  • Environmental compliance (fugitive emissions)
  • Equipment uptime and maintenance costs

From simple single seals in water treatment to sophisticated double cartridge seals with barrier fluid systems in chemical and pharmaceutical plants, mixer mechanical seals are the workhorse sealing solution for top-entry and side-entry tank mixers worldwide.

Specifications

Mixer Mechanical Seals are precision-engineered sealing systems designed specifically for the demanding conditions of tank agitators and mixers.
They prevent process fluid leakage along the rotating shaft while accommodating shaft deflection, vibration, and varying operating conditions.

Detailed Specifications – Mixer Mechanical Seals

Parameter Specification Notes / Options
Seal Types Single Mechanical Seal, Double Mechanical Seal, Cartridge Seal, Gas Barrier Seal Double seals recommended for hazardous or toxic fluids
Seal Face Materials Carbon vs. Ceramic, Silicon Carbide vs. Silicon Carbide, Tungsten Carbide vs. Tungsten Carbide, Silicon Carbide vs. Carbon Material selected based on fluid abrasiveness and chemical compatibility
Secondary Seals (O-rings) Viton (FKM), EPDM, Kalrez (FFKM), PTFE, Aflas FFKM for extreme chemical resistance
Shaft Sizes 0.5″ to 6″ (12 mm – 150 mm) diameter Custom sizes available
Pressure Rating Up to 300 psi (20 bar) standard; higher ratings available Double seals can handle higher pressures with barrier fluid
Temperature Rating -40°F to 500°F (-40°C to 260°C) depending on materials Higher temperatures require special face and elastomer materials
Speed Range Up to 3600 RPM Higher speeds may require special cooling arrangements
Flush Plans API Plan 11, 32, 52, 53A/B, 54, Quench (Plan 62) Flush plan selected based on fluid properties and safety requirements
Mounting Styles Cartridge, Split, or Component (inside/outside mounted) Cartridge seals are easiest to install and align
Typical Applications Top-entry and side-entry tank mixers in chemical, pharmaceutical, food, oil & gas, and water treatment industries Especially critical for hazardous or high-purity processes

Mixer Mechanical Seals are custom-selected based on shaft diameter, process fluid characteristics (corrosivity, abrasiveness, temperature, pressure), speed, and safety requirements.
Proper seal selection, flush plan, and installation are essential for achieving long seal life and preventing costly leaks or downtime.

From simple single seals in non-hazardous water treatment applications to sophisticated double cartridge seals with pressurized barrier fluid systems in pharmaceutical or toxic chemical service, mechanical seals remain the most widely used sealing solution for top-entry and side-entry tank mixers.

Installation Procedures

Proper installation of Mixer Mechanical Seals is critical for leak-free performance, long seal life, and safe operation of top-entry and side-entry tank mixers.
Misalignment, incorrect torque, or contamination during installation are the most common causes of premature seal failure.

Installation Procedures for Mixer Mechanical Seals

Step Installation Procedure Tools / Materials Required Safety & Important Notes
1 Verify the mechanical seal matches the mixer model, shaft diameter, and process conditions. Check the seal drawing for orientation (inside vs. outside mounted) and flush plan requirements. Seal installation drawing and manual Using the wrong seal or orientation can cause immediate failure.
2 Shut down the mixer, isolate the tank, depressurize, and follow lockout/tagout (LOTO) procedures. Drain the tank or lower the liquid level below the seal area if possible. Lockout/Tagout kit Never work on the seal while the tank is pressurized or contains hazardous fluid.
3 Remove the old seal carefully. Clean the shaft, sleeve, and seal housing thoroughly. Remove any burrs, rust, or old gasket material. Inspect the shaft for wear or scoring. Cleaning solvent, emery cloth, micrometer Shaft surface must be smooth (Ra ≤ 0.8 µm) for proper secondary seal performance.
4 For cartridge seals: Slide the complete cartridge onto the shaft and align it according to the installation drawing. For component seals: Install the rotating and stationary parts separately, following the exact sequence and measurements provided by the manufacturer. Seal installation tool kit, depth gauge Precise axial positioning is critical — incorrect setting leads to face damage or leakage.
5 Tighten all set screws evenly and torque gland bolts in a criss-cross pattern to the manufacturer’s specified values. For double seals, connect and pressurize the barrier fluid system before starting. Calibrated torque wrench, barrier fluid system Over-torquing can distort the seal gland and cause face misalignment.
6 Perform a static pressure test (if possible) and a dry rotation test (by hand) to check for binding or unusual resistance. Then fill the tank and start the mixer at low speed while monitoring for leaks and vibration. Pressure test equipment Initial startup at low speed helps detect installation errors before full operation.
7 Document the installation: seal serial number, face materials, flush plan used, torque values, alignment measurements, and initial leak/vibration observations. Installation checklist and photos Accurate records are essential for troubleshooting and warranty claims.

Important Notes for Mixer Mechanical Seal Installation:

• Always work in a clean environment — even small particles can damage the precision-lapped seal faces.
• Never touch the seal faces with bare hands or dirty tools.
• Use the exact torque values and tightening sequence specified by the seal manufacturer.
• For double seals, the barrier fluid system must be pressurized and functioning before starting the mixer.
• Shaft runout should be within 0.002″ (0.05 mm) for best seal life.
• After installation, monitor the seal closely during the first few hours of operation.

Correct installation significantly extends mechanical seal life and prevents costly leaks and downtime.

Maintenance Procedures

Mixer Mechanical Seals are precision components that require regular inspection and timely maintenance to prevent leaks, minimize downtime, and extend seal life.
Most seal failures are caused by lack of proper monitoring, incorrect flush plans, or neglected routine care.

Maintenance Procedures for Mixer Mechanical Seals

Maintenance Task Procedure & Frequency
Daily / Visual Inspection • Check for any visible leakage at the seal gland or drain port
• Listen for unusual noise or vibration from the seal area
• Monitor seal flush/barrier fluid pressure and flow (if applicable)
• Check temperature of the seal housing
Weekly • Inspect drain lines for buildup or blockage
• Verify barrier fluid reservoir level and pressure (double seals)
• Clean any external dirt or chemical residue from the seal gland
• Check for signs of discoloration or corrosion on exposed parts
Monthly / Quarterly • Measure and record seal leakage rate (if measurable)
• Check flush plan components (orifices, strainers, coolers)
• Inspect piping for leaks or blockages
• Verify alignment and runout of the shaft (if vibration is present)
Semi-Annual • Replace barrier fluid or flush liquid if contaminated
• Inspect seal faces (during shutdown if possible)
• Check O-rings and secondary seals for hardening or cracking
• Lubricate or adjust any external seal support components
Annual Major Inspection / Overhaul • Remove the mixer or seal cartridge for detailed inspection
• Replace seal faces, O-rings, and springs as needed
• Lap or replace damaged seal faces
• Rebuild or replace the complete seal if wear is excessive
After Process Change or Long Shutdown • Flush the seal chamber thoroughly before restart
• Check compatibility of new process fluid with existing seal materials
• Re-pressurize barrier fluid system and verify flow before starting

Important Notes for Mixer Mechanical Seals:

• Monitor seal leakage and barrier fluid consumption daily — a sudden increase usually indicates seal face wear or damage.
• Never run a mechanical seal dry. Always maintain proper flush or barrier fluid flow.
• Vibration is the #1 enemy of mechanical seals. Address any excessive vibration immediately.
• Use only manufacturer-recommended spare parts and seal face materials.
• Keep detailed records of seal performance, leakage rates, and replacement history.
• For double seals, maintain barrier fluid pressure 1–2 bar higher than process pressure at all times.

Regular, proactive maintenance dramatically extends mechanical seal life and prevents costly leaks and unplanned shutdowns.

Q&A

Question Answer
What is a Mixer Mechanical Seal? A Mixer Mechanical Seal is a precision sealing device used on top-entry and side-entry tank mixers to prevent process fluid from leaking along the rotating shaft. It consists of two lapped faces (one rotating, one stationary) that are held together by springs and hydraulic pressure, creating a very thin lubricating film while blocking leakage.
Why are mechanical seals used on mixers instead of packing? Mechanical seals provide much lower leakage rates, longer service life, and better performance with difficult fluids compared to traditional packing. They are essential for hazardous, toxic, high-purity, or high-pressure applications where leakage must be minimized or eliminated.
What are the main types of mixer mechanical seals? • Single Mechanical Seal (most common and economical)
• Double Mechanical Seal (with barrier fluid for higher safety)
• Cartridge Seal (pre-assembled for easy installation)
• Gas Barrier Seal (uses inert gas instead of liquid)
How long do mixer mechanical seals typically last? With proper installation, correct flush plan, and good operating conditions, mixer mechanical seals typically last 1 to 5 years. In clean, non-abrasive services with good maintenance, they can exceed 5 years. Harsh conditions (abrasives, dry running, or poor flush) can reduce life to months.
What is the most common cause of mechanical seal failure on mixers? The leading causes are:
1. Shaft vibration or misalignment
2. Running the seal dry (no flush or barrier fluid)
3. Incorrect flush plan or blocked flush lines
4. Abrasive particles in the process fluid
5. Thermal shock or chemical attack on seal faces
What is a flush plan and why is it important? A flush plan is the piping arrangement that provides cooling, lubrication, and cleaning to the seal faces. Common plans include Plan 11 (recirculation from pump), Plan 52/53 (barrier fluid systems), and Plan 62 (quench). Proper flushing is essential for seal longevity, especially in mixers with long shafts and high vibration.
Can mechanical seals be repaired or must they be replaced? Many seals can be repaired by replacing the faces, O-rings, and springs. Cartridge seals are often more economical to replace entirely. For critical applications, it is common to keep spare seals on hand for quick changeouts during planned shutdowns.

Note: Mixer Mechanical Seals are precision components whose performance depends heavily on correct installation, proper flush plan, and regular monitoring.
Vibration, dry running, and poor flush conditions are the biggest threats to seal life.
Always follow the manufacturer’s recommended installation and maintenance procedures for your specific seal type.

Advantages / Disadvantages

Advantages Disadvantages
  • Very low leakage rates compared to packing — often near zero with proper setup
  • Longer service life when correctly installed and maintained
  • Excellent for hazardous, toxic, flammable, or high-purity fluids
  • Can handle higher pressures and speeds than traditional packing
  • Cartridge designs allow quick and easy replacement with minimal downtime
  • Double seals with barrier fluid systems provide an extra layer of safety
  • Wide range of face materials available for almost any chemical compatibility
  • Lower long-term operating costs in critical applications due to reduced emissions and maintenance
  • Higher initial cost compared to simple packing
  • More sensitive to shaft vibration, misalignment, and runout
  • Require proper flush or barrier fluid system to function reliably
  • Can fail quickly if run dry or with blocked flush lines
  • Installation requires more skill and cleanliness than packing
  • Repair or replacement is more expensive and time-consuming than repacking
  • Not ideal for extremely abrasive slurries without special face materials
  • Performance depends heavily on correct flush plan selection

Note: Mixer Mechanical Seals offer superior leakage control and reliability in demanding applications, but they require proper installation, correct flush plan, and regular monitoring.
When well-maintained, they provide excellent long-term performance and safety, especially for hazardous or high-purity processes.

Applications

Mixer Mechanical Seals are essential sealing solutions for top-entry and side-entry tank mixers. They are used across industries where leakage control, safety, product purity, and equipment reliability are critical.

Applications of Mixer Mechanical Seals

Industry / Application Typical Mixer Duties Purpose & Benefits of Mechanical Seals
Chemical Processing Acid blending, solvent mixing, exothermic reactions, catalyst dispersion, polymerization Prevents leakage of corrosive or hazardous chemicals, reduces emissions, and improves plant safety.
Pharmaceutical & Biotech Buffer preparation, API synthesis, sterile media mixing, vaccine production, high-purity blending Maintains product purity with electropolished seals and supports CIP/SIP cleaning cycles.
Oil & Gas / Petrochemical Crude blending, amine treating, corrosion inhibitor injection, H₂S scavenging Handles high-pressure, sour service, and flammable fluids with minimal fugitive emissions.
Food & Beverage Flavor mixing, syrup blending, dairy processing, sauce emulsification FDA-compliant materials ensure hygiene and prevent product contamination.
Water & Wastewater Treatment Polymer activation, coagulant mixing, pH adjustment, sludge suspension Provides reliable sealing in abrasive and chemically aggressive environments with minimal maintenance.
Pulp & Paper Bleach mixing, stock preparation, chemical additive injection Withstands aggressive bleaching chemicals and high-temperature slurries.
Specialty Chemicals & Hazardous Processes Toxic intermediates, flammable solvents, high-pressure reactions Double seals with barrier fluid systems provide maximum containment and personnel safety.

Mixer Mechanical Seals are particularly valuable when:

  • Handling hazardous, toxic, flammable, or high-purity fluids
  • Strict environmental emission regulations must be met
  • Product contamination must be avoided (pharmaceutical, food, electronics)
  • Long seal life and reduced maintenance are priorities
  • High pressure, high temperature, or abrasive conditions exist

From simple single seals in water treatment to sophisticated double cartridge seals in pharmaceutical and chemical plants, mechanical seals remain the most reliable and widely used sealing solution for top-entry and side-entry tank mixers worldwide.
