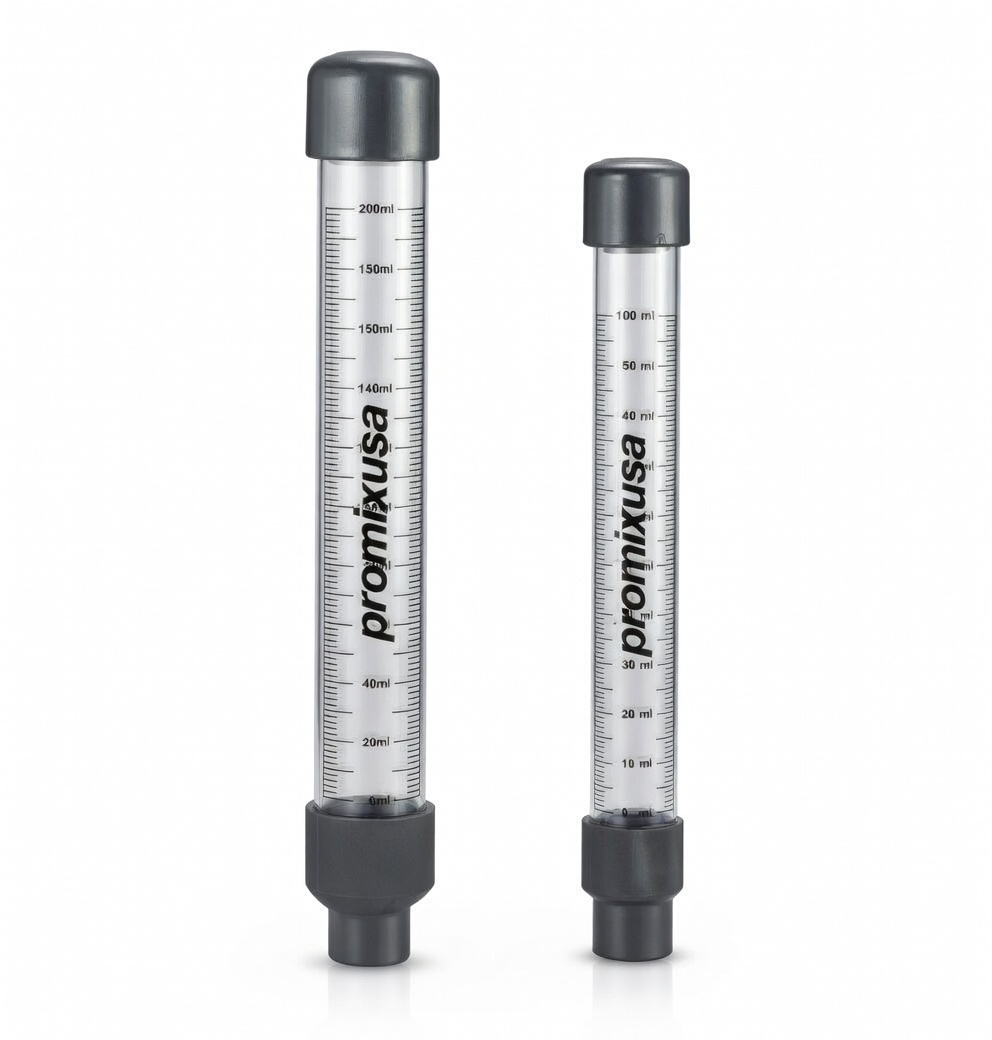

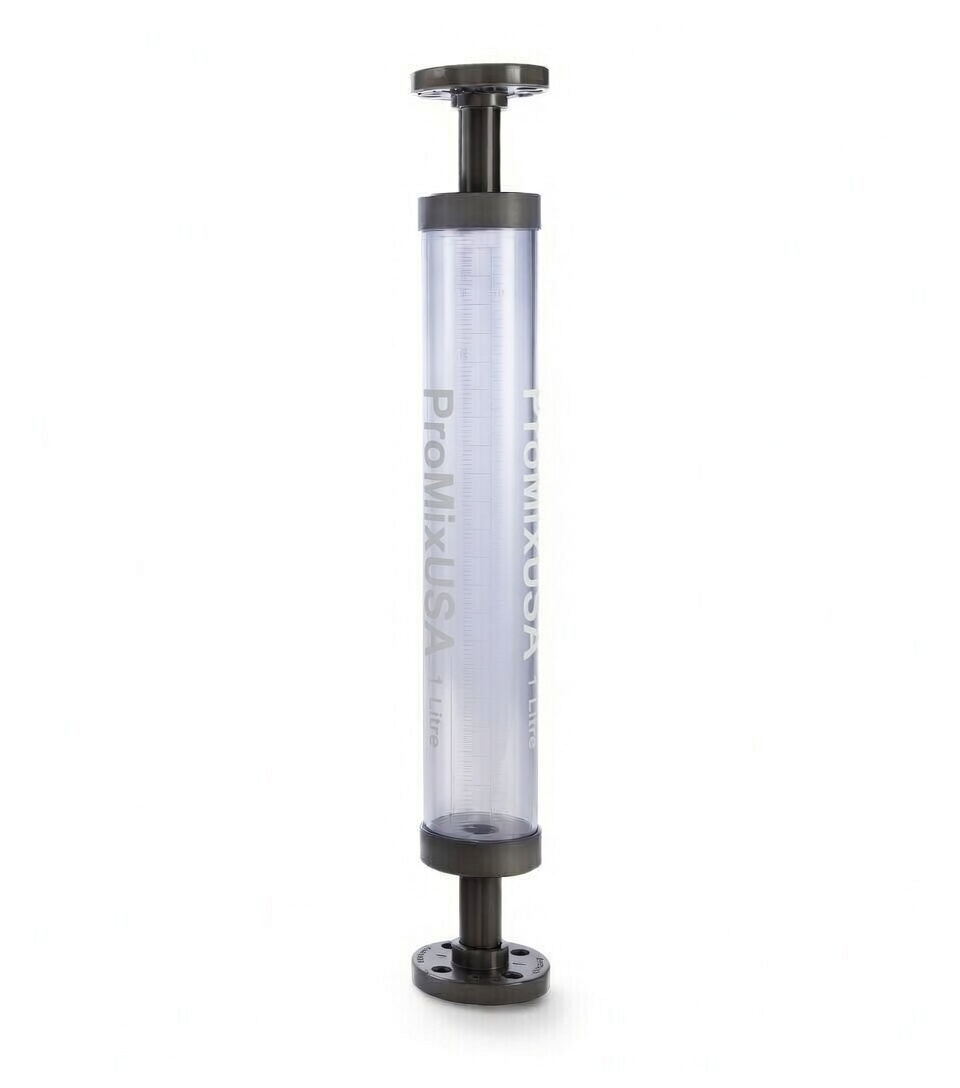

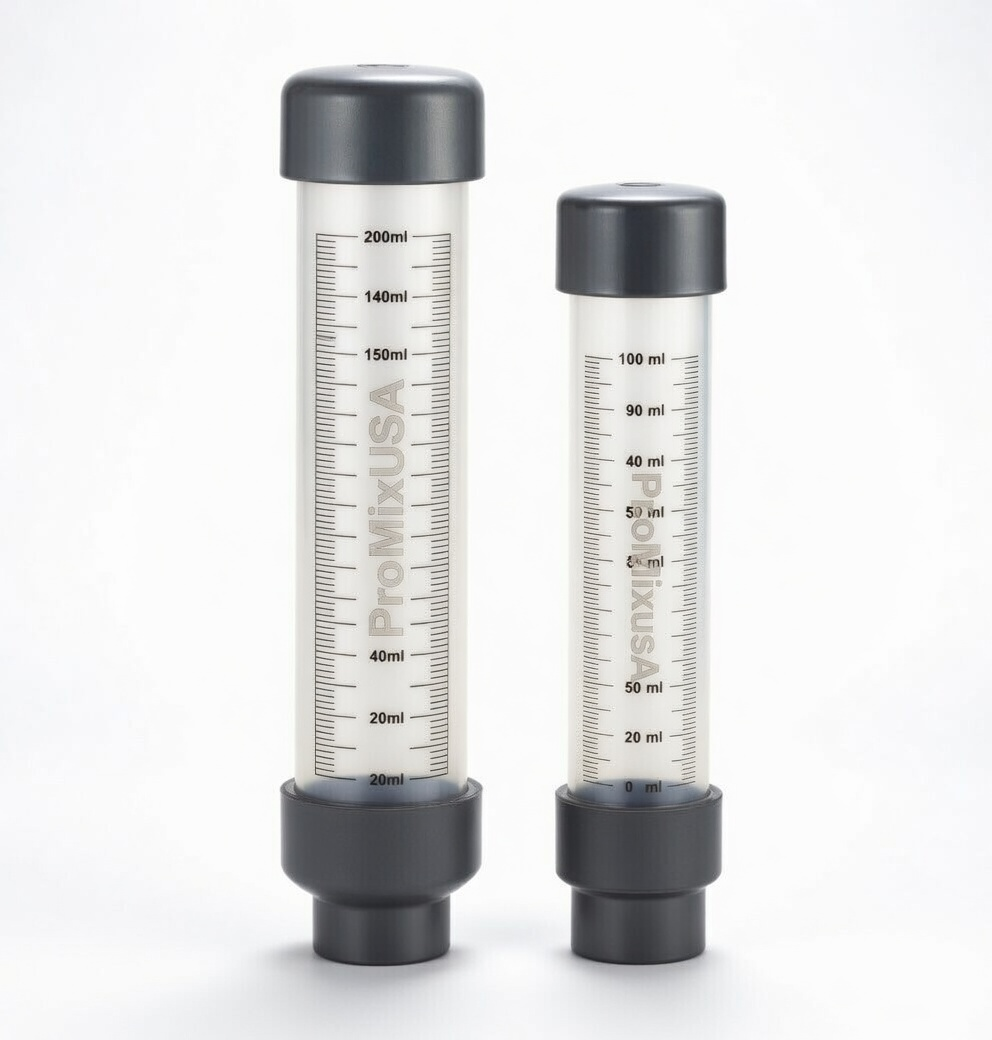

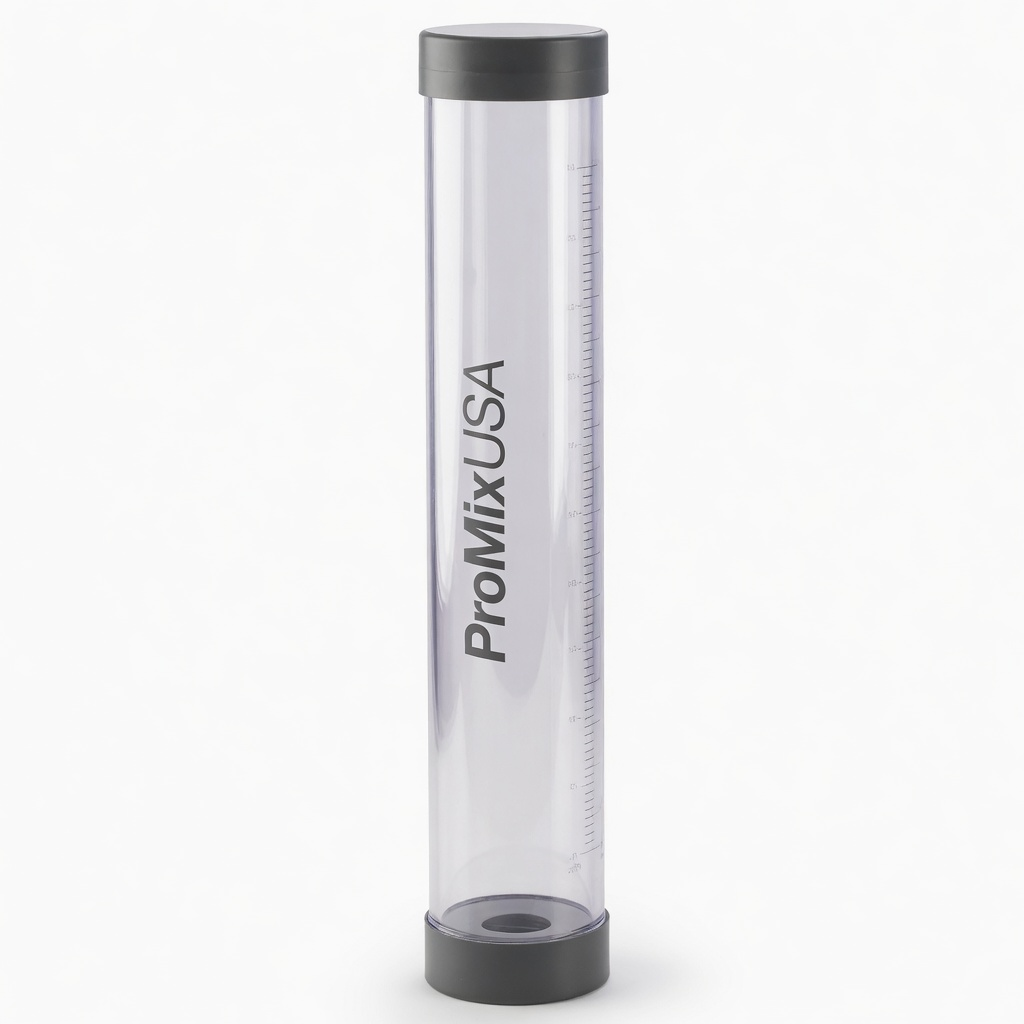

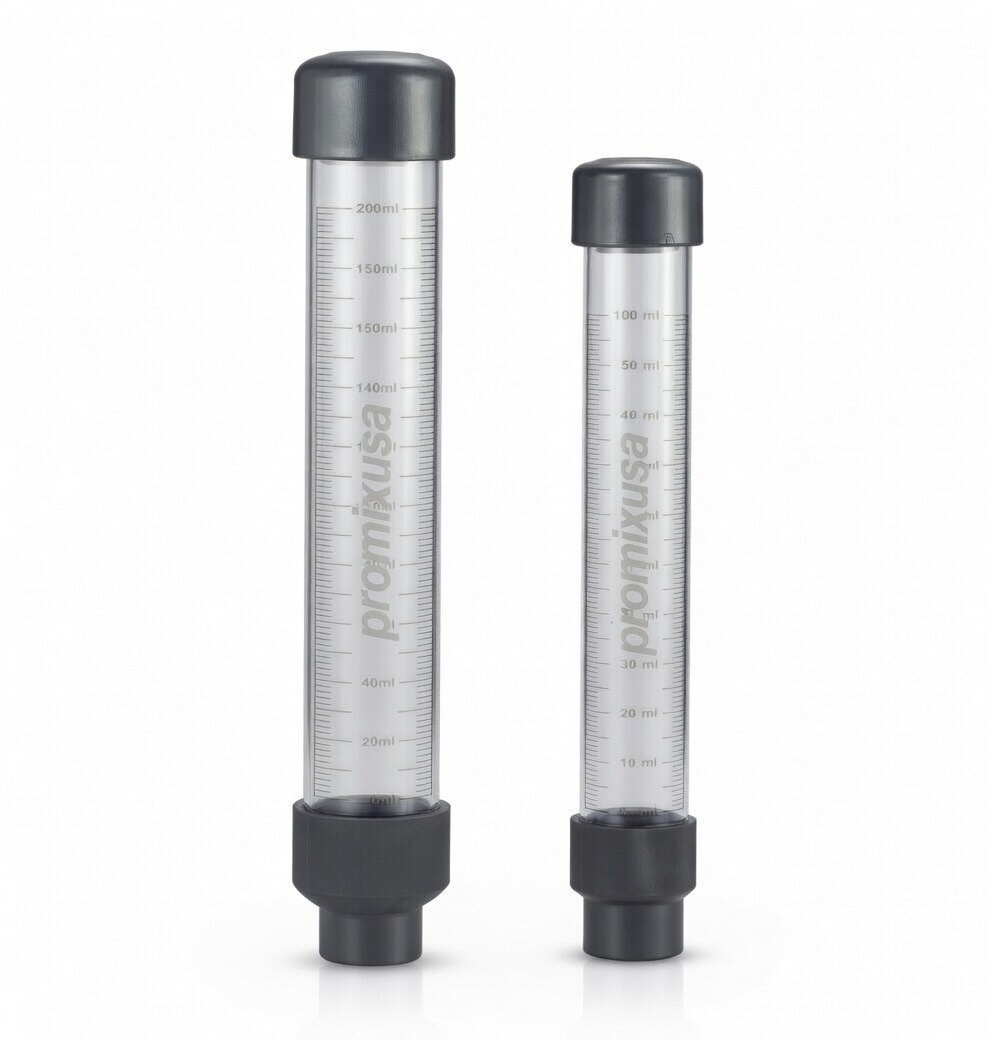

ProMixUSA pump calibration columns, also known as calibration cylinders, offer a precise and straightforward method for determining pump flow rates, using industry-standard graduations in milliliters per minute (ml/min) and gallons per hour (GPH). These columns are essential tools in various industrial applications, providing accurate measurements that ensure optimal performance and efficiency of pumping systems. This comprehensive description will explore the features, benefits, and applications of ProMixUSA pump calibration columns, with an emphasis on their construction materials, readability enhancements, and protective features.
Function
The primary function of these calibration columns is to measure pump flow rates accurately. Each column is designed with top-aligned graduated scales that allow operators to monitor both ml/min and GPH in a single, one-minute test. This dual-scale feature is particularly beneficial for users who need to switch between different units of measurement quickly and effortlessly. The top-aligned scales also simplify the reading process, minimizing the risk of errors and ensuring that measurements are consistent and reliable.
One of the standout features of ProMixUSA pump calibration columns is the high-contrast blue lettering used on the graduated scales. This design choice significantly enhances readability in various lighting conditions, making it easier for operators to read measurements accurately. Whether in brightly lit environments or dimly lit areas, the high-contrast blue lettering ensures that the scales remain visible and legible. This feature is especially important in industrial settings where precise measurements are crucial for maintaining the efficiency and safety of pumping systems.
Protective Layers
In addition to their readability, the scales on ProMixUSA pump calibration columns are protected by a lamination layer. This protective layer serves multiple purposes: It prevents the scales from fading over time, shields them from physical damage, and protects against chemical attacks. In industrial environments where exposure to harsh chemicals is common, this protective layer ensures that the calibration columns remain accurate and durable. The lamination also makes the columns easier to clean, as it prevents chemicals and other contaminants from adhering to the surface of the scales.

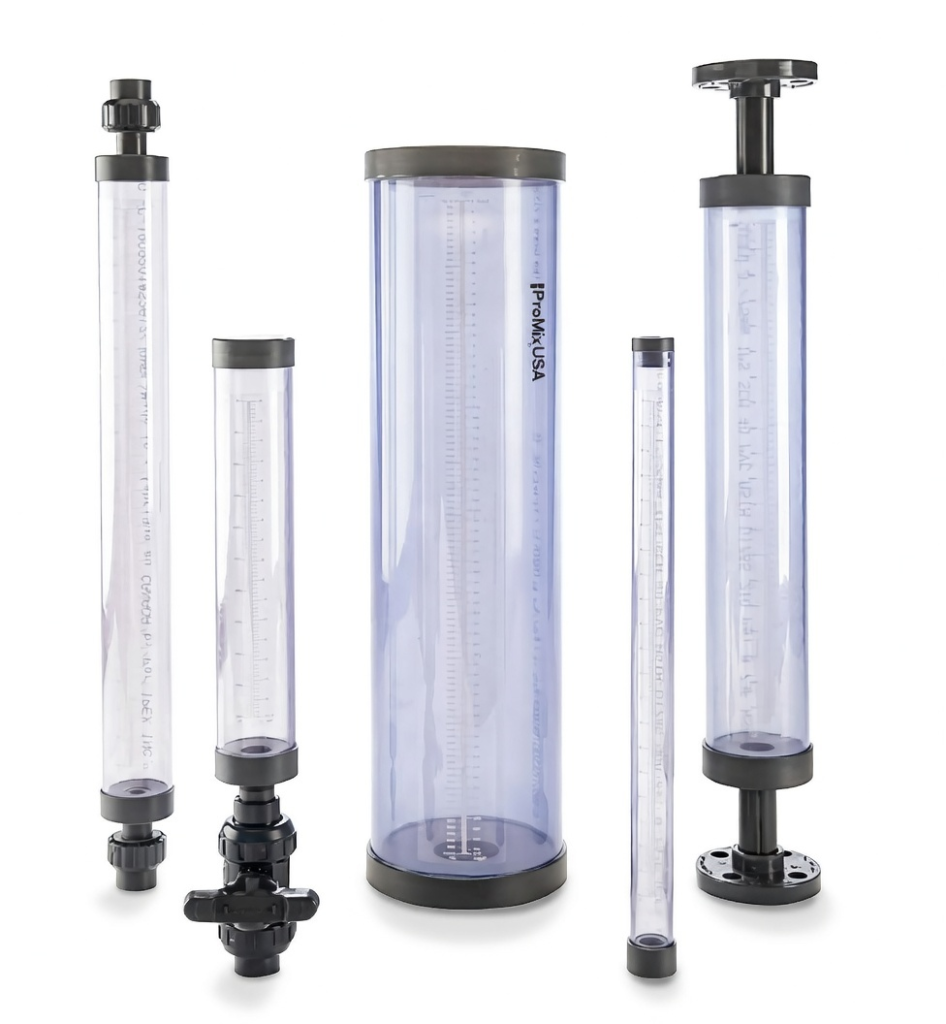

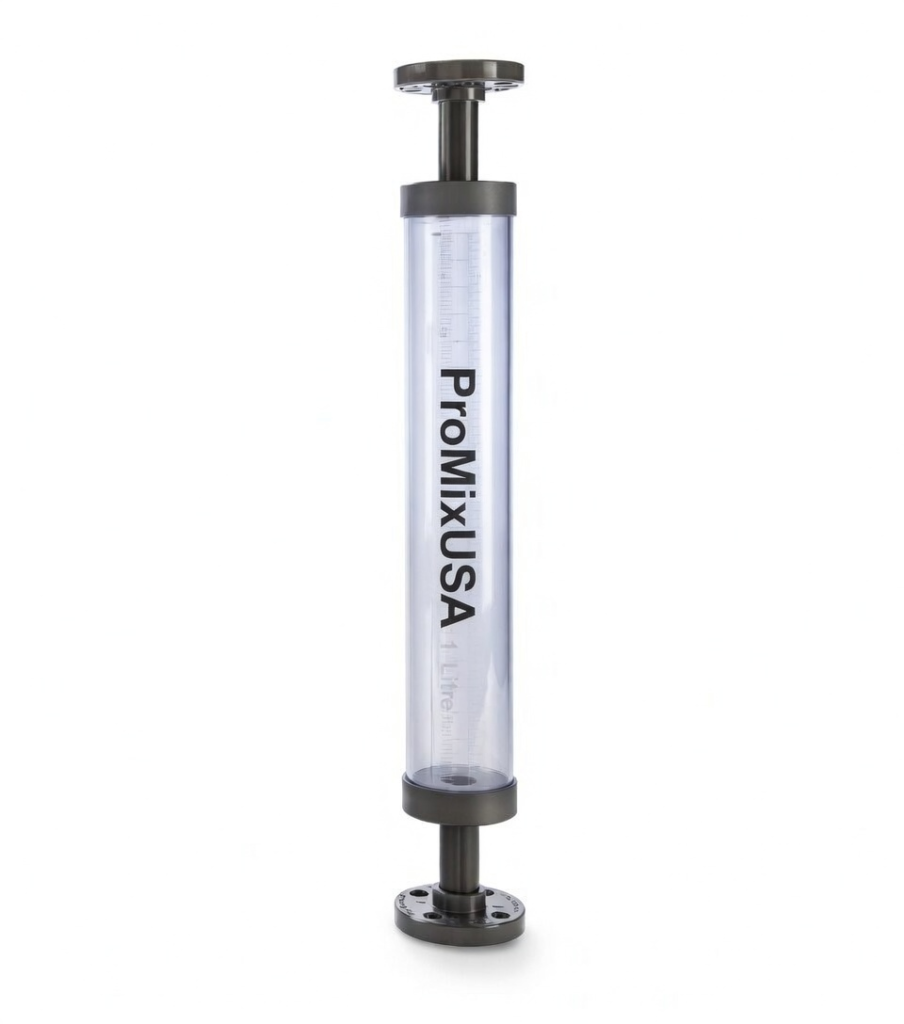

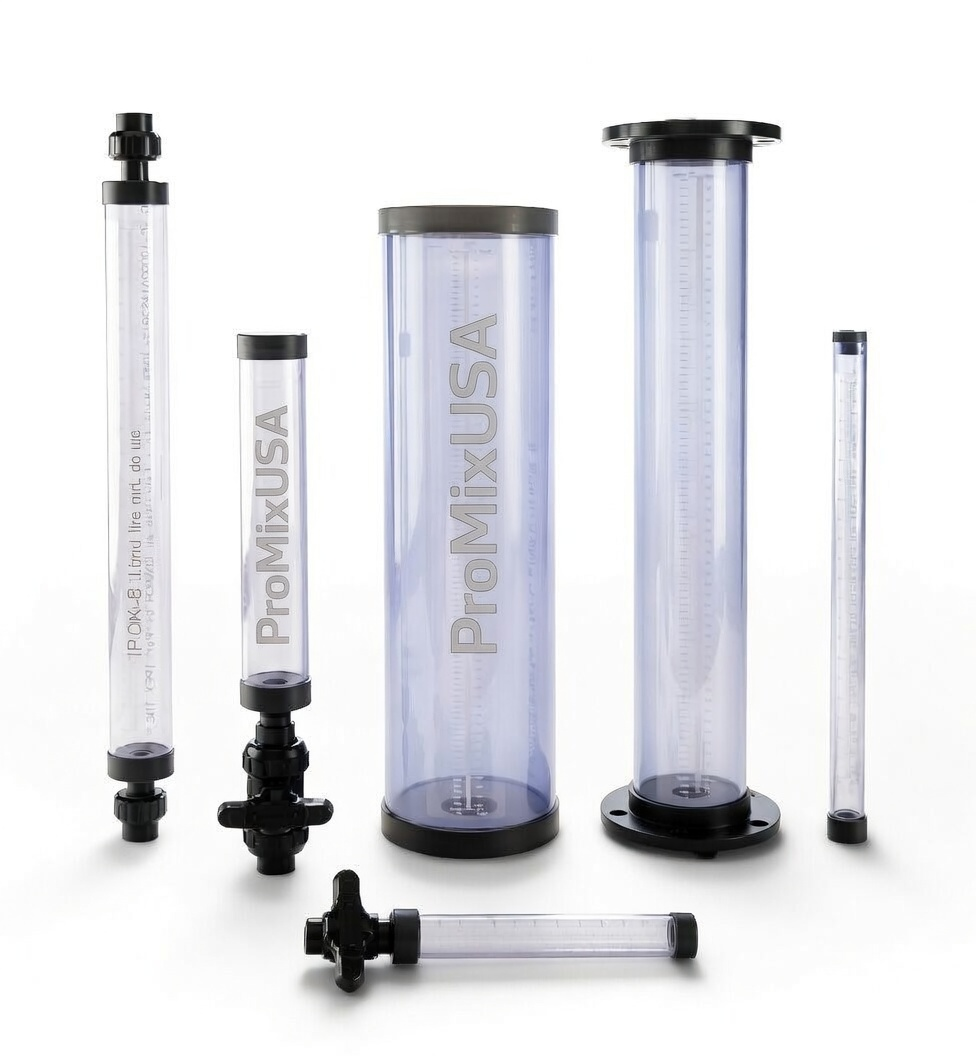

ProMixUSA pump calibration columns are available in two primary construction materials: Borosilicate glass and PVC. Each material offers unique advantages, making the columns suitable for a wide range of applications.

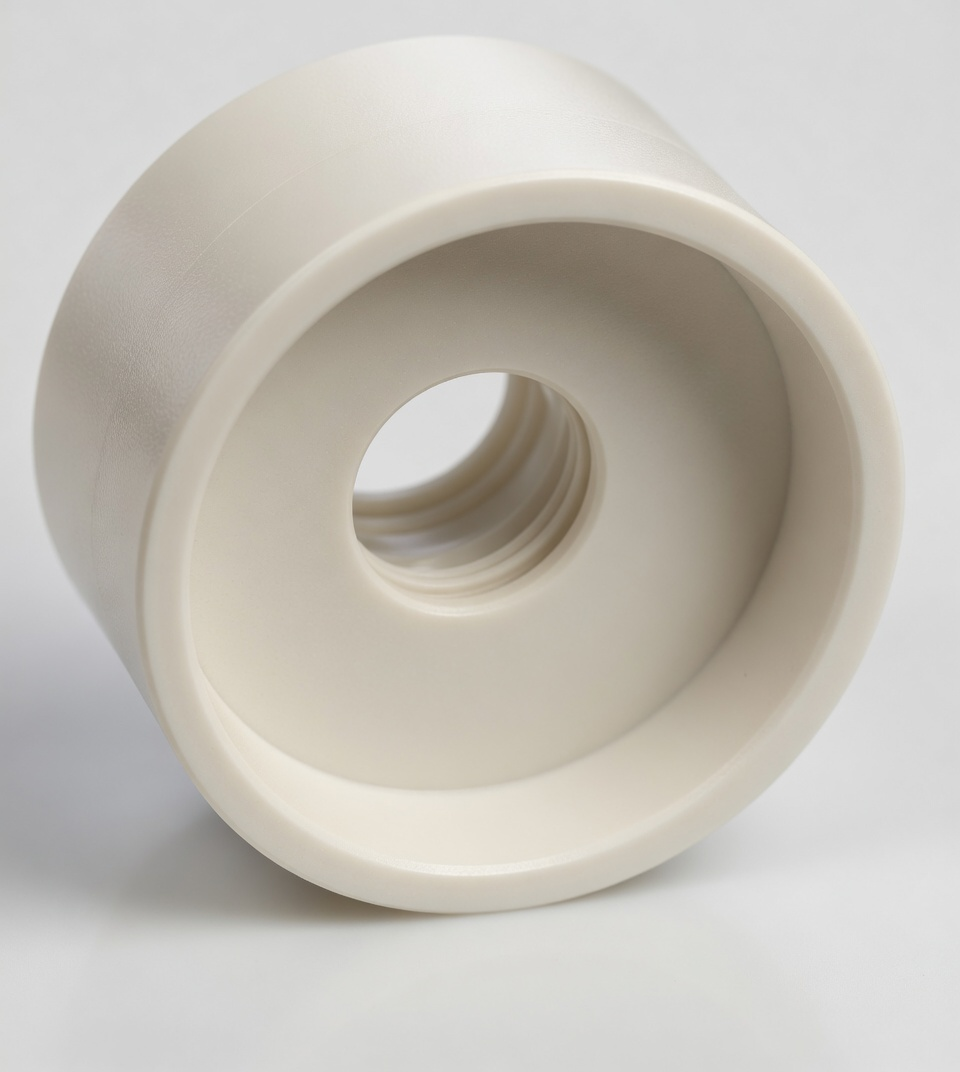

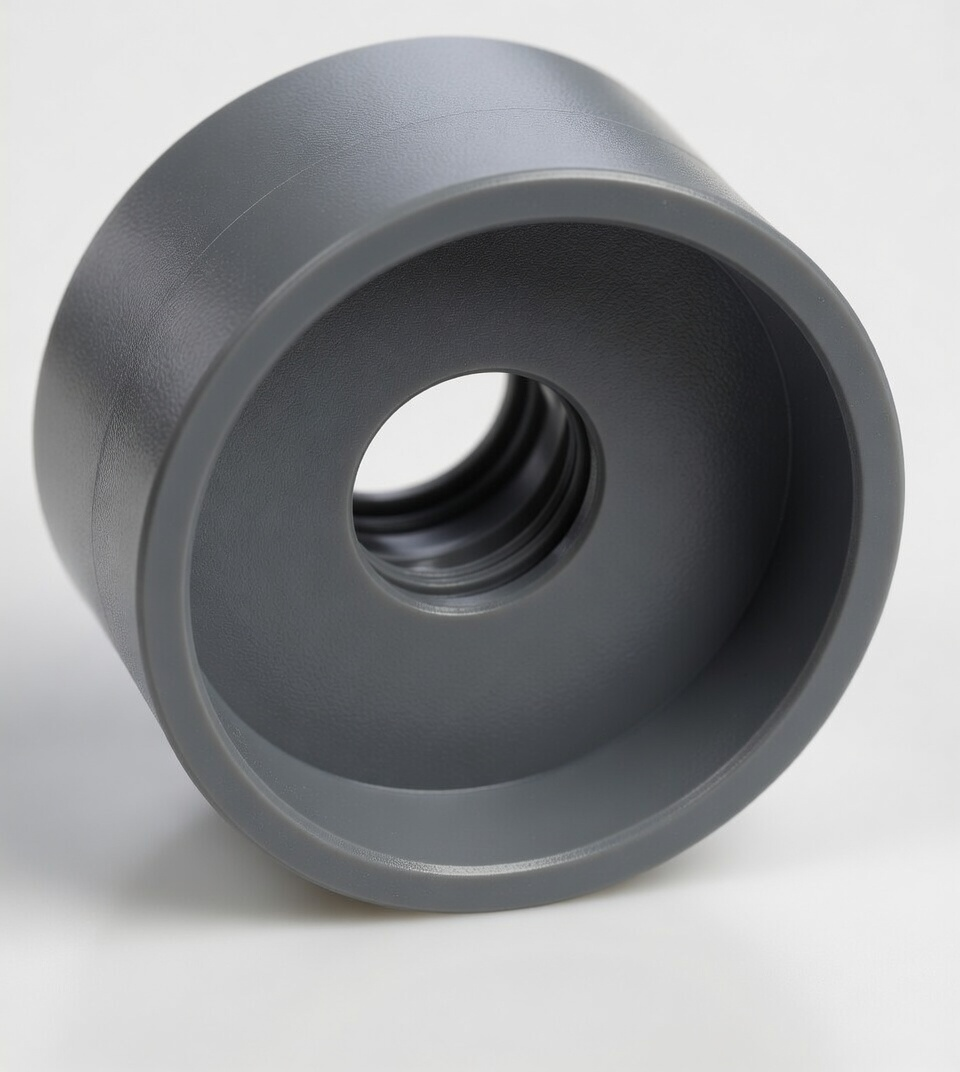

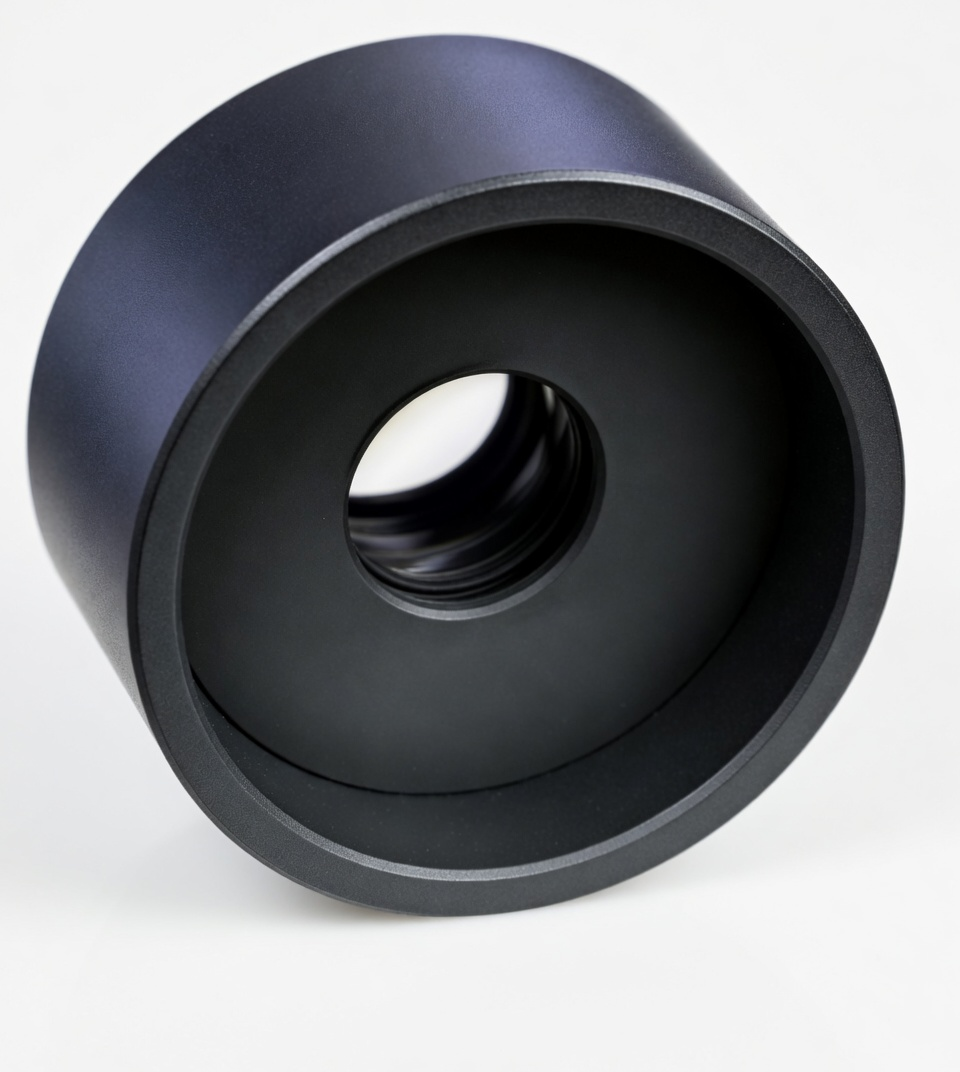

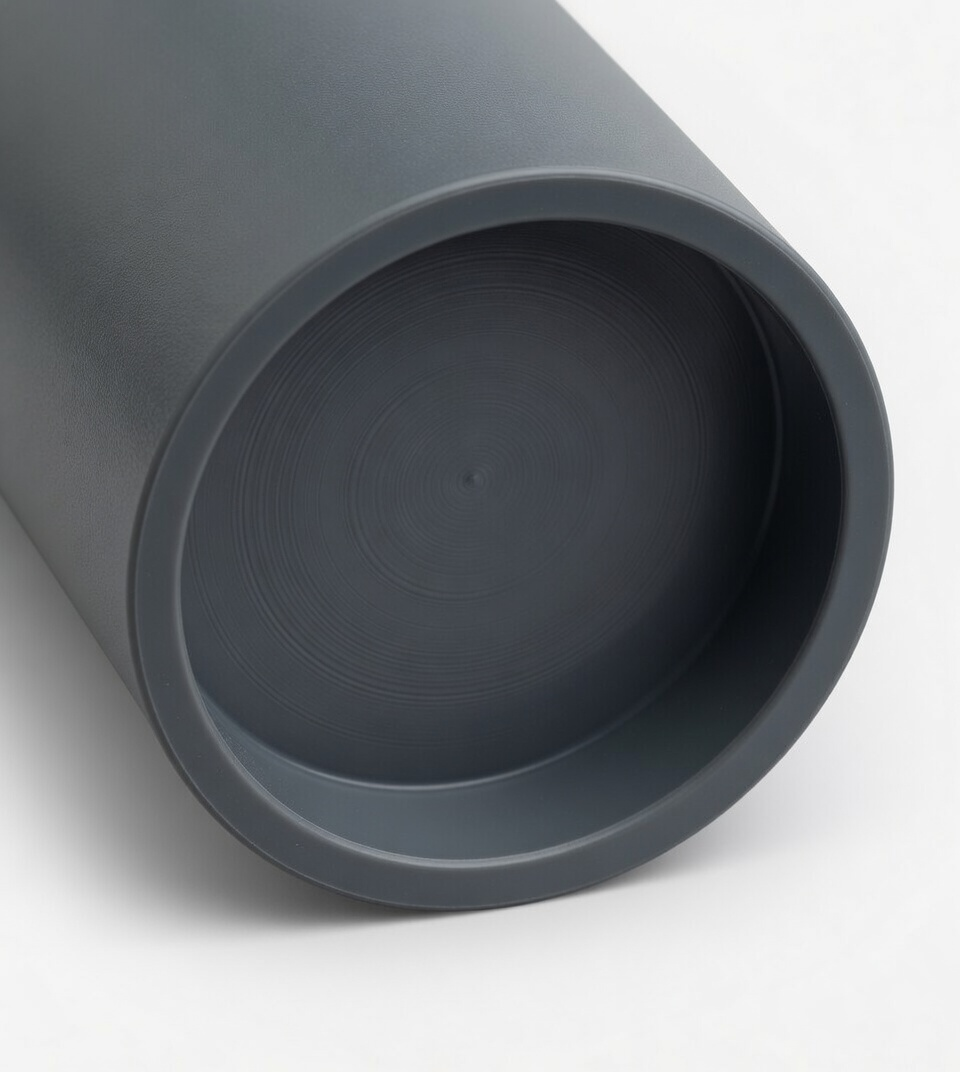

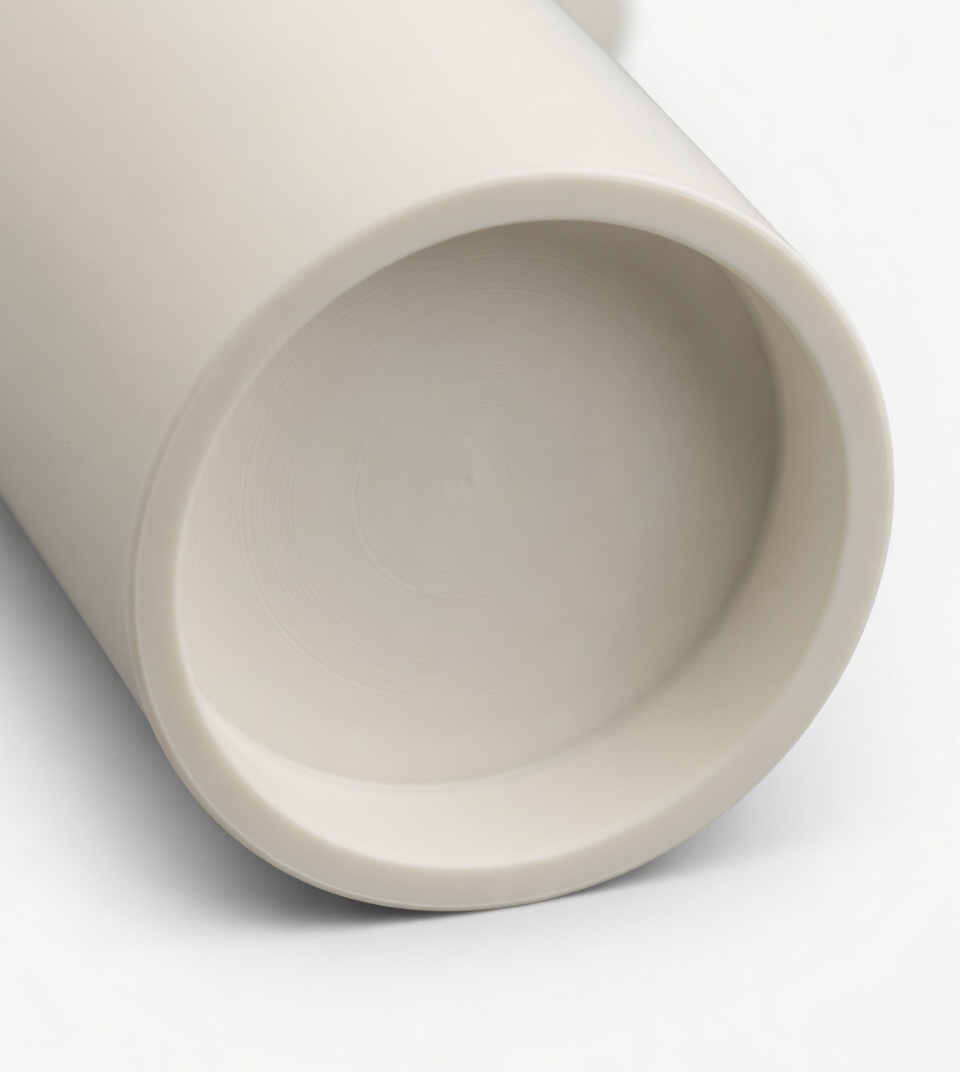

Available End Cap Options
           Â
Borosilicate glass calibration columns are ideal for measuring the flow of corrosive chemicals. Borosilicate glass is known for its exceptional chemical resistance, making it a reliable choice for applications involving aggressive substances. These columns are available with end caps made of CPVC (Chlorinated polyvinyl chloride – Wikipedia), PTFE (polytetrafluoroethylene), and 316L stainless steel. Each of these materials offers additional benefits:

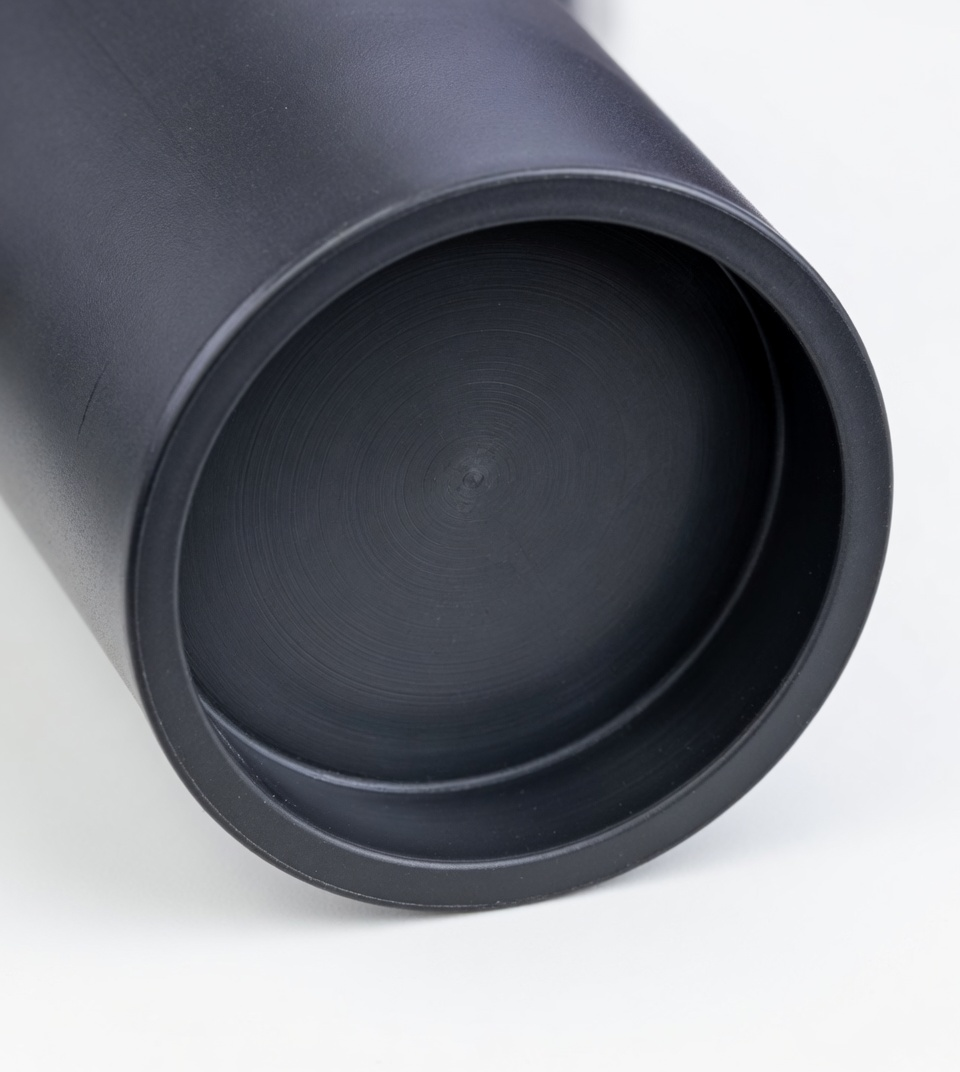

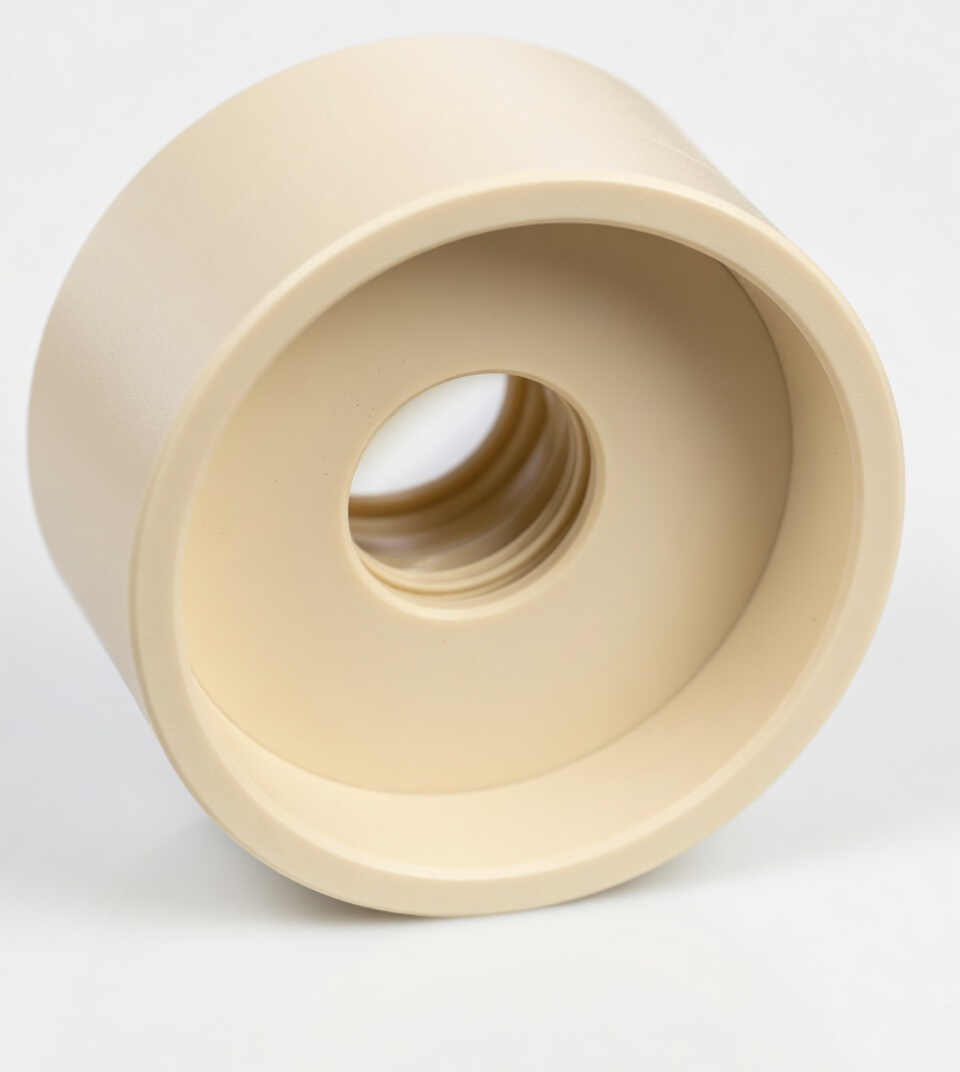

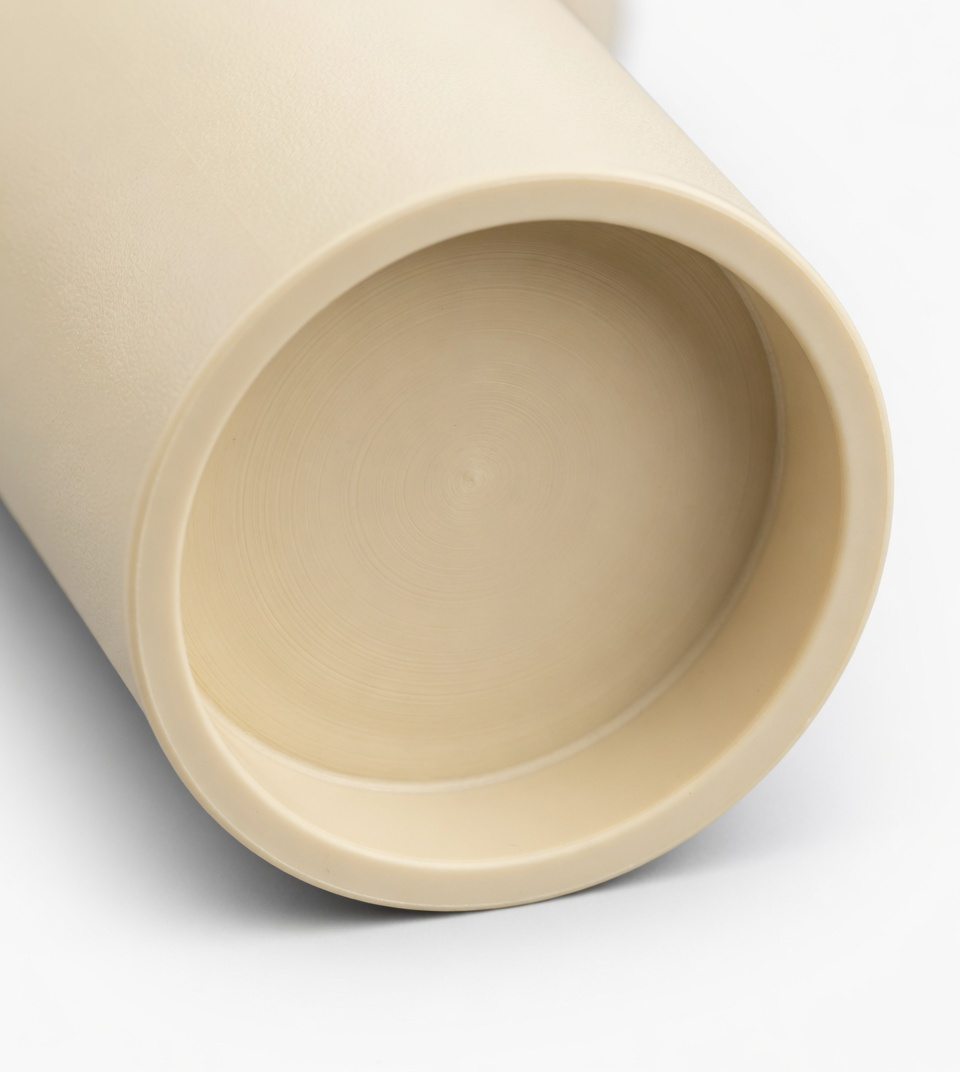

CPVC End Caps:Â CPVC is resistant to a wide range of chemicals, including acids, alkalis, and salts. It also has good mechanical strength and can withstand high temperatures. These properties make CPVC end caps a versatile and durable choice for many industrial applications.

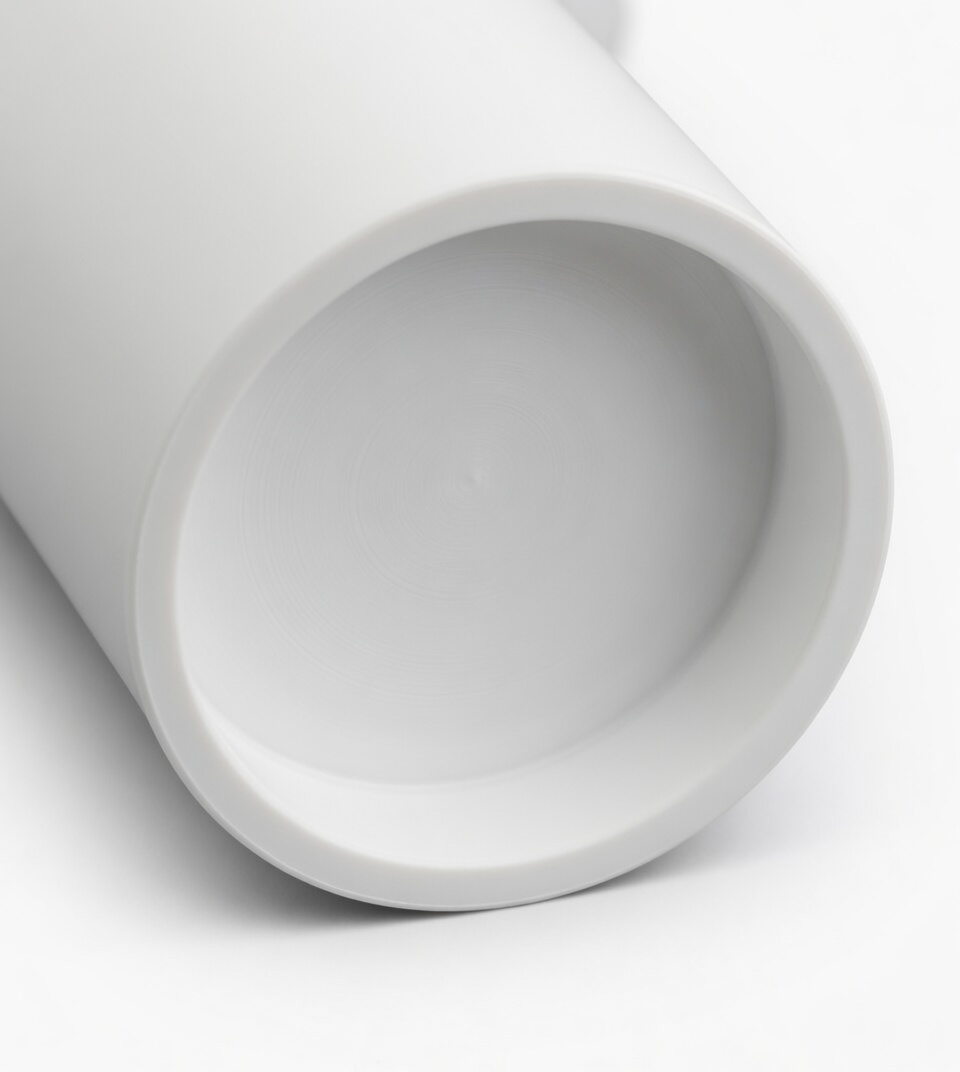

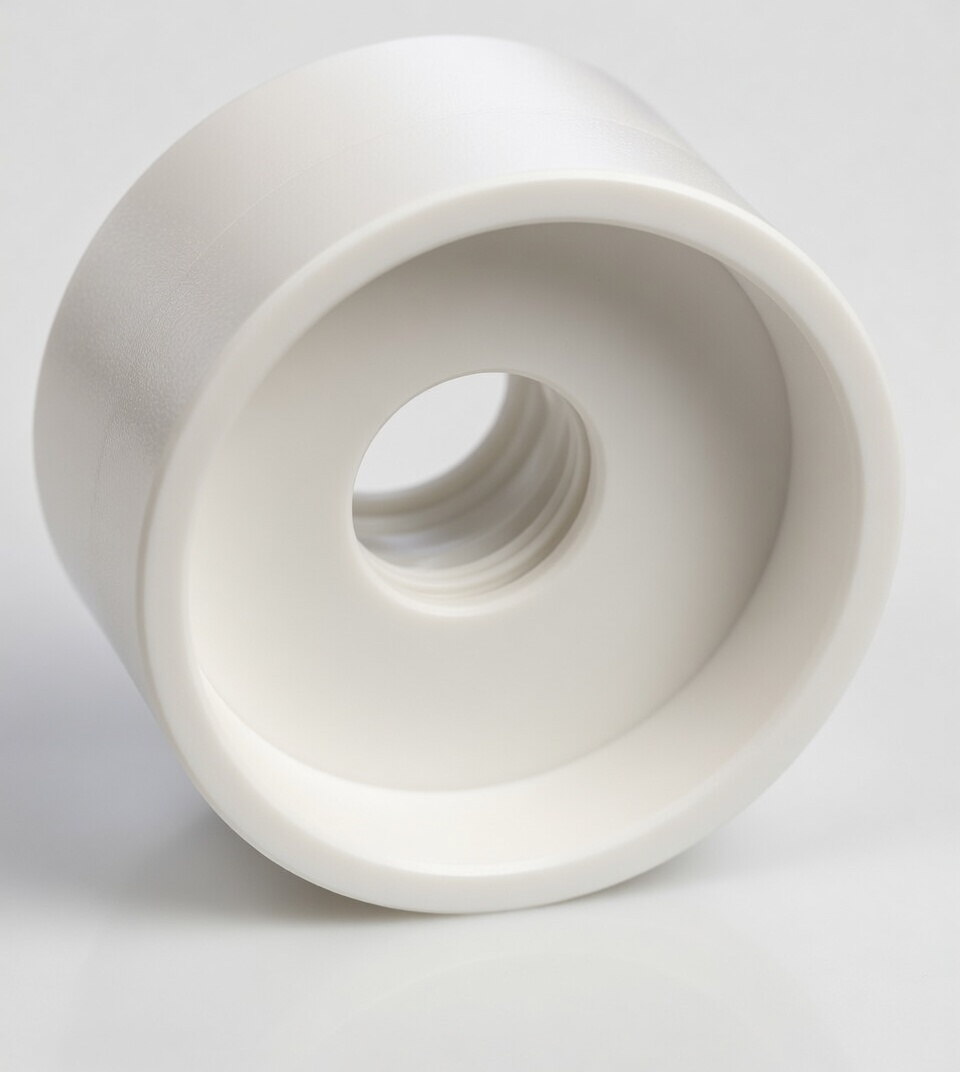

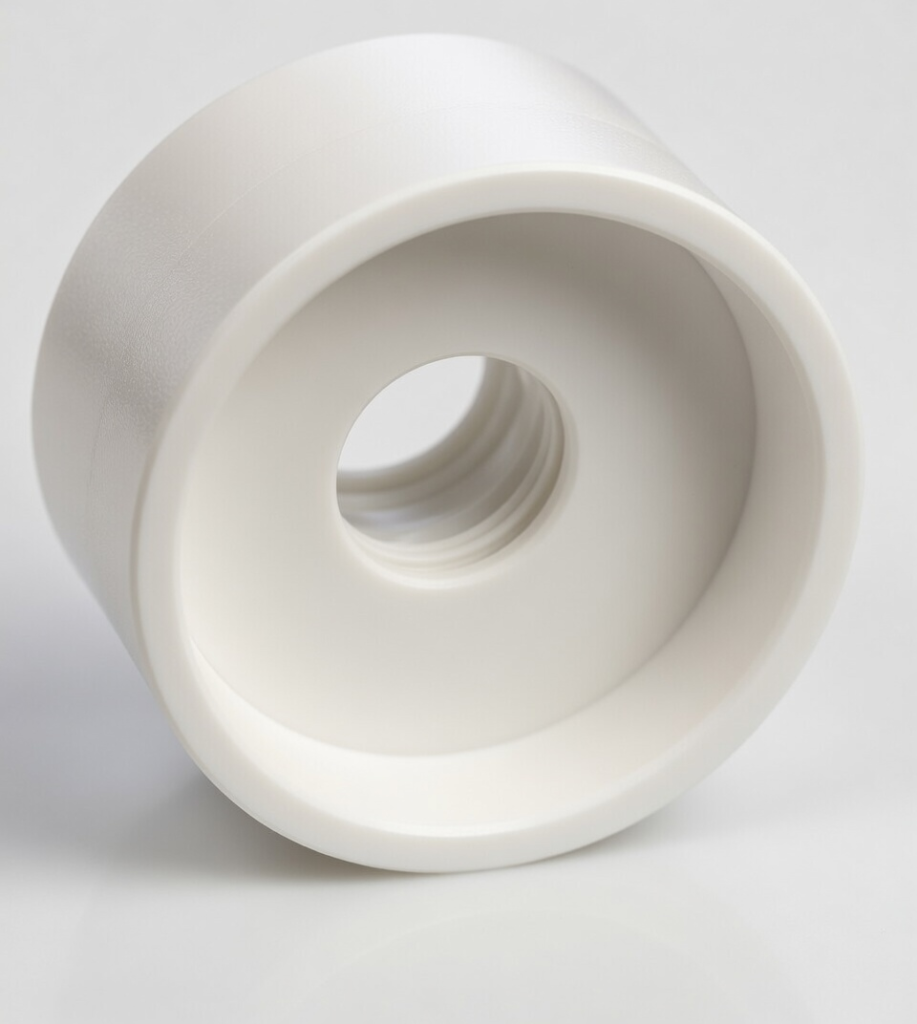

PTFE End Caps: PTFE is renowned for its excellent chemical resistance and low friction properties. It is virtually inert to most chemicals, making it suitable for use with highly corrosive substances. PTFE end caps also have a high melting point, adding to their suitability for demanding environments.
316L Stainless Steel End Caps: 316L stainless steel offers outstanding resistance to corrosion, particularly in chloride environments. It also has excellent mechanical properties and can withstand high pressure and temperature conditions. These characteristics make 316L stainless steel end caps ideal for heavy-duty applications.
Applications
For applications involving non-corrosive or mildly corrosive chemicals, PVC calibration columns are an economical choice. Industries widely use PVC due to its good chemical resistance, mechanical strength, and affordability.  PVC calibration columns provide accurate and reliable measurements without the higher cost associated with borosilicate glass columns. They are suitable for a variety of applications, including water treatment, food processing, and chemical storage.
The choice between borosilicate glass and PVC calibration columns depends on the specific requirements of the application. For instance, in environments where aggressive chemicals are present, borosilicate glass columns with appropriate end caps offer the necessary durability and chemical resistance. On the other hand, for less demanding applications where cost is a significant factor, PVC columns provide a cost-effective solution without compromising accuracy and reliability.
Precision
ProMixUSA pump calibration columns are designed to deliver precise and reliable flow rate measurements. Furthermore, ensuring optimal performance and efficiency in various industrial settings. These columns are essential tools for maintaining the accuracy and efficiency of pumping systems. These are critical components in many industrial processes. By providing accurate flow rate measurements, ProMixUSA calibration columns help prevent issues such as over- or under-dosing. When underdosing it can lead to inefficiencies, increased costs, and potential safety hazards.
The use of ProMixUSA pump calibration columns extends across a wide range of industries. In the chemical industry, accurate flow rate measurements are crucial for ensuring that chemical reactions proceed correctly and efficiently. In addition, it is in water treatment plants, calibration columns help monitor the flow of water and chemicals used in the treatment process. This ensures that we meet water quality standards. Finally, in the food and beverage industry, precise measurements are essential for maintaining product quality and consistency.
Environment
In addition to their practical applications, ProMixUSA pump calibration columns also contribute to environmental sustainability. By ensuring that pumping systems operate efficiently, these columns help reduce waste and minimize the environmental impact of industrial processes. Accurate flow rate measurements can lead to more efficient use of chemicals and other resources. Furthermore, reducing the overall consumption and disposal of hazardous materials.
Overall, ProMixUSA pump calibration columns are versatile, reliable, and essential tools for a wide range of industrial applications. Furthermore, their high-contrast blue lettering, protective lamination layer, and choice of durable materials. This makes them well-suited for accurate and reliable flow rate measurements in various environments. Whether used in the chemical industry, water treatment plants, or food and beverage production, ProMixUSA calibration columns ensure that pumping systems operate at peak efficiency. Furthermore, it contributes to improved performance, cost savings, and environmental sustainability.
Looking for Flow Meters?  Visit our Parent company
Looking to Mix multiple feeds into a single output fluid? Visit our Static Mixers

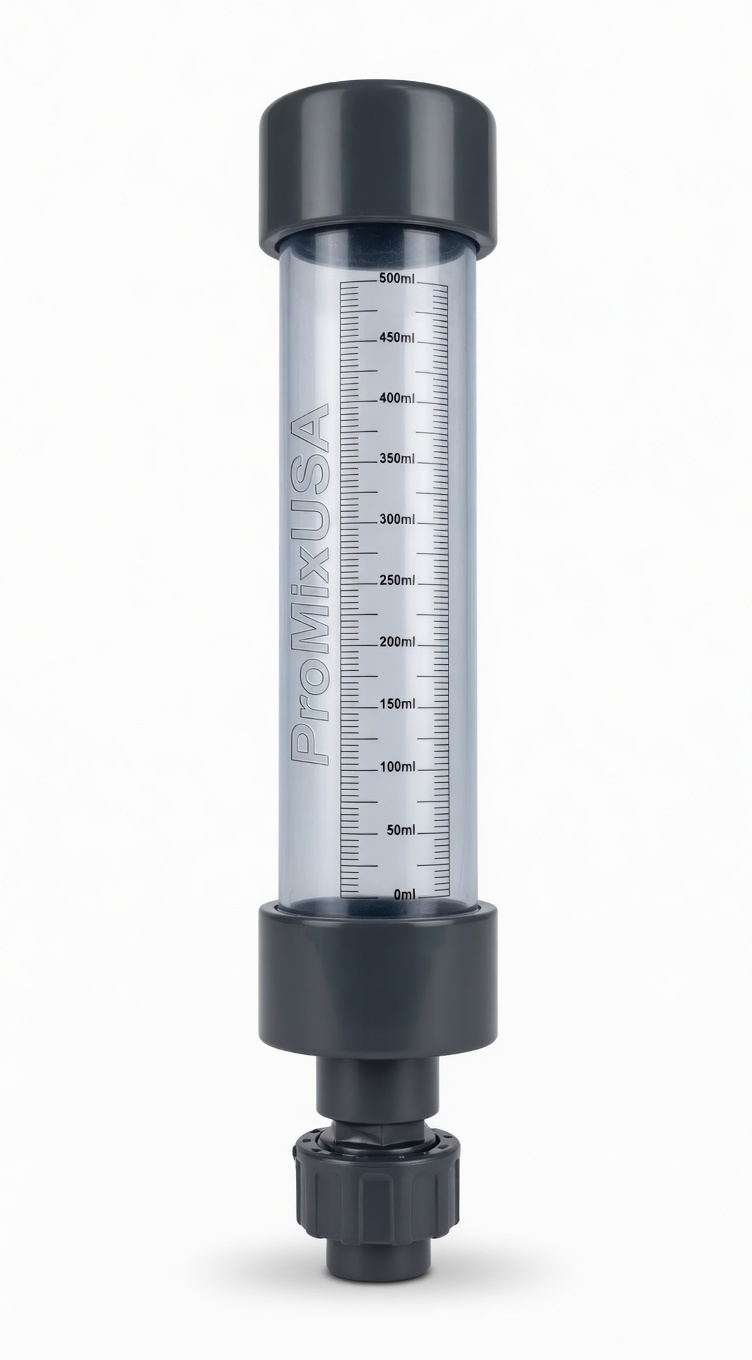

PVC Column Specifications
| mL/min | GPH | Fixed Cap | Top Slip Cap | Tube O.D. | Column Height | FNPT End | Weight
|
| 100 | 1.5 | 100 ML | 100 ML-SC | 1.315" | 12-1/2" | 1/2" | 7 oz |
| 250 | 4 | 250 ML | 250 ML-SC | 1.660" | 16-1/4" | 1/2" | 12 oz |
| 500 | 8 | 500 ML | 500 ML-SC | 2.375" | 16" | 3/4" | 1.4 lb |
| 1,000 | 16 | 1000 ML | 1000 ML-SC | 2.375" | 25" | 3/4" | 1.9 lb |
| 2,000 | 32 | 2000 ML | 2000 ML-SC | 3.500" | 24" | 1" | 4 lb |
| 4,000 | 64 | 4000 ML | 4000 ML-SC | 4.000" | 34" | 1" | 6.5 lb |
| 6,000 | 96 | 6000 ML | 6000 ML-SC | 5 | | 1-1/2" | 6.75 |
| 8,000 | 128 | 8,000 ML | 8000 ML-SC | 5.5 | | 1-1/2" | 7.2 |
| 10,000 | 160 | 10000 ML | 10000 ML-SC | 6.625" | 27" | 2" | 7.5 lb |
| 20,000 | 320 | 20000 ML | 20000 ML-SC | 6.625" | 46" | 2" | 10 lb |
| | | | | | | |
Glass Column Specifications
Capacity
ML/Min | Capacity
GPH | CPVC | PTFE | 316LSS | Tube OD | Column Height | FNPT End Connections | Weight
CPVC/PTFE/Stainless |
| 100 | 1.5 | 100ML-GL-CPVC | 100ML-GL-PTFE | 100ML-GL-316L | 1.75" | 13" | 1/2" | 1 / 1.1 /1.6 |
| 250 | 4 | 250ML-GL-CPVC | 250ML-GL-PTFE | 250ML-GL-316L | 2.25" | 16.5" | 1/2" | 1.8 / 2.0 / 3.1 |
| 500 | 8 | 500ML-GL-CPVC | 500ML-GL-PTFE | 500ML-GL-316L | 2.75" | 18" | 3/4" | 2.7 / 3.0 / 4.8 |
| 1,000 | 16 | 1000ML-GL-CPVC | 1000ML-GL-PTFE | 1000ML-GL-316L | 2.75" | 29" | 3/4" | 4.0 / 4.4 / 6.2 |
| 2,000 | 32 | 2000ML-GL-CPVC | 2000ML-GL-PTFE | 2000ML-GL-316L | 4.0" | 24" | 1" | 5.8 / 6.7 / 11.5 |
| 4,000 | 64 | 4000ML-GL-CPVC | 4000ML-GL-PTFE | 4000ML-GL-316L | 4.0" | 39" | 1" | 8.8 / 9.6 / 14.5 |
| | | | | | | | |
| | | | | | | | |
Installation
Preparation
Read the Manufacturer’s Manual:
Thoroughly review the manufacturer’s installation and operation manual. Understand all specific instructions and recommendations provided for the calibration column model you are installing.
Safety Precautions:
Ensure that the system is depressurized and drained before beginning the installation. Wear appropriate personal protective equipment (PPE), such as gloves, safety glasses, and any other equipment specified by your facility’s safety protocols.
Gather Tools and Materials:
Collect all necessary tools and materials, including wrenches, sealants, mounting brackets, and any other equipment specified by the manufacturer.
Installation Steps
Select Installation Location:
Choose a location that is easily accessible for both installation and future maintenance. Ensure the location is close to the pump and allows for straightforward connection to the piping system.
Prepare the Installation Site:
Clean the area where the calibration column will be installed. Ensure the surface is free of debris, dirt, and any substances that might interfere with the installation.
Mounting the Column:
Securely mount the calibration column using appropriate mounting brackets or supports. The column must be firmly positioned to minimize vibrations and movement during operation. Use the mounting holes provided on the column for this purpose.
Connect Inlet and Outlet:
Connect the inlet and outlet of the calibration column to the pump discharge line and the downstream piping, respectively. Use appropriate fittings and ensure that all connections are tight and secure. Utilize thread sealant or tape as specified by the manufacturer to prevent leaks.
Ensure Proper Alignment:
Verify that the calibration column is properly aligned vertically to ensure accurate measurements. Use a level to check the alignment and make any necessary adjustments to the mounting brackets or supports.
Install Any Required Accessories:
If the calibration column includes additional accessories, such as valves or sensors, install them according to the manufacturer’s instructions. Ensure all connections are secure and leak-free.
Check for Leaks:
Once all connections are made, pressurize the system gradually and check for any leaks around the fittings and connections. Tighten any connections as needed to ensure a secure and leak-free installation.
Initial Calibration and Testing
System Pressurization:
Slowly pressurize the system and monitor for any leaks or abnormal conditions. Ensure the calibration column is operating within the specified pressure range.
Initial Calibration:
Conduct an initial calibration test by running the pump and observing the flow rate measurements. Verify that the calibration column is accurately displaying the flow rates in milliliters per minute (ml/min) and gallons per hour (GPH).
Adjustments:
If the initial calibration test shows any discrepancies, make the necessary adjustments to the system. This may involve checking the alignment, tightening connections, or recalibrating the column as per the manufacturer’s instructions.
Final Inspection
Thorough Inspection:
Perform a comprehensive inspection of the entire installation. Ensure that all components are securely fastened and that the system is operating smoothly.
Documentation:
Record the installation details, including any adjustments made during the initial calibration and testing. This documentation will be useful for future maintenance and troubleshooting.
By following these detailed installation instructions, you can ensure that the calibration column is installed correctly and operates effectively. Proper installation and regular maintenance are key to maximizing the benefits of the calibration column and ensuring accurate and reliable flow measurements in your pump system.
Maintenance
Regular Inspections:
Periodically inspect the calibration column for signs of wear, damage, or leaks. Check the graduations and ensure that the high-contrast blue lettering remains legible.
Cleaning:
Clean the calibration column regularly to prevent the buildup of residue or contaminants. Follow the manufacturer’s cleaning guidelines to avoid damaging the column or its graduations.
Recalibration:
Depending on the usage and operating conditions, recalibrate the column at regular intervals to ensure continued accuracy. Follow the manufacturer’s instructions for recalibration procedures.
Component Replacement:
Replace any worn or damaged components as needed. This may include the bladder or diaphragm in the damper, seals, or other parts that may degrade over time.
Q&A
Q:Â What is a calibration column?
A:Â A calibration column, also known as a calibration cylinder, is a device used to measure the flow rate of a pump by using industry-standard graduations. It provides accurate measurements in milliliters per minute (ml/min) and gallons per hour (GPH).
Q:Â How does a calibration column work?
A:Â The calibration column is connected to the pump discharge. By observing the liquid level in the column and using the graduated scale, the operator can determine the flow rate of the pump over a specified time period, usually one minute.
Q:Â What materials are calibration columns made from?
A:Â Calibration columns are typically made from borosilicate glass or PVC. Borosilicate glass columns are suitable for corrosive chemical flow measurements, while PVC columns are an economical choice for non-corrosive or mild chemicals.
Q:Â What are the advantages of using borosilicate glass calibration columns?
A:Â Borosilicate glass calibration columns are resistant to corrosive chemicals and provide accurate and reliable measurements. They are available with CPVC, PTFE, and 316L stainless steel end caps to ensure chemical compatibility and durability.
Q:Â Why would someone choose a PVC calibration column?
A:Â PVC calibration columns are chosen for their cost-effectiveness and suitability for non-corrosive or mildly corrosive chemicals. They offer a durable and economical option for flow measurement in less aggressive environments.
Q:Â How do you install a calibration column?
A:Â To install a calibration column, mount it securely using appropriate brackets, connect the inlet and outlet to the pump discharge and downstream piping, ensure proper vertical alignment, and check for leaks. Gradually pressurize the system and conduct an initial calibration test to verify accurate measurements.
Q:Â How often should a calibration column be maintained?
A:Â Regular maintenance includes periodic inspections for wear, damage, or leaks, cleaning to prevent residue buildup, and recalibration at regular intervals to ensure continued accuracy. Maintenance frequency depends on the operating conditions and usage.
Q:Â What should be done if the calibration column displays inaccurate measurements?
A: If inaccurate measurements are observed, check the alignment and connections, inspect for leaks, and recalibrate the column as per the manufacturer’s instructions. If the problem persists, it may be necessary to replace worn or damaged components.
Q:Â Can calibration columns handle high-pressure systems?
A:Â Calibration columns are designed to handle specific pressure ranges as specified by the manufacturer. Always check the manufacturer’s guidelines to ensure the column is suitable for your system’s operating pressure.
Q:Â Are calibration columns suitable for all types of chemicals?
A:Â The suitability of a calibration column for specific chemicals depends on the material of the column and its end caps. Borosilicate glass columns with appropriate end caps are suitable for corrosive chemicals, while PVC columns are ideal for non-corrosive or mild chemicals.
Q:Â How can you ensure accurate readings from a calibration column?
A:Â To ensure accurate readings, install the column correctly with proper vertical alignment, maintain regular inspections and cleaning, calibrate periodically, and ensure the graduations and high-contrast lettering remain legible.
Q:Â What are the common applications of calibration columns?
A:Â Calibration columns are used in various industries, including chemical processing, water treatment, pharmaceuticals, oil and gas, and food and beverage processing, to accurately measure and monitor pump flow rates.
Q:Â What is the importance of the high-contrast blue lettering on calibration columns?
A:Â The high-contrast blue lettering enhances readability in all light conditions, making it easier for operators to read the graduations and ensure accurate flow rate measurements.
Q:Â Can calibration columns be customized for specific applications?
A: Many manufacturers offer customization options for calibration columns, including different materials, end cap configurations, and specific graduation scales to meet the unique requirements of various applications.
Q:Â What is the protective lamination layer on calibration columns for?
A: Th e protective lamination layer on the graduated scales of calibration columns protects against chemical attack and physical wear, ensuring long-term readability and accuracy of the measurements.
Advantages / Disadvantages
Advantages
Accuracy in Flow Measurement:
Calibration columns provide precise measurements of flow rates in milliliters per minute (ml/min) and gallons per hour (GPH), which is crucial for maintaining accuracy in various processes.
Versatility:
They can be used with a wide range of fluids, including chemicals, water, and other industrial liquids, making them suitable for diverse applications across multiple industries.
Ease of Use:
Calibration columns are straightforward to operate and interpret, with clear graduated scales that allow for quick and accurate reading of flow rates.
High Visibility:
The high-contrast blue lettering and graduated scales enhance readability, even in low-light conditions or when the column is in use.
Durability:
Calibration columns made from borosilicate glass or PVC are designed to withstand the demands of industrial environments. Borosilicate glass offers high resistance to chemical attack, while PVC is cost-effective for non-corrosive applications.
Protective Features:
The protective lamination layer on the scales helps guard against chemical damage and physical wear, extending the lifespan of the calibration column.
Cost-Effective Calibration Tool:
Calibration columns are relatively inexpensive compared to other flow measurement devices, providing a cost-effective solution for verifying and calibrating pump systems.
Maintenance Simplicity:
Regular maintenance is relatively simple, involving periodic inspections, cleaning, and recalibration to ensure continued accuracy.
Disadvantages
Limited to Specific Flow Rates:
Calibration columns are generally designed for specific flow rate ranges. They may not be suitable for very high or very low flow rates, limiting their applicability in some systems.
Physical Size:
The size and installation requirements of calibration columns may not be suitable for all systems, particularly those with space constraints or where compact equipment is needed.
Chemical Compatibility:
Although calibration columns can be made from materials resistant to various chemicals, they may not be suitable for all types of aggressive or highly corrosive substances without proper material selection.
Potential for Residue Build-Up:
Depending on the type of fluid being measured, there may be a risk of residue or deposits building up on the graduated scale, which can affect readability and accuracy.
Maintenance Requirements:
Regular maintenance is required to ensure the calibration column remains accurate and in good condition. This includes cleaning and recalibrating, which can be time-consuming.
Not Suitable for All Applications:
In some high-pressure or high-temperature applications, calibration columns may not be appropriate due to their pressure and temperature limitations.
Manual Reading:
Calibration columns typically require manual reading of measurements, which can be less convenient compared to automated flow measurement devices.
Risk of Breakage:
Glass calibration columns, while durable, are still susceptible to breakage if dropped or subjected to severe impact, potentially leading to costly replacements or safety hazards.
Overall, calibration columns are valuable tools for accurate flow measurement in many industrial and laboratory applications. However, their suitability depends on specific operational conditions and requirements, and they may need to be complemented with other measurement technologies in some scenarios.
Applications
Calibration columns can be used in a variety of applications across different industries. Some of the key applications include:
Chemical Processing:
In chemical plants, calibration columns are used to measure and monitor the flow rates of various chemicals. This ensures accurate dosing and mixing of chemicals for different processes.
Water Treatment:
Calibration columns are essential in water treatment facilities to monitor the flow rates of water and treatment chemicals. This helps maintain the proper chemical balance and ensures the efficiency of water purification processes.
Pharmaceutical Industry:
In pharmaceutical manufacturing, precise measurement of liquid flow rates is critical. Calibration columns are used to ensure accurate dosing of ingredients, which is crucial for product quality and consistency.
Food and Beverage Processing:
Calibration columns are used to measure the flow rates of liquids in food and beverage production. This includes monitoring the flow of ingredients, additives, and cleaning agents to ensure product quality and safety.
Oil and Gas Industry:
In the oil and gas industry, calibration columns are used to measure the flow rates of various fluids, including hydrocarbons, chemicals, and water. Accurate flow measurement is essential for process control and safety.
Industrial Manufacturing:
Calibration columns are used in various industrial manufacturing processes to monitor the flow rates of lubricants, coolants, and other process fluids. This helps maintain optimal operating conditions and extends the life of machinery.
Laboratories:
In laboratory settings, calibration columns are used for precise measurement of fluid flow rates in experimental setups. This is important for research and development activities, ensuring accurate and reproducible results.
Agriculture:
Calibration columns can be used in agricultural applications to measure the flow rates of irrigation water and fertilizers. This helps in efficient water and nutrient management, leading to better crop yields.
Environmental Monitoring:
Calibration columns are used in environmental monitoring systems to measure the flow rates of water and other fluids in natural water bodies and treatment plants. This helps in assessing the impact of industrial activities on the environment.
Automotive Industry:
In the automotive industry, calibration columns are used to measure the flow rates of fuels, oils, and other fluids during the testing and development of engines and other components. This ensures performance and efficiency.
HVAC Systems:
Calibration columns are used in heating, ventilation, and air conditioning (HVAC) systems to measure the flow rates of refrigerants and other fluids. This helps in maintaining the efficiency and performance of the system.
Pulp and Paper Industry:
In the pulp and paper industry, calibration columns are used to measure the flow rates of chemicals and other fluids used in the production process. This ensures product quality and operational efficiency.
Power Generation:
Calibration columns are used in power generation plants to measure the flow rates of cooling water, steam, and other fluids. Accurate flow measurement is essential for maintaining plant efficiency and safety.
Mining and Metallurgy:
In mining and metallurgical processes, calibration columns are used to measure the flow rates of process liquids and slurries. This helps in optimizing the extraction and processing of minerals.
Cosmetics and Personal Care:
In the cosmetics and personal care industry, calibration columns are used to measure the flow rates of ingredients during the production of lotions, creams, and other products. This ensures product consistency and quality.
These applications highlight the versatility and importance of calibration columns in ensuring accurate and reliable flow measurements across various industries.
