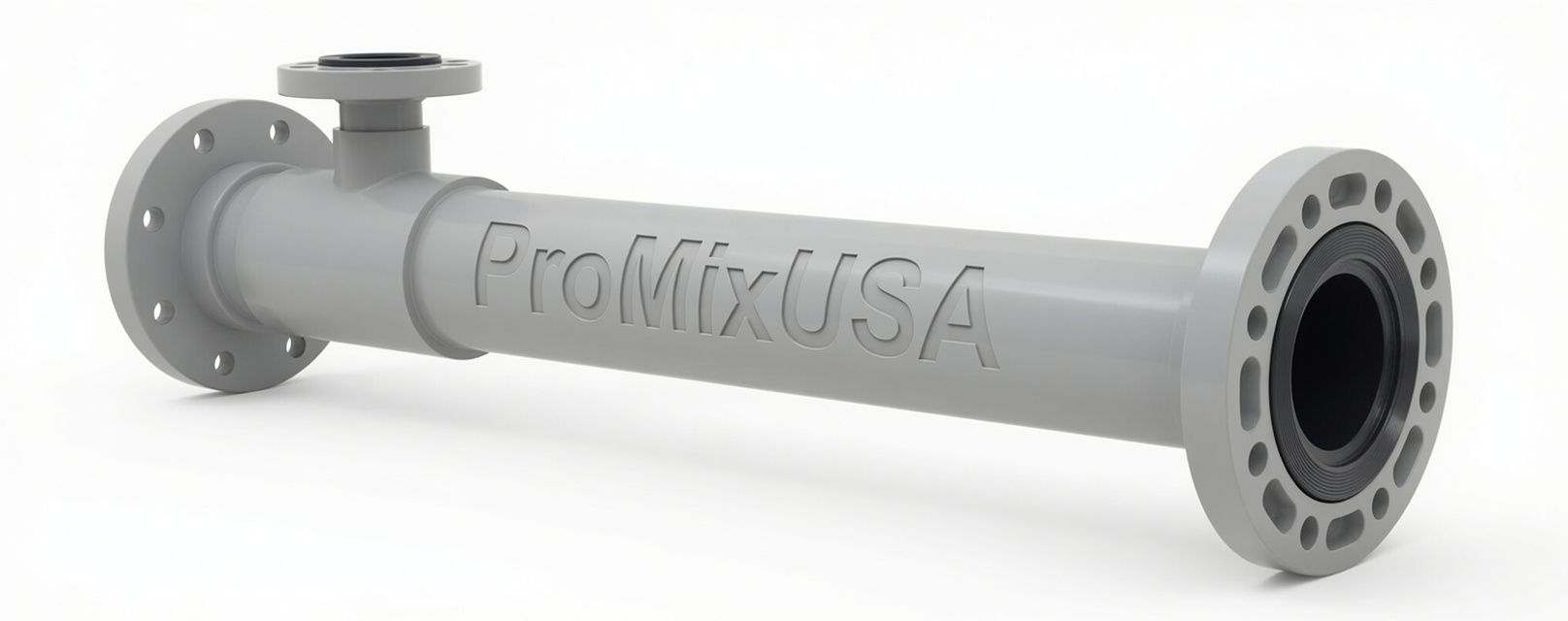

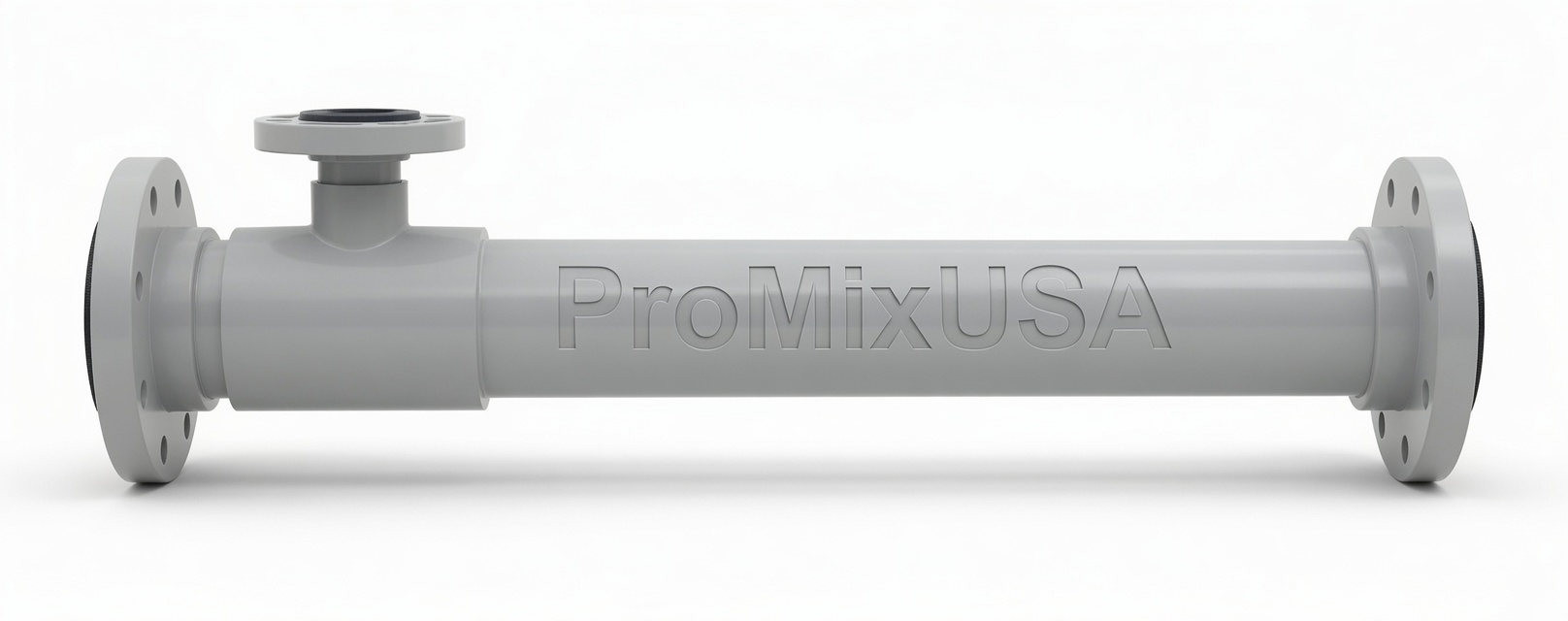

PVC and CPVC static mixers are essential components in many industrial processes, offering a cost-effective and versatile solution for blending fluids. In addition, manufacturers construct these mixers from Polyvinyl Chloride (PVC) and Chlorinated Polyvinyl Chloride (CPVC), materials that offer excellent chemical resistance and durability. Finally, users widely apply them in situations involving moderate temperatures and a diverse range of chemicals.
Material Characteristics and Construction
PVC and CPVC are thermoplastic materials, with PVC being a standard choice for many applications due to its affordability and chemical resistance. CPVC, on the other hand, is a modified version of PVC that undergoes a chlorination process, enhancing its temperature resistance and chemical stability. Furthermore, this makes CPVC suitable for applications that require handling higher temperatures than PVC can withstand. Finally, PVC can typically handle temperatures up to 140°F (60°C), while CPVC can endure temperatures up to 200°F (93°C).

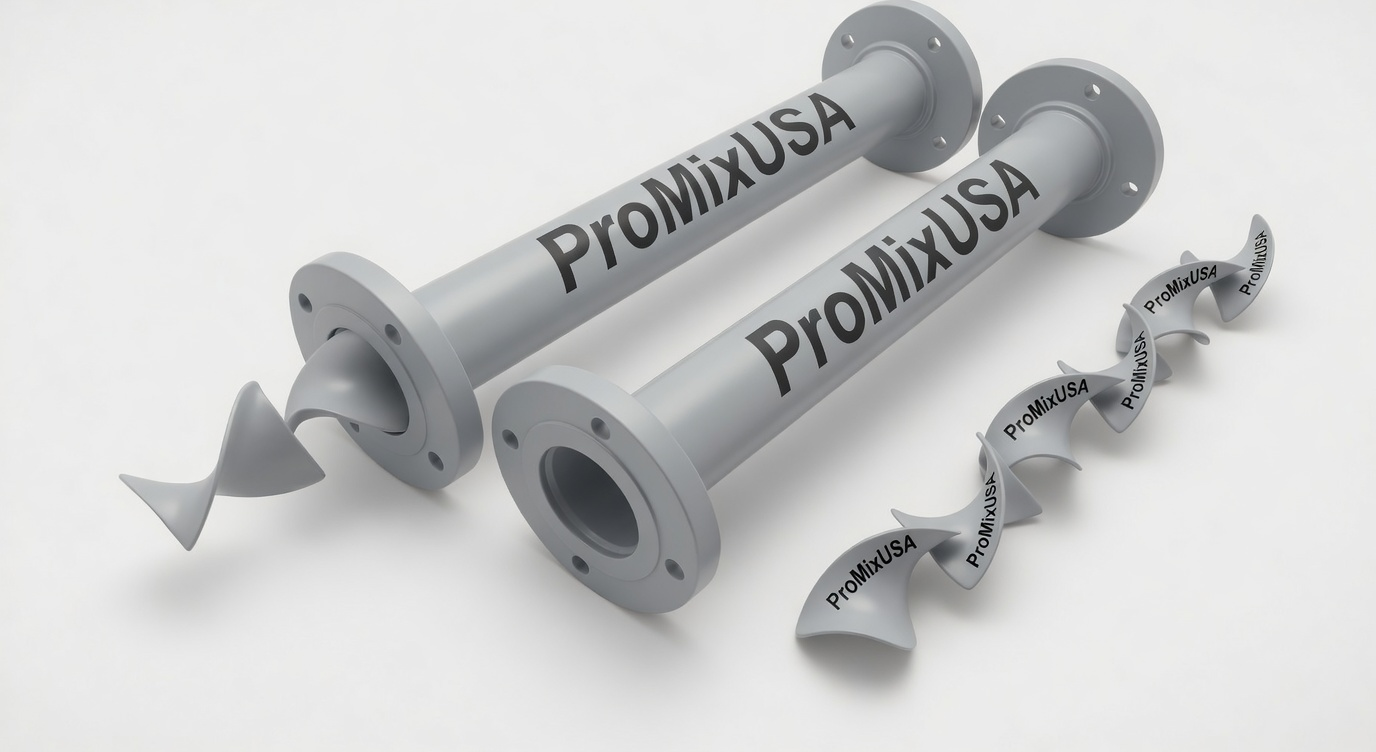

The construction of these static mixers involves a series of fixed, static mixing elements housed within a pipe or tube. Engineers design these elements in various configurations, such as helical, spiral, or blade, to create turbulence as fluids pass through them. The turbulence ensures thorough mixing of the fluids, resulting in a homogeneous mixture. In addition, you can customize the number and configuration of the mixing elements based on the specific application requirements, such as the viscosity of the fluids and the desired mixing efficiency.
Types of Connection Ends with PVC and CPVC Static Mixers
PVC and CPVC static mixers are available with various types of connection ends, making them adaptable to different piping systems. In addition, the most common connection types include:
Socket Ends:
Socket ends are designed to be solvent welded to PVC or CPVC pipes. In addition, this type of connection provides a strong and leak-proof joint, commonly used in plumbing and low-pressure applications. Finally, the solvent welding process involves applying a solvent-based adhesive to the socket and the pipe, which chemically bonds them together.

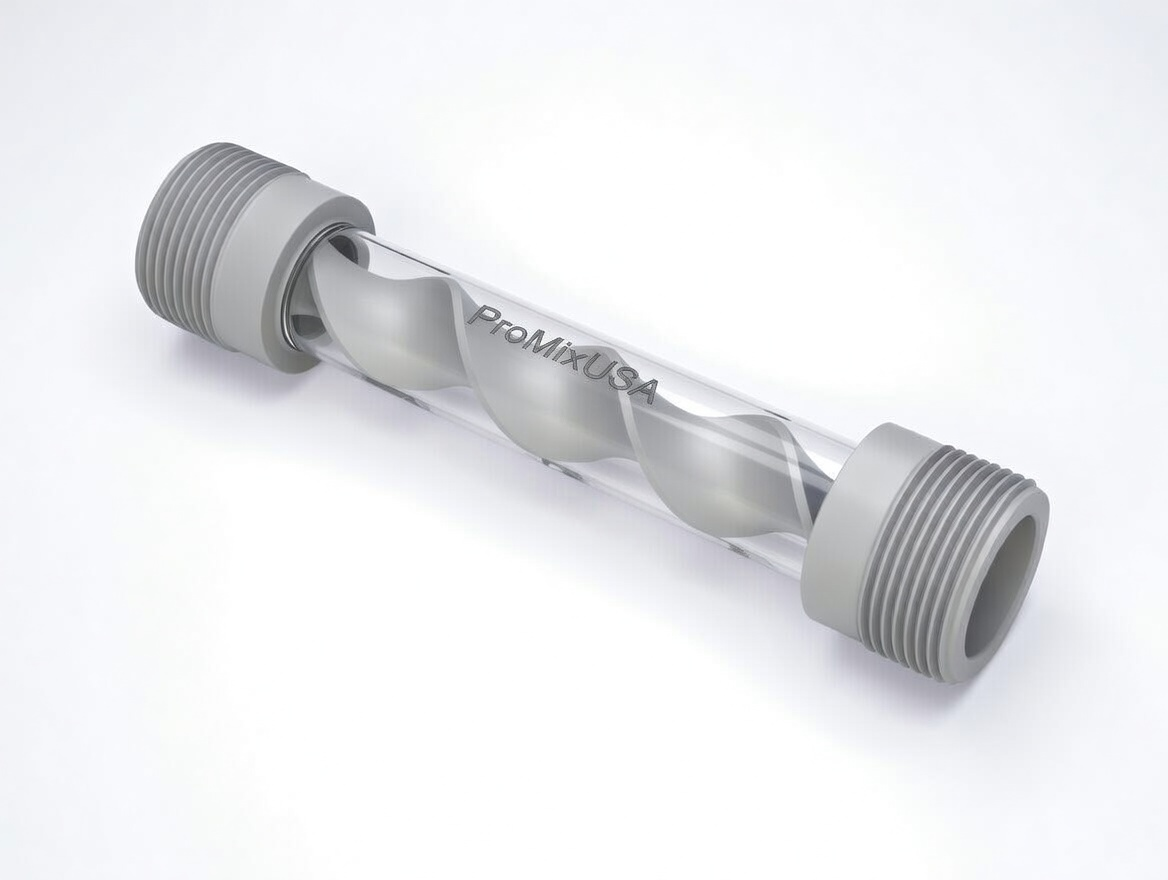

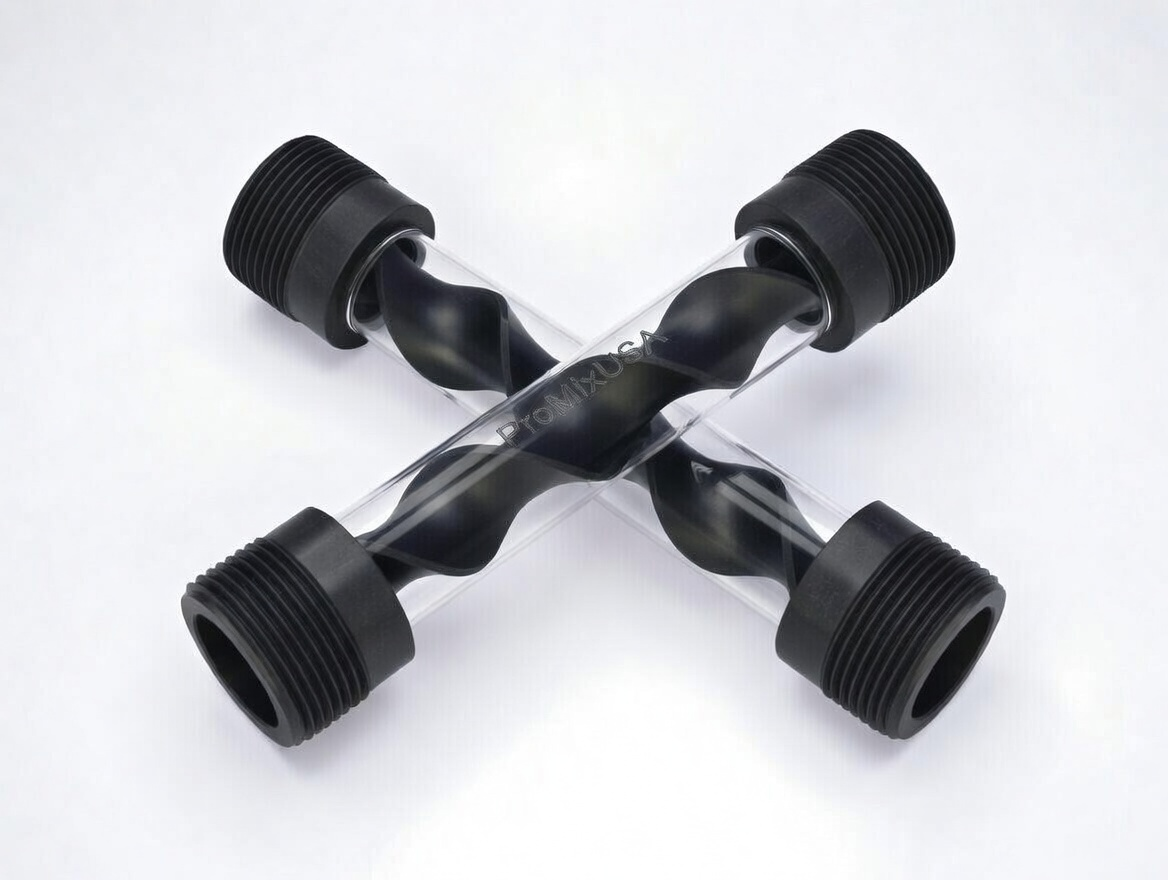

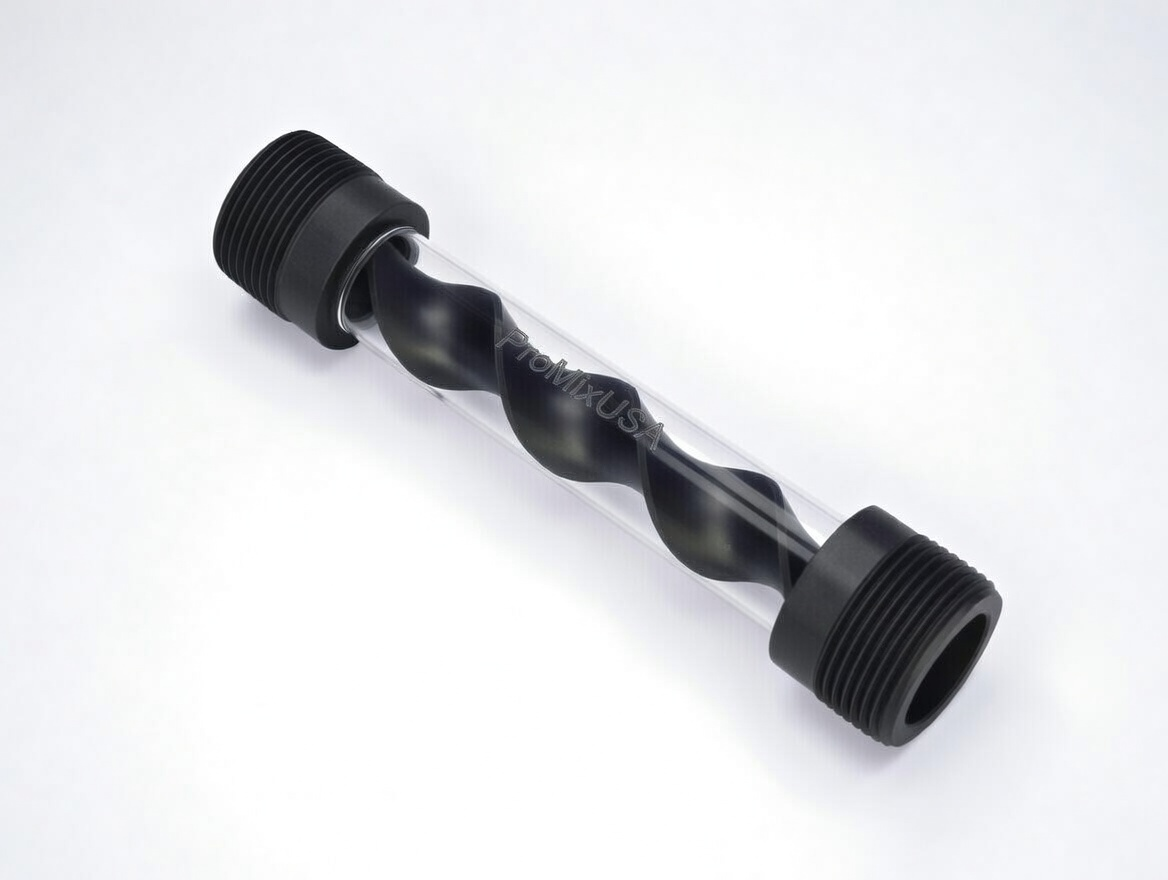

Threaded Ends:
Threaded ends, available in both male and female versions, allow for easy installation and removal. In addition, systems that require frequent disassembly of the mixer for maintenance or cleaning benefit from this connection type. Furthermore, threaded connections provide a reliable seal and are commonly used in medium-pressure applications.

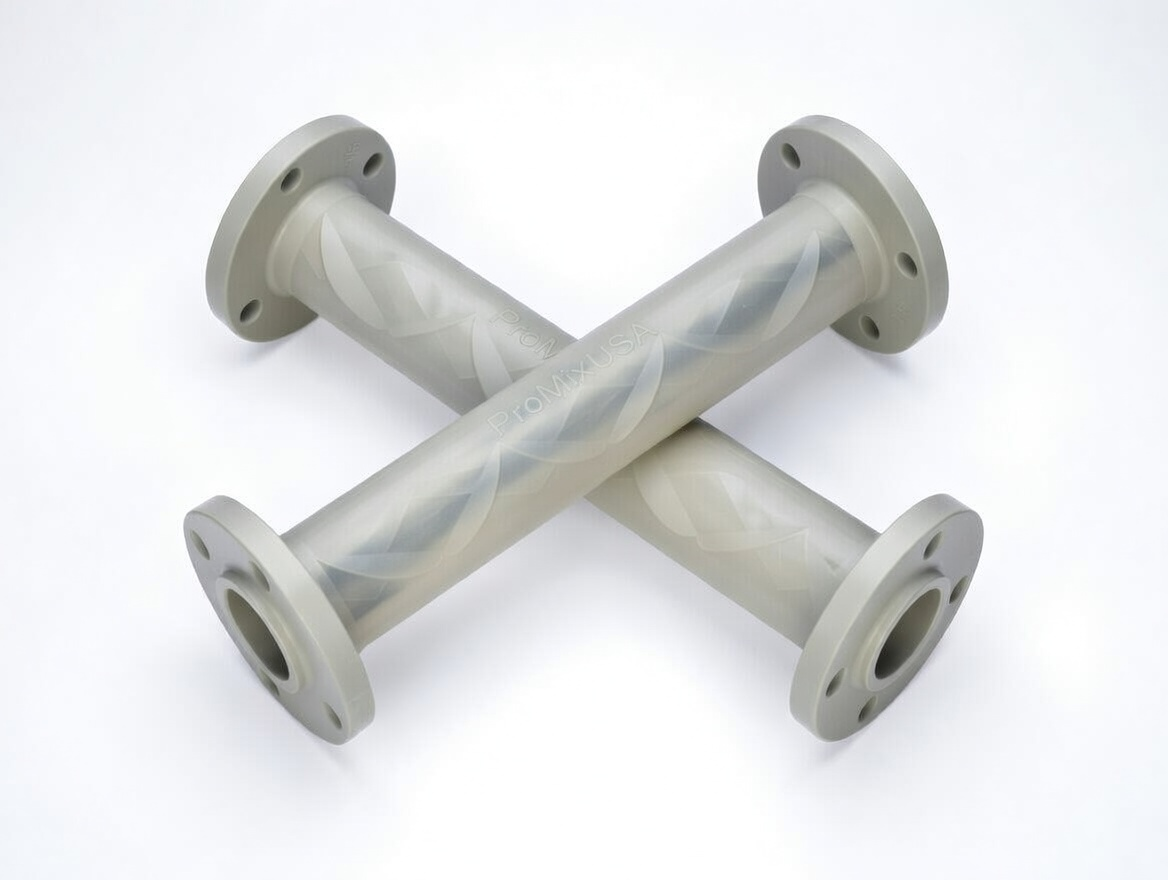

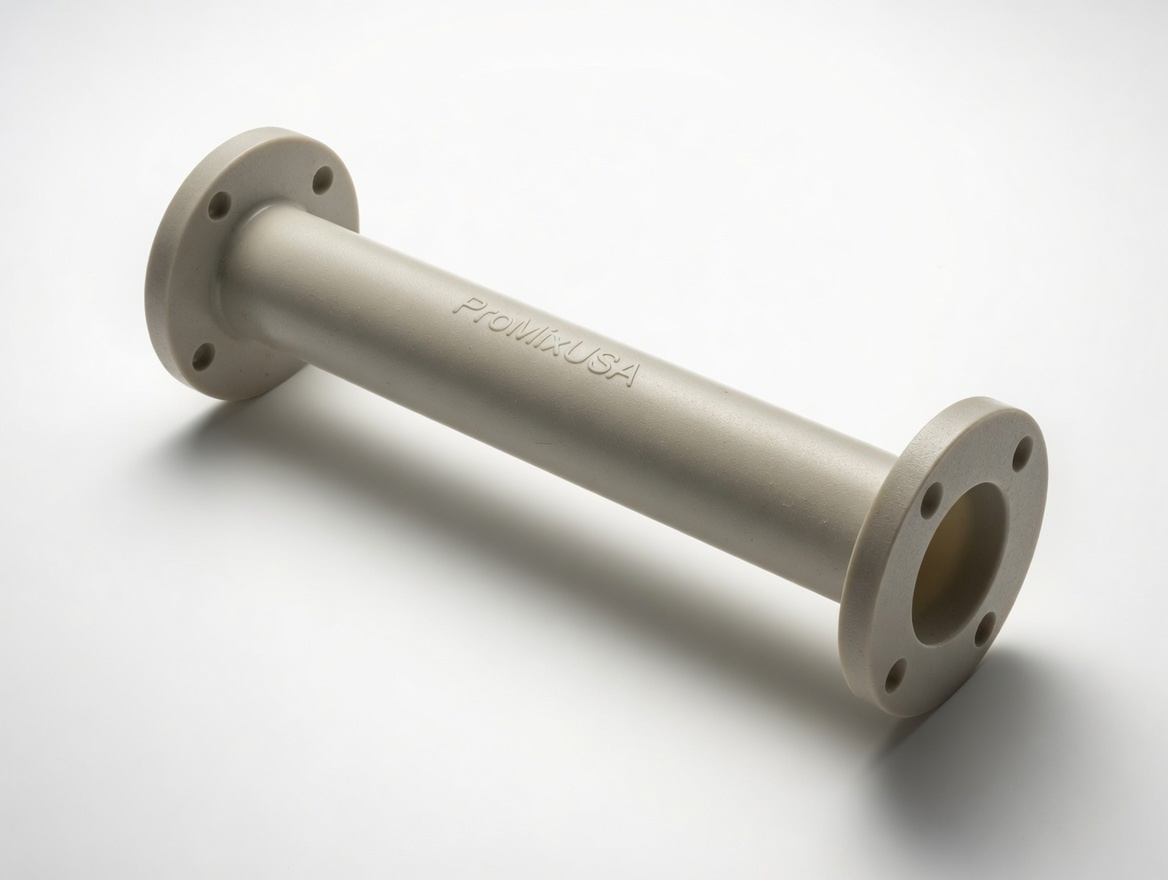

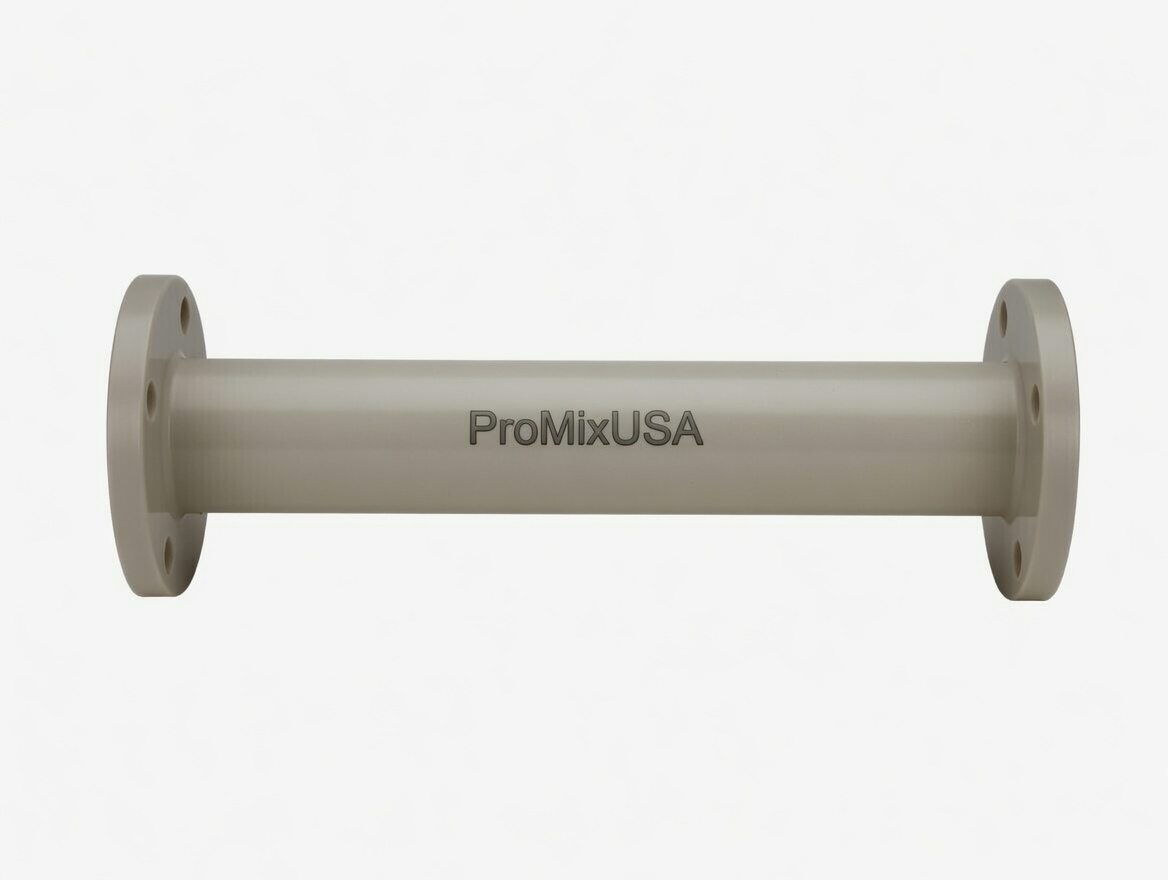

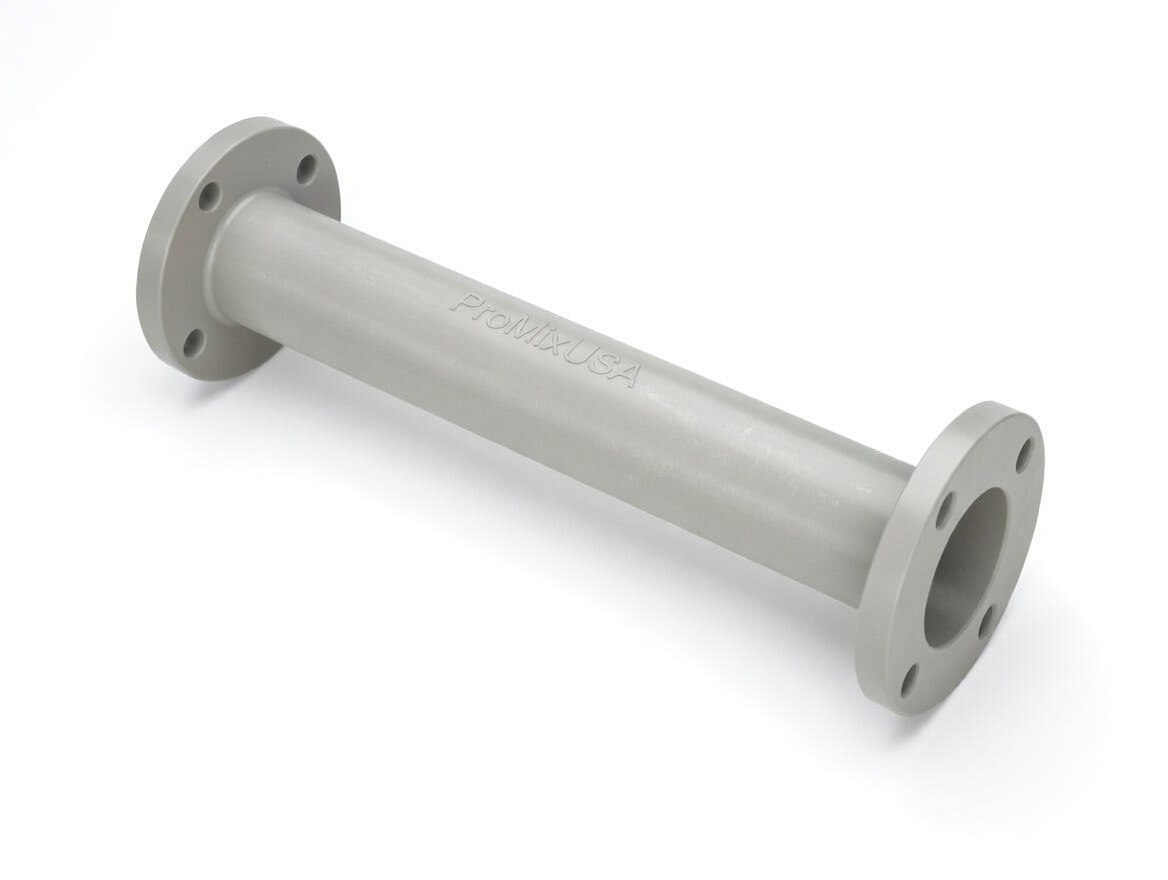

Flanged Ends:
Flanged connections consist of flanges attached to the ends of the mixer. You can bolt these flanges together with the corresponding flanges on the piping system to create a strong and durable joint. Flanged ends are ideal for larger diameter pipes or systems with higher pressure requirements, offering ease of installation and disassembly.
Spigot Ends:
You can insert spigot ends into other fittings or connect them using couplings. They offer versatility for adapting the mixer to various piping systems and suit a wide range of applications.
Conclusion of PVC and CPVC Static Mixers
PVC and CPVC static mixers are versatile, cost-effective, and durable solutions for mixing applications across various industries. Their chemical resistance, ease of installation, and affordability make them an attractive choice for many processes. However, users must consider their limitations, such as temperature and pressure restrictions, to ensure optimal performance and longevity. With proper selection and maintenance, PVC and CPVC static mixers can provide reliable and efficient mixing.
Other Types of:
Metal Alloy Mixers
PFA Mixers
Sanitary Mixers
Specifications

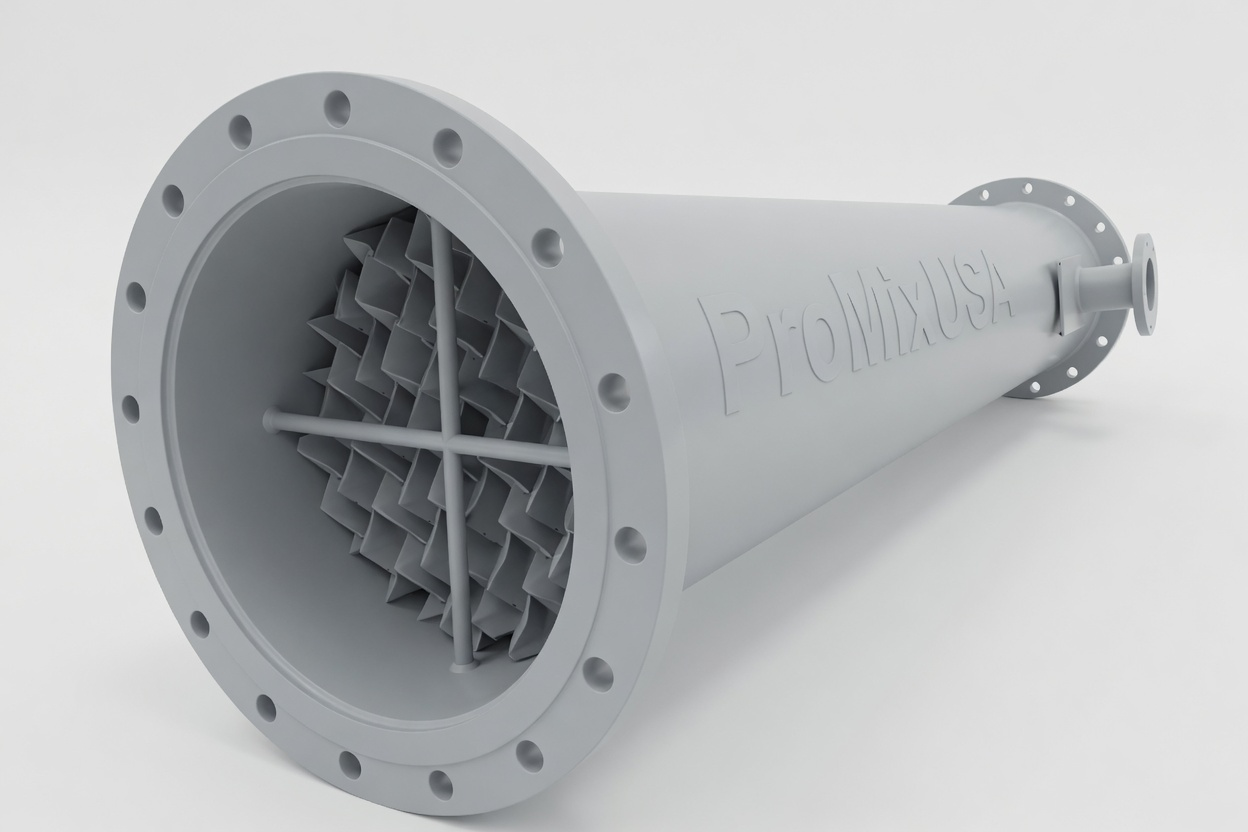

PVC Static Mixers
Material:
- Body: Polyvinyl Chloride (PVC)
- Mixing Elements: PVC
Temperature Range:
- Operating Temperature: Up to 60°C (140°F)
- Maximum Continuous Temperature: 70°C (158°F)
Pressure Rating:
- Maximum Pressure: 10-16 bar (150-230 psi), depending on the design and wall thickness
Size and Dimensions:
- Pipe Diameter: Typically, from 1/2 inch to 8 inches (12.7 mm to 203.2 mm)
- Length: Customizable based on application
Connections:
- Types: Threaded, flanged, or socket weld
- Standards: ANSI, DIN, or custom flanges
Mixing Elements:
- Types: Helical, spiral, or blade configurations
- Design: Typically designed to promote turbulence and ensure thorough mixing
Applications:
- Use Cases: Water treatment, chemical processing, and general fluid mixing where chemical resistance and cost-effectiveness are priorities
Chemical Compatibility:
- Compatible With: Most acids, bases, and salts; not suitable for strong solvents or high temperatures
Maintenance:
- Cleaning: Can be cleaned with standard cleaning agents suitable for PVC

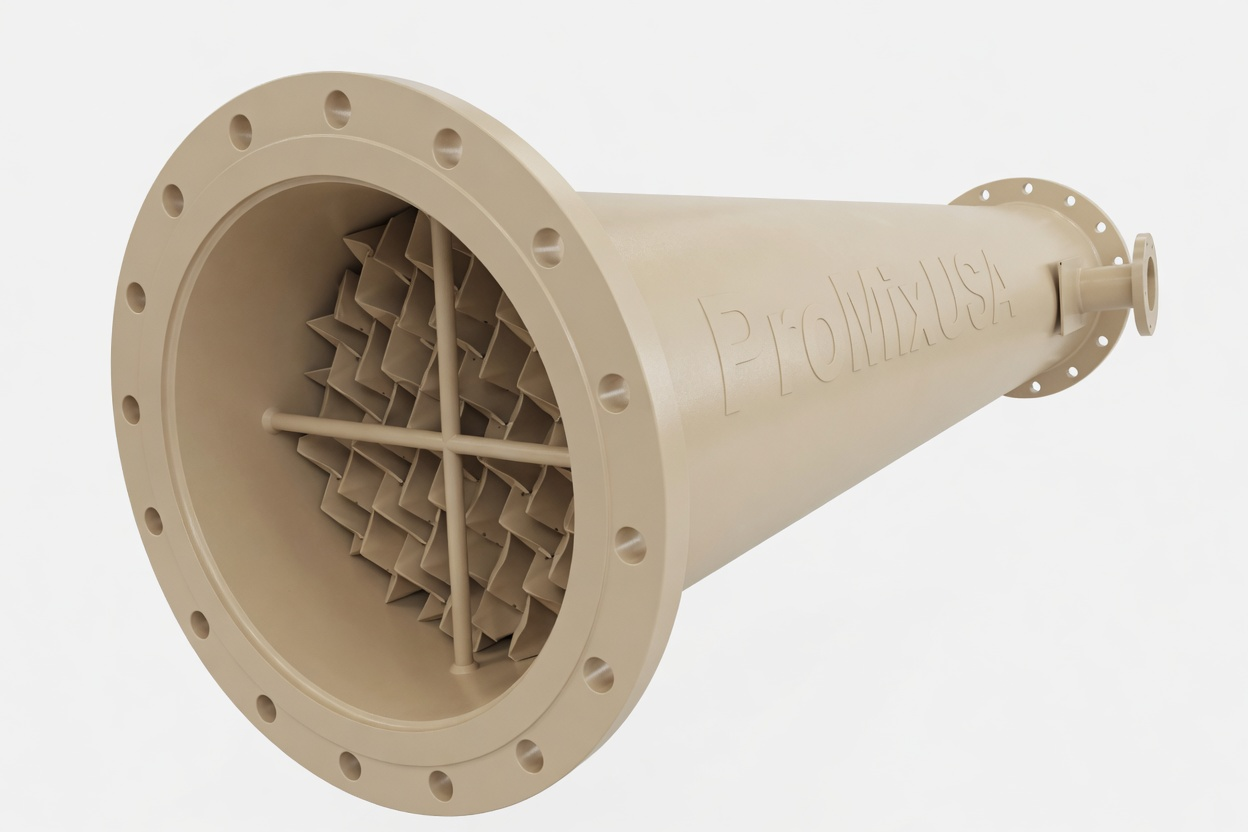

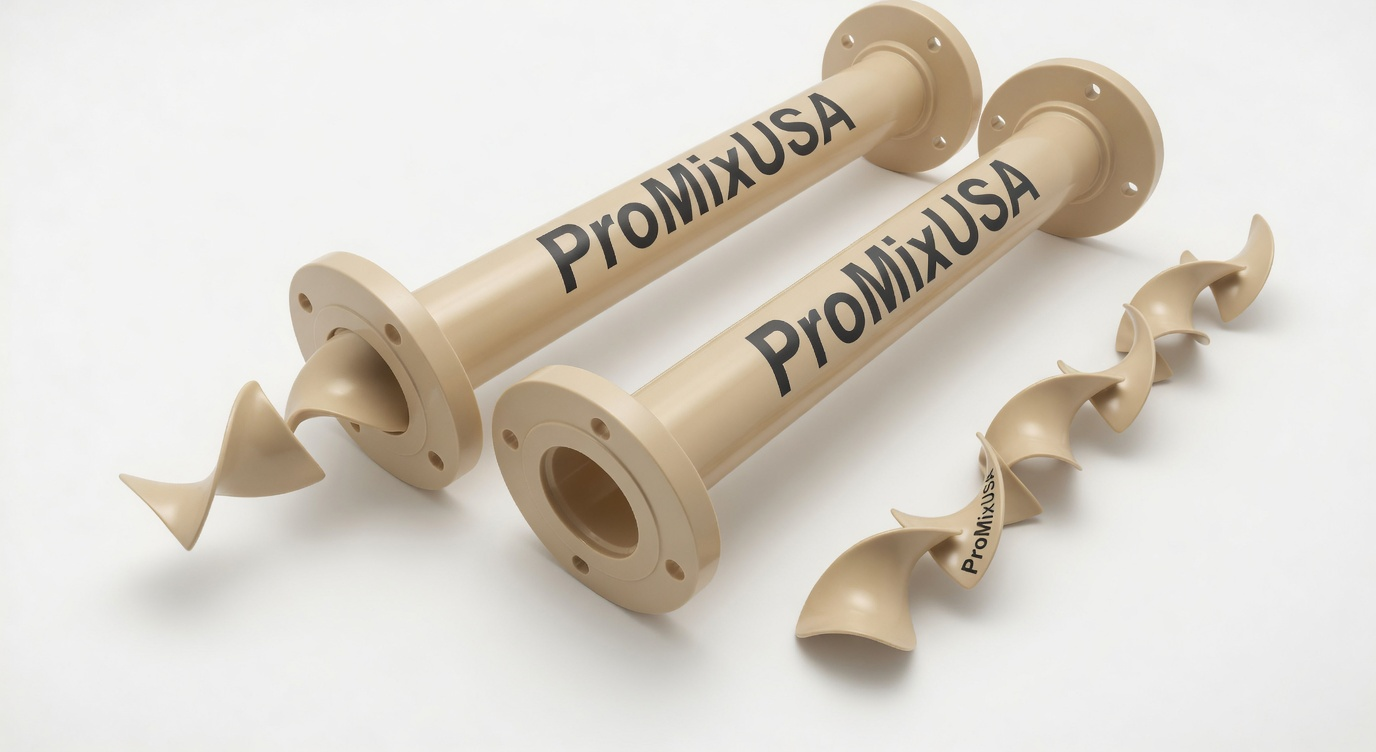

CPVC Static Mixers
Material:
- Body: Chlorinated Polyvinyl Chloride (CPVC)
- Mixing Elements: CPVC
Temperature Range:
- Operating Temperature: Up to 90°C (194°F)
- Maximum Continuous Temperature: 100°C (212°F)
Pressure Rating:
- Maximum Pressure: 10-20 bar (150-290 psi), depending on the design and wall thickness
Size and Dimensions:
- Pipe Diameter: Typically, from 1/2 inch to 8 inches (12.7 mm to 203.2 mm)
- Length: Customizable based on application
Connections:
- Types: Threaded, flanged, or socket weld
- Standards: ANSI, DIN, or custom flanges
Mixing Elements:
- Types: Helical, spiral, or blade configurations
- Design: Typically designed to enhance mixing efficiency through turbulence
Applications:
- Use Cases: Chemical processing, hot water systems, and applications involving higher temperatures or corrosive fluids
Chemical Compatibility:
- Compatible With: Stronger acids, bases, and a wider range of chemicals compared to PVC; avoid strong solvents
Maintenance:
- Cleaning: Can be cleaned with standard cleaning agents suitable for CPVC
These specifications provide a general overview; for specific applications, always refer to the manufacturer’s data sheet for detailed information and recommendations.
Installation
Installing a static mixer requires careful planning and attention to detail to ensure optimal performance and longevity. Static mixers are devices used to mix fluids in a pipeline without moving parts, relying on the flow energy to achieve mixing. The installation process involves several key steps, including preparation, installation, and post-installation checks. Below is a detailed procedure for installing a static mixer:
Preparation
Select the Installation Location:
- Choose a suitable location in the pipeline where the static mixer can be installed. Ensure there is sufficient space for installation and future maintenance.
- Consider the flow profile and ensure there are sufficient straight pipe lengths upstream and downstream of the mixer to allow for proper mixing. Typically, a length of 5-10 pipe diameters upstream and 3-5 pipe diameters downstream is recommended.
Verify Compatibility:
- Ensure that the static mixer material is compatible with the fluids being processed to avoid corrosion or degradation.
- Check that the mixer size matches the pipeline diameter and the flow rate requirements.
Prepare the Tools and Equipment:
- Gather the necessary tools, such as wrenches, gaskets, flanges, bolts, nuts, and a torque wrench.
- Have the installation manual and technical drawings on hand for reference.
Safety Precautions:
- Ensure the pipeline is depressurized and drained of any fluids.
- Follow all relevant safety protocols, including wearing appropriate personal protective equipment (PPE).
Installation
Prepare the Pipeline:
- Cut the pipeline at the designated installation point, ensuring clean, straight cuts.
- Remove any burrs, debris, or sharp edges from the cut ends to prevent damage to the mixer and ensure a proper seal.
Install the Flanges (if not already present):
- Attach the appropriate flanges to the pipeline ends where the mixer will be installed.
- Ensure the flanges are aligned correctly and securely attached.
Insert the Static Mixer:
- Place the static mixer between the flanges, ensuring the correct orientation as specified by the manufacturer. Some mixers have a preferred flow direction, marked with an arrow.
- Insert gaskets between the flanges and the mixer to ensure a tight seal.
Secure the Mixer:
- Align the mixer and the pipeline flanges, ensuring proper alignment to avoid stress on the pipeline.
- Insert and hand-tighten the bolts and nuts evenly around the flange.
- Using a torque wrench, tighten the bolts in a crisscross pattern to the manufacturer’s specified torque values. This ensures even pressure distribution and prevents leaks.
Post-Installation Checks
Leak Test:
- Once the mixer is securely installed, conduct a leak test by slowly pressurizing the pipeline and inspecting for leaks at the flange connections.
- If any leaks are detected, depressurize the system and retighten the bolts as needed.
Flow Test:
- Gradually introduce the fluid flow to ensure the static mixer operates correctly.
- Observe the mixing performance and verify that the desired mixing level is achieved.
Final Inspection:
- Check that all components are securely installed and that there are no visible signs of damage or misalignment.
- Ensure that the area around the mixer installation is clean and free of debris.
Documentation and Maintenance
Record Keeping:
- Document the installation details, including the location, date, and personnel involved.
- Record any observations during the installation and testing phases, including torque values used for tightening the bolts.
Maintenance Schedule:
- Establish a maintenance schedule based on the manufacturer’s recommendations and the specific application requirements.
- Regularly inspect the mixer and surrounding pipeline for signs of wear, corrosion, or damage.
Operational Guidelines:
- Provide training for personnel on the operation and maintenance of the static mixer.
- Ensure that any operational changes, such as variations in flow rate or fluid composition, are communicated and assessed for their impact on the mixer’s performance.
By following these installation procedures, you can ensure the reliable operation of the static mixer and achieve consistent mixing results. Proper installation is crucial for the longevity and efficiency of the mixer, as well as for maintaining the safety and integrity of the entire process system.
Maintenance
Maintenance Procedure for Static Mixers
Purpose:
This procedure outlines the steps required to maintain static mixers in optimal working condition, ensuring efficient performance, longevity, and safety.
Preparation
Safety Precautions:
- Before starting maintenance, ensure the system is completely shut down, depressurized, and drained of any fluids.
- Lock out and tag out (LOTO) the system to prevent accidental startup.
- Wear appropriate personal protective equipment (PPE) including gloves, goggles, and protective clothing.
Tools and Materials:
- Wrenches and torque wrench
- Cleaning brushes and tools
- Appropriate cleaning solvents (compatible with the fluids used in the system)
- Replacement gaskets and seals
- Inspection tools (flashlight, mirrors, borescope, if necessary)
- Lubricants suitable for the application
Inspection
External Inspection:
- Visually inspect the static mixer and surrounding piping for any signs of leaks, corrosion, or mechanical damage.
- Check for signs of wear or misalignment in the flanges and bolts.
Internal Inspection:
- Remove the static mixer from the pipeline following proper disassembly procedures.
- Inspect the internal mixing elements for any signs of wear, corrosion, or blockage.
- Check for residue buildup on the mixing elements and inside the housing.
- Ensure that all internal surfaces, including the mixing elements and housing, maintain the specified surface finish (e.g., 20 Ra or better for sanitary applications).
Cleaning
Cleaning Process:
- Clean the mixing elements and internal housing thoroughly using appropriate solvents and cleaning tools.
- For sanitary applications, use approved food-grade or pharmaceutical-grade cleaning agents.
- Carefully remove any residue or buildup without damaging the mixing elements or the housing.
Rinse and Dry:
- Rinse all components with clean water or an appropriate solvent to remove any remaining cleaning agent residues.
- Dry all components thoroughly to prevent corrosion.
Component Replacement
Gaskets and Seals:
- Inspect all gaskets and seals for wear, cracks, or deformation.
- Replace gaskets and seals with new ones of the appropriate material and size.
Mixing Elements (if applicable):
- If mixing elements show significant wear or damage, replace them according to the manufacturer’s specifications.
Reassembly and Reinstallation
Reassembly:
- Reassemble the static mixer, ensuring all components are correctly aligned and seated.
- Use a torque wrench to evenly tighten all bolts to the manufacturer’s specified torque values in a crisscross pattern to ensure a proper seal.
Reinstallation:
- Reinstall the static mixer into the pipeline, ensuring proper alignment and orientation.
- Verify that the flow direction marked on the mixer aligns with the actual flow direction in the pipeline.
Final Checks
Leak Test:
- Gradually repressurize the system and check for leaks at all connections and seals.
- If leaks are detected, depressurize the system and retighten the bolts as necessary.
Operational Test:
- Once the system is confirmed to be leak-free, gradually introduce the fluid and check the mixing performance.
- Observe the system for any unusual noises, vibrations, or other signs of improper operation.
Documentation
Maintenance Log:
- Record all maintenance activities, including date, personnel involved, observations, and any components replaced.
- Note any issues encountered and actions taken to resolve them.
Scheduling:
- Update the maintenance schedule based on the findings from the current maintenance session.
- Schedule the next maintenance inspection according to the manufacturer’s recommendations or based on operational experience.
Training and Safety Review
Personnel Training:
- Ensure that all personnel involved in maintenance activities are adequately trained and familiar with the static mixer and safety procedures.
Safety Review:
- Review safety procedures and protocols periodically to ensure compliance and address any new hazards or changes in the system.
Continuous Improvement
Performance Monitoring:
- Monitor the performance of the static mixer continuously, looking for signs of reduced efficiency or increased wear.
- Adjust maintenance frequency and procedures based on observed performance trends.
By adhering to this maintenance procedure, you can ensure that your static mixer operates efficiently, safely, and consistently. Regular maintenance helps prevent unexpected failures, prolongs the lifespan of the equipment, and maintains the quality of the mixing process.
Q&A
Q1: What is a PVC and CPVC static mixers?
A1: PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride) static mixers are blending devices used to mix fluids in various industrial processes. They consist of a series of stationary mixing elements housed within a pipe or tube, designed to create turbulence and ensure thorough mixing of fluids passing through them. These mixers are constructed from PVC or CPVC, materials known for their chemical resistance and durability in a range of environments.
Q2: What are the differences between PVC and CPVC static mixers?
A2: The primary difference between PVC and CPVC static mixers lies in their temperature and chemical resistance:
PVC Static Mixers: Suitable for applications with temperatures up to 140°F (60°C). PVC offers good chemical resistance to a wide range of acids, alkalis, and salts.
CPVC Static Mixers: Can withstand higher temperatures, up to 200°F (93°C). CPVC provides enhanced chemical resistance, making it suitable for more aggressive chemical environments and higher-temperature processes.
Q3: What types of connection ends are available for PVC and CPVC static mixers?
A3: PVC and CPVC static mixers can be equipped with various types of connection ends to suit different installation needs:
Socket Ends: These allow the mixer to be solvent-welded directly to PVC or CPVC piping systems. This type of connection is common in plumbing and low-pressure applications.
Threaded Ends: Threaded (male or female) ends facilitate easy installation and removal, making them suitable for systems that may require frequent disassembly or maintenance.
Flanged Ends: Flanged connections provide a secure and durable joint, often used in larger diameter pipes or systems with higher pressure requirements. Flanges can be bolted together, ensuring a strong seal.
Spigot Ends: These ends are plain and can be inserted into other fittings or connected using couplings. They are versatile and can be adapted to various piping systems.
Q4: What are the advantages of using PVC and CPVC static mixers?
A4: Advantages include:
Cost-Effectiveness: PVC and CPVC are generally more affordable than metal alloys, making them cost-effective options for many applications.
Chemical Resistance: Both materials offer good resistance to a broad range of chemicals, including acids, bases, and salts.
Corrosion Resistance: PVC and CPVC do not corrode, making them ideal for handling corrosive fluids.
Lightweight: These materials are lightweight compared to metal, simplifying installation and handling.
Ease of Installation: Available in various connection types, PVC and CPVC static mixers can be easily installed and integrated into existing systems.
Q5: What are the limitations of PVC and CPVC static mixers?
A5: Limitations include:
Temperature Restrictions: PVC and CPVC have lower maximum temperature tolerances compared to some metals, limiting their use in high-temperature processes.
Pressure Limitations: These materials may not withstand very high pressures, especially in larger pipe sizes.
Mechanical Strength: While durable, PVC and CPVC are less mechanically strong compared to metal alloys and can be more prone to damage under physical stress.
Q6: In which industries are PVC and CPVC static mixers commonly used?
A6: Common industries include:
Water and Wastewater Treatment: For dosing and mixing chemicals such as chlorine and pH adjusters.
Chemical Processing: In systems where, chemical resistance is crucial, but temperatures are moderate.
Food and Beverage: For blending ingredients in a hygienic and corrosion-resistant manner.
Aquariums and Pools: For mixing disinfectants and other water treatments.
Agriculture: For mixing fertilizers, pesticides, and other agricultural chemicals.
Q7: How do I choose the appropriate connection end for my PVC or CPVC static mixer?
A7: The choice of connection end depends on several factors:
System Compatibility: Ensure the connection type matches the existing piping system.
Pressure and Temperature Requirements: Consider the operating conditions of the system to choose a connection that can handle the necessary pressures and temperatures.
Ease of Maintenance: If frequent maintenance is expected, threaded or flanged connections may be preferable for easy disassembly.
Installation Environment: In environments with limited space or accessibility, certain connection types (e.g., socket ends) may be easier to install.
Q8: Can PVC and CPVC static mixers be used for mixing gases?
A8: Yes, PVC and CPVC static mixers can be used for mixing gases, provided the gases are compatible with the material properties and the operating conditions (such as pressure and temperature) are within the limits of the material.
Q9: Are PVC and CPVC static mixers suitable for sanitary applications?
A9: While PVC and CPVC offer good chemical resistance and are easy to clean, they may not meet all sanitary standards required in highly regulated industries, such as pharmaceuticals. For such applications, it is crucial to ensure the material complies with the relevant sanitary standards and certifications.
Q10: How should PVC and CPVC static mixers be maintained?
A10: Maintenance includes regular inspection for signs of wear or damage, especially at connection points. Cleaning procedures should follow the guidelines for the specific fluids being handled, ensuring no residue or buildup affects performance. Proper storage and handling are also important to prevent physical damage or exposure to incompatible chemicals.
These Q&A points provide a comprehensive overview of PVC and CPVC static mixers, covering their properties, applications, and considerations for selection and use.
Advantages / Disadvantages
Advantages
Chemical Resistance: PVC and CPVC offer excellent resistance to a wide range of chemicals, including acids, bases, and salts. This makes them suitable for various industrial applications where chemical compatibility is crucial.
Cost-Effectiveness: These materials are generally more affordable than metal alloys, making them a cost-effective choice for many mixing applications, especially where high temperature or extreme pressure resistance is not required.
Corrosion Resistance: Unlike metals, PVC and CPVC do not corrode, even when exposed to corrosive environments. This characteristic extends the lifespan of static mixers made from these materials, particularly in applications involving aggressive chemicals.
Lightweight: PVC and CPVC are significantly lighter than metal alloys. This lightweight nature simplifies handling and installation, reducing labor costs and the need for heavy lifting equipment.
Ease of Installation: The variety of connection ends available for PVC and CPVC static mixers, such as socket, threaded, flanged, and spigot ends, makes them easy to integrate into existing piping systems. This versatility simplifies installation and maintenance.
Good Insulation Properties: These materials have low thermal conductivity, providing good insulation properties. This can be beneficial in applications where maintaining temperature stability is important.
Non-Toxic and Safe: PVC and CPVC are non-toxic materials, making them suitable for applications in the food and beverage industry and other sectors where safety and cleanliness are paramount.
Versatility: PVC and CPVC static mixers can be used for a wide range of fluid types, including liquids and gases. They are versatile and can be customized to meet specific application needs.
Disadvantages
Temperature Limitations: PVC has a maximum service temperature of around 140°F (60°C), while CPVC can handle up to 200°F (93°C). These limitations restrict their use in high-temperature processes, unlike some metal alloys that can withstand much higher temperatures.
Lower Mechanical Strength: Compared to metal alloys, PVC and CPVC have lower mechanical strength. They are more susceptible to damage from physical stress, impact, or pressure, especially in larger diameters or under high-pressure conditions.
Pressure Limitations: The maximum allowable pressure for PVC and CPVC is generally lower than for metal static mixers. This limits their use in high-pressure applications, particularly in larger pipe sizes.
UV Degradation: PVC and CPVC can degrade when exposed to UV light over long periods. This can lead to brittleness and reduced service life, making them less suitable for outdoor applications without UV protection.
Potential for Leaching: In some cases, especially under specific conditions (like high temperatures or exposure to certain chemicals), there can be concerns about leaching of plasticizers or other additives from the PVC or CPVC material. This can be a concern in applications where purity is critical.
Thermal Expansion: PVC and CPVC have higher thermal expansion coefficients compared to metals. This means they can expand and contract more with temperature changes, which may require special design considerations in systems with fluctuating temperatures.
Limited Longevity in Some Environments: While resistant to many chemicals, PVC and CPVC can be susceptible to certain solvents and aggressive chemicals that can cause degradation. Proper material selection is crucial to ensure compatibility with the specific chemicals in use.
Aesthetic Concerns: In some applications, particularly those involving visible installations, the appearance of PVC and CPVC may not be as desirable as metal alloys, which can offer a more professional and durable look.
Conclusion
PVC and CPVC static mixers offer numerous advantages, including chemical resistance, cost-effectiveness, and ease of installation, making them suitable for many industrial applications. However, their limitations, such as lower mechanical strength and temperature restrictions, must be carefully considered when selecting the appropriate mixer for a specific application. Balancing these factors ensures optimal performance and longevity in the intended application.
Applications
PVC and CPVC static mixers find use in a variety of industries and applications, including:
Water and Wastewater Treatment:
These mixers are used for dosing and mixing chemicals such as chlorine, coagulants, and pH adjusters in water and wastewater treatment processes.
Chemical Processing:
They are employed in blending various chemicals, ensuring uniform distribution and reaction efficiency in chemical manufacturing processes.
Food and Beverage Industry:
In the food and beverage industry, PVC and CPVC mixers are used for mixing ingredients, flavors, and colors, as well as in processes requiring hygiene and safety.
Aquariums and Pools:
These mixers help in the uniform distribution of disinfectants and other water treatments in aquariums and swimming pools.
Agriculture:
In agricultural applications, they are used for mixing fertilizers, pesticides, and other chemicals.
Downloads
Drawings
Only logged in customers who have purchased this product may leave a review.
Reviews
There are no reviews yet.
