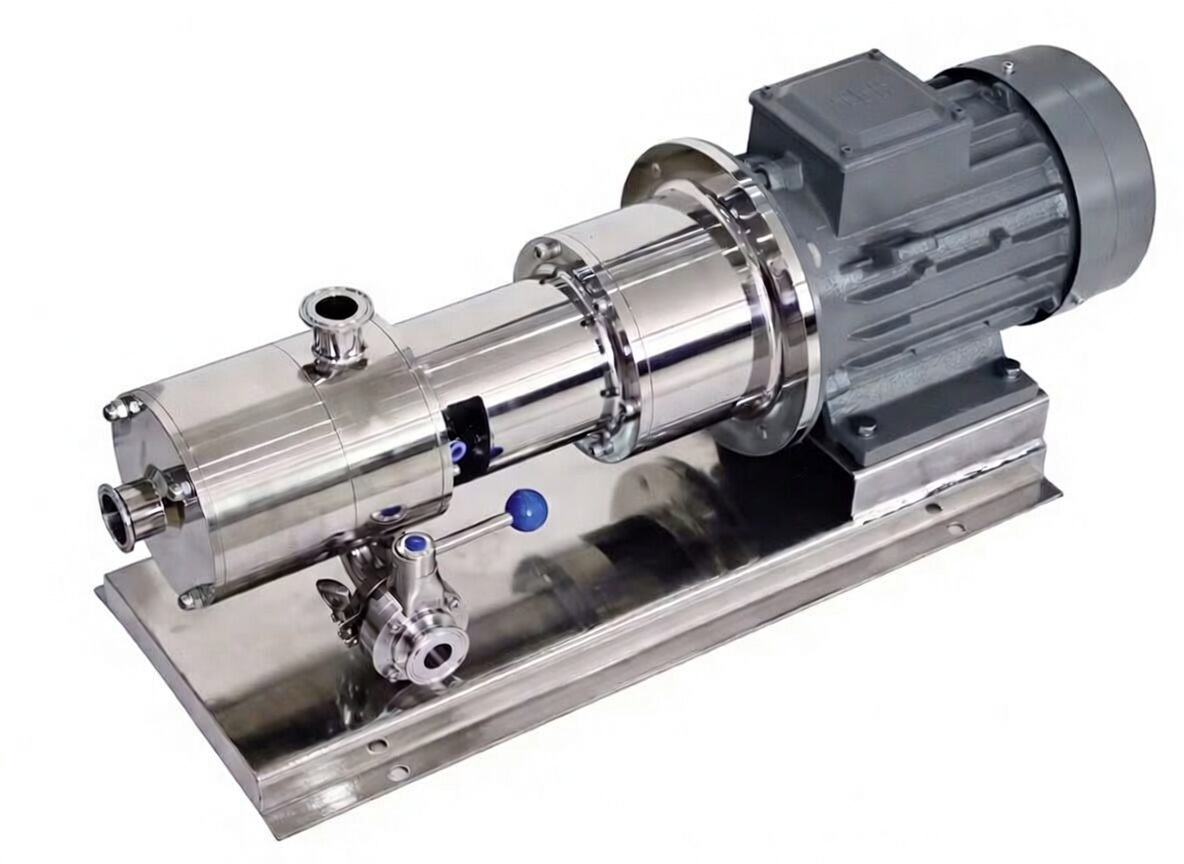

inline high shear mixer
,

Inline High Shear Mixers

Inline High Shear Mixers are continuous rotor-stator devices installed directly in the process pipeline to deliver intense, high-speed mixing, emulsification, homogenization, and particle size reduction in a single pass.

What Are Inline High Shear Mixers?

They use a high-speed rotor spinning inside a precision stator to generate extremely high shear rates (10,000 – 300,000+ s⁻¹).
As fluid passes through the narrow rotor-stator gap, it is subjected to intense mechanical shear, hydraulic impact, and cavitation for rapid and uniform mixing.

Key Benefits

High Shear Intensity Creates fine emulsions and dispersions in one pass.
Continuous Operation Eliminates batch tanks and reduces processing time.
Compact Design Easy integration into existing pipelines.
Consistent Results Delivers repeatable, high-quality mixing with minimal variation.

Inline High Shear Mixers are the ideal solution for food, pharmaceutical, cosmetic, chemical, and coating applications where fast, efficient, and high-intensity mixing is required.

Categories: , Tags: , , , , , , , , , , , , , , , , , , Brand:
Inline High Shear Mixers are advanced rotor-stator devices installed directly in the process pipeline to deliver continuous, high-intensity mixing.
Furthermore, they generate extremely high shear rates — often between 10,000 and 300,000 s⁻¹. As a result, they have become the preferred solution for creating stable emulsions, fine dispersions, rapid homogenization, and precise particle size reduction in a single pass. In addition, the intense mechanical shear, hydraulic impact, and cavitation produced inside the narrow rotor-stator gap break down droplets and particles very effectively. Consequently, manufacturers achieve superior uniformity and stability compared to traditional batch mixers. Moreover, their compact inline design allows easy integration into existing production lines, which reduces processing time and eliminates the need for large mixing tanks.

What Are Inline High Shear Mixers?

Unlike traditional batch high shear mixers or static mixers, inline high shear mixers operate continuously as the product flows through the unit.
A high-speed rotor spins inside a precisely engineered stator, subjecting the fluid to intense mechanical shear, hydraulic impact, and cavitation.
This powerful action effectively breaks down droplets, agglomerates, and particles, resulting in uniform, high-quality products with minimal processing time and consistent results.

These mixers are widely used in modern manufacturing processes where large batch tanks are impractical, space is limited, or where fast, repeatable emulsification and dispersion are required.

Key Benefits of Inline High Shear Mixers

Extremely High Shear Achieves sub-micron emulsions and fine dispersions in a single pass.
Continuous Operation Eliminates the need for large batch tanks and reduces overall processing time.
Consistent Quality Delivers repeatable results with minimal batch-to-batch variation.
Compact Design Small footprint and easy integration into existing pipelines.
Easy Scale-Up Performance remains predictable when moving from pilot to full production.

Common Applications

Inline High Shear Mixers are used across many industries where intense mixing is required:

  • Food & Beverage – Mayonnaise, salad dressings, sauces, dairy homogenization, beverage emulsions
  • Pharmaceutical & Biotech – Creams, ointments, suspensions, liposomal formulations, vaccine adjuvants
  • Cosmetics & Personal Care – Lotions, creams, shampoos, sunscreens, toothpaste
  • Chemicals & Coatings – Pigment dispersions, polymer emulsions, paints, inks, adhesives
  • Petrochemicals – Fuel additives, lubricant emulsions, drilling fluids

Why Choose Inline High Shear Mixers?

When your process demands rapid, high-intensity mixing with consistent, high-quality results, inline high shear mixers offer clear advantages over traditional batch systems.
They integrate seamlessly into existing pipelines, reduce overall processing time, minimize cleaning requirements, and deliver superior emulsion stability and particle size control.

From fine cosmetic creams and stable pharmaceutical emulsions to high-performance chemical dispersions and food products, inline high shear mixers provide the shear intensity and reliability needed for modern, efficient manufacturing.

Specifications

Inline High Shear Mixers are continuous-flow rotor-stator devices designed for high-intensity mixing, emulsification, homogenization, dispersion, and particle size reduction directly in the process pipeline.
They deliver extremely high shear rates and are ideal for both pilot and full-scale production where consistent, repeatable results are required without the need for batch tanks.

Detailed Specifications – Inline High Shear Mixers

Parameter Specification Notes / Options
Mixer Type Inline Rotor-Stator High Shear Mixer Continuous flow design
Available Sizes 1″ to 8″ (DN25 to DN200) nominal pipe size Larger custom sizes available
Power Range 1 HP to 150 HP (0.75 kW – 110 kW) Higher power for viscous or high-flow applications
Flow Rate Range 1 – 1,500+ GPM (depending on size and viscosity) Higher flow rates possible with larger models
Shear Rate 10,000 – 300,000+ s⁻¹ Extremely high shear for emulsification and particle size reduction
Materials of Construction 316L Stainless Steel (standard), Hastelloy C-276, Titanium, Duplex, PTFE-lined options Wetted parts selected for chemical compatibility
Connection Types Tri-Clamp, Flanged (ANSI/DIN), Threaded, Welded Tri-Clamp most common for sanitary applications
Pressure Rating Up to 300 psi (20 bar) standard; higher ratings available Depends on model and connection type
Temperature Rating -40°F to 400°F (-40°C to 204°C) standard Higher temperatures possible with special materials
Viscosity Range 1 cP to 50,000+ cP Higher viscosities may require recirculation or larger models
Standards Compliance 3-A, EHEDG, FDA, USP Class VI (sanitary models), ATEX, PED Electropolished finishes available for hygienic applications

Inline High Shear Mixers are custom-engineered based on your required flow rate, viscosity, desired shear rate, particle size reduction target, and process fluid characteristics.
Rotor-stator gap, number of stages, and motor power are optimized to deliver the exact mixing intensity needed while maintaining acceptable pressure drop.

These mixers are the preferred solution for continuous, high-intensity processing where batch tanks are impractical or where extremely fine emulsions, dispersions, or rapid homogenization are required.

Power Vs Viscosity

Power Requirement vs. Viscosity

High Shear Mixer – 10 HP Rotor-Stator Model
Typical Laboratory to Pilot Scale Applications

Typical Power Consumption Curve – High Shear Mixer

Viscosity (cP)     |   Power Required (HP)
─────────────────────────────────────────────
1             |    2.5  (Low Viscosity – High Speed)
10             |    3.8
100             |    6.2
1000             |   10.5  ← Typical Design Point
5000             |   15.0  (Heavy-Duty Rotor-Stator)
10000            |   18+  (Max recommended for 10 HP model)

High Shear Mixers require significantly more power as viscosity increases due to the intense rotor-stator action.
Recommended operating range: Up to 5,000–8,000 cP for standard 10 HP models.

Key Notes on Power vs. Viscosity for High Shear Mixers

  • High Shear Mixers (rotor-stator type) consume much more power than standard tank mixers because they generate extremely high shear rates.
  • Power demand rises sharply above 500–1,000 cP due to the tight rotor-stator gap and high rotational speeds.
  • They are ideal for emulsification, dispersion, particle size reduction, and homogenization of immiscible liquids.
  • Variable Frequency Drives (VFDs) are essential to control speed and prevent motor overload with changing viscosity.
  • For viscosities above 8,000–10,000 cP, larger motors or multiple stages are often required.

High Shear Mixers are chosen when intense mechanical energy is needed to create fine emulsions, break down agglomerates, or achieve rapid homogenization.
The power curve helps engineers properly size the motor and avoid overloading during scale-up.

Installation Procedures

Proper installation of Inline High Shear Mixers is essential for achieving the designed shear rate, preventing vibration, ensuring leak-free performance, and protecting the rotor-stator assembly.
These mixers are installed directly in the process pipeline and must be correctly oriented and supported.

Installation Procedures for Inline High Shear Mixers

Step Installation Procedure Tools / Materials Required Safety & Important Notes
1 Verify flow direction. Most inline high shear mixers are directional — the arrow on the housing must point in the direction of process flow. None Reverse flow will dramatically reduce shear performance and can damage the rotor-stator.
2 Shut down the line, isolate, depressurize, and follow lockout/tagout (LOTO) procedures. Drain the pipeline section where the mixer will be installed. Lockout/Tagout kit Never install while the line is pressurized or contains hazardous material.
3 Clean all connection faces thoroughly. Use new, chemically compatible gaskets rated for the process fluid, pressure, and temperature (Tri-Clamp or flanged gaskets). Lint-free cloths, solvent, new gaskets Old or damaged gaskets are a common cause of leaks in high-shear systems.
4 Align the mixer carefully in the pipeline. Ensure the inlet and outlet are correctly oriented and that the unit is installed with proper flow direction. Hand-tighten bolts, then torque in a criss-cross pattern to the recommended values. Calibrated torque wrench Follow manufacturer torque specifications exactly to avoid damaging the housing or gaskets.
5 Install adequate pipe supports on both sides of the mixer to prevent stress, vibration, or sagging on the unit. High shear mixers can generate significant vibration at high speeds. Pipe supports, vibration dampeners Unsupported weight or vibration can damage the rotor-stator assembly and bearings.
6 Connect any required flush, cooling, or seal flush lines (if the model has a mechanical seal or requires cooling). Verify flow and pressure before startup. Flush piping and gauges Many high shear mixers require a small flush flow to cool the mechanical seal.
7 Perform a low-pressure leak test, then gradually introduce process flow at low speed. Monitor pressure drop, vibration, noise, and temperature. Ramp up to design speed only after confirming stable operation. Pressure gauges, vibration meter High shear mixers can generate significant vibration if not properly supported.
8 Document the installation: torque values, alignment, baseline pressure drop, vibration readings, serial number, and startup observations. Update the equipment log. Checklist and photos Good documentation supports future maintenance and warranty claims.

Important Notes for Inline High Shear Mixers:

• Always verify flow direction — these mixers are directional.
• Provide strong pipe supports on both sides to absorb vibration generated by the high-speed rotor-stator.
• Ensure proper flush or cooling flow if the model is equipped with a mechanical seal.
• Start at low speed and gradually increase while monitoring vibration and temperature.
• High shear mixers can generate significant heat — monitor discharge temperature during initial operation.

Correct installation ensures the mixer delivers the designed high shear performance with maximum reliability and safety.

Maintenance Procedures

Inline High Shear Mixers are robust, high-speed rotor-stator devices. With proper care, they provide long, reliable service. Regular maintenance focuses on the mechanical seal (if equipped), bearings, rotor-stator clearance, vibration monitoring, and preventing buildup of product residue.

Maintenance Procedures for Inline High Shear Mixers

Maintenance Task Procedure & Frequency
Daily / Visual Inspection • Check for leaks at the mechanical seal or connections
• Listen for unusual noise or vibration
• Monitor discharge temperature and pressure drop
• Verify flush/barrier fluid flow (if equipped)
Weekly Cleaning • Flush the mixer with compatible solvent or water at low flow
• Remove any external residue from the housing
• Check all connections for tightness
Monthly / Quarterly • Measure and record vibration levels
• Check pressure drop across the mixer and compare with baseline
• Inspect mechanical seal for wear or leakage
• Clean strainer or filter in the flush line (if applicable)
Semi-Annual Inspection • Check rotor-stator clearance (during shutdown)
• Inspect bearings and shaft runout
• Verify alignment of the motor and coupling
• Replace worn O-rings or seals as needed
Annual Major Maintenance • Disassemble the mixer (if design allows) or remove cartridge
• Inspect rotor and stator for wear, erosion, or damage
• Replace mechanical seal faces and secondary seals
• Clean or replace bearings and check shaft condition
• Reassemble and perform pressure test
After Process Change or Long Shutdown • Thoroughly flush the mixer before and after long shutdowns
• Check compatibility of new fluid with seal and wetted materials
• Run at low speed initially and monitor temperature and vibration

Important Notes for Inline High Shear Mixers:

• Monitor vibration and pressure drop daily — sudden changes often indicate rotor-stator wear or bearing issues.
• Never run the mixer dry. Always maintain proper flush or barrier fluid flow to the mechanical seal.
• High shear mixers generate significant heat. Monitor discharge temperature, especially with viscous fluids.
• Use only manufacturer-approved spare parts and seal face materials.
• Schedule major maintenance during planned shutdowns, as disassembly can be time-consuming.
• Keep detailed records of vibration readings, pressure drop trends, and seal replacement history.

Regular, proactive maintenance will keep your inline high shear mixer running at peak performance with maximum reliability and safety.

Q&A

Question Answer
What is an Inline High Shear Mixer? An Inline High Shear Mixer is a continuous-flow rotor-stator device installed directly in a pipeline. It generates extremely high shear rates (10,000 – 300,000+ s⁻¹) to emulsify, homogenize, disperse, and reduce particle size in a single pass without the need for a batch tank.
How does an Inline High Shear Mixer work? The rotor spins at high speed inside a closely fitted stator. Product is drawn into the center, subjected to intense mechanical shear, hydraulic impact, and cavitation as it passes through the narrow rotor-stator gap, then expelled radially at high velocity. Multiple stages or slotted stators can be used for even higher shear.
What are the main advantages of Inline High Shear Mixers? • Continuous processing with no batch tank required
• Extremely high shear for fine emulsions and dispersions
• Consistent, repeatable results
• Smaller footprint than batch systems
• Easy integration into existing pipelines
• Reduced cleaning time compared to batch mixers
What viscosity range can they handle? Inline high shear mixers typically handle viscosities from 1 cP up to 50,000+ cP. For very high viscosities, recirculation loops or multiple passes are often used to achieve the desired result.
What industries commonly use Inline High Shear Mixers? Pharmaceutical, cosmetics, food & beverage, chemicals, coatings & paints, adhesives, petrochemicals, and personal care products — anywhere fine emulsions, uniform dispersions, or rapid homogenization are required.
What is the typical pressure drop? Moderate to high (typically 10–60 psi), depending on flow rate, viscosity, number of stages, and rotor-stator gap. Higher shear designs create more pressure drop.
Do Inline High Shear Mixers require a mechanical seal? Most models use a mechanical seal to isolate the high-speed shaft from the process fluid. Some sanitary designs use a double mechanical seal with barrier fluid for added safety and cleanability.
How do I choose the right Inline High Shear Mixer? Key factors include required flow rate, viscosity, target droplet/particle size, desired shear rate, process temperature/pressure, and whether sanitary (3-A/EHEDG) design is needed. Manufacturer testing or pilot trials are often recommended.

Note: Inline High Shear Mixers deliver intense, continuous mixing directly in the pipeline.
Proper sizing, correct installation, and regular maintenance of the mechanical seal and rotor-stator gap are essential for achieving consistent results and long equipment life.

Advantages / Disadvantages

Advantages Disadvantages
  • Extremely high shear rates (10,000 – 300,000+ s⁻¹) for superior emulsification and particle size reduction
  • Continuous inline processing – no need for large batch tanks
  • Consistent, repeatable results with minimal batch-to-batch variation
  • Small footprint and easy integration into existing pipelines
  • Reduced processing time compared to batch high-shear mixers
  • Excellent for difficult-to-mix systems (immiscible liquids, high viscosity, or shear-thinning fluids)
  • Lower energy consumption per unit volume in continuous operation
  • Easy scale-up from pilot to production with predictable performance
  • Higher pressure drop than conventional static mixers or low-shear pumps
  • More sensitive to viscosity – performance drops with very high-viscosity fluids without recirculation
  • Requires a properly sized feed pump to overcome the pressure drop
  • Higher initial cost compared to simple static or agitator systems
  • Mechanical seal requires regular maintenance and flush/barrier fluid system
  • Generates more heat due to intense shear – may require cooling for heat-sensitive products
  • Not ideal for very large particle reduction or heavy slurries without multiple stages
  • Can cause excessive shear damage to delicate structures (e.g., some emulsions or biological materials)

Note: Inline High Shear Mixers are the preferred choice when intense, continuous, high-shear mixing is required for fine emulsions or dispersions.
While they offer superior performance and efficiency in the right applications, they come with higher pressure drop and maintenance considerations compared to simpler mixing technologies.

Applications

Inline High Shear Mixers are continuous processing machines that deliver intense mechanical shear directly in the pipeline.
They excel at creating fine emulsions, uniform dispersions, rapid homogenization, and particle size reduction in a single pass, making them indispensable in modern high-efficiency manufacturing.

Applications of Inline High Shear Mixers

Industry / Application Typical Processes Purpose & Benefits
Food & Beverage Mayonnaise, salad dressings, sauces, dairy homogenization, flavor emulsions, beverage stabilization, ice cream mix Creates stable, fine emulsions with smooth texture and extended shelf life in a continuous process.
Pharmaceutical & Biotech Creams, ointments, suspensions, vaccine adjuvants, liposomal formulations, API dispersion Achieves uniform particle size reduction and stable emulsions under sanitary (3-A / EHEDG) conditions.
Cosmetics & Personal Care Lotions, creams, gels, shampoos, conditioners, sunscreen emulsions, toothpaste Produces smooth, stable products with excellent sensory properties and long-term stability.
Chemical Processing Polymer emulsions, pigment dispersions, pesticide formulations, lubricant additives, ink production Enables continuous, high-intensity mixing and particle size control for consistent product quality.
Paints & Coatings Pigment dispersion, emulsion polymerization, color matching, high-solids coatings Achieves superior color development and gloss with reduced milling time.
Adhesives & Sealants Two-part epoxy mixing, silicone sealants, acrylic adhesives, polyurethane dispersions Provides rapid, homogeneous mixing of reactive systems with minimal air entrapment.
Petrochemical & Lubricants Fuel additives, lubricant emulsions, wax dispersions, drilling fluid preparation Handles viscous and difficult-to-mix fluids in continuous operation.

Inline High Shear Mixers are particularly valuable when:

  • Extremely fine emulsions or dispersions are required (sub-micron droplets)
  • Continuous processing is preferred over batch mixing
  • Space is limited and large batch tanks are impractical
  • Fast reaction or homogenization times are needed
  • Consistent, repeatable product quality is critical across large production volumes

By installing an Inline High Shear Mixer directly in the process line, manufacturers achieve superior mixing intensity, reduced processing time, smaller equipment footprint, and more consistent product quality compared to traditional batch tank mixers.

Downloads

Drawings

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products
