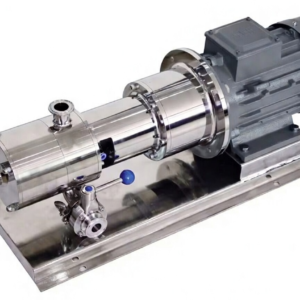

Ultra-High Shear Inline mixer
,

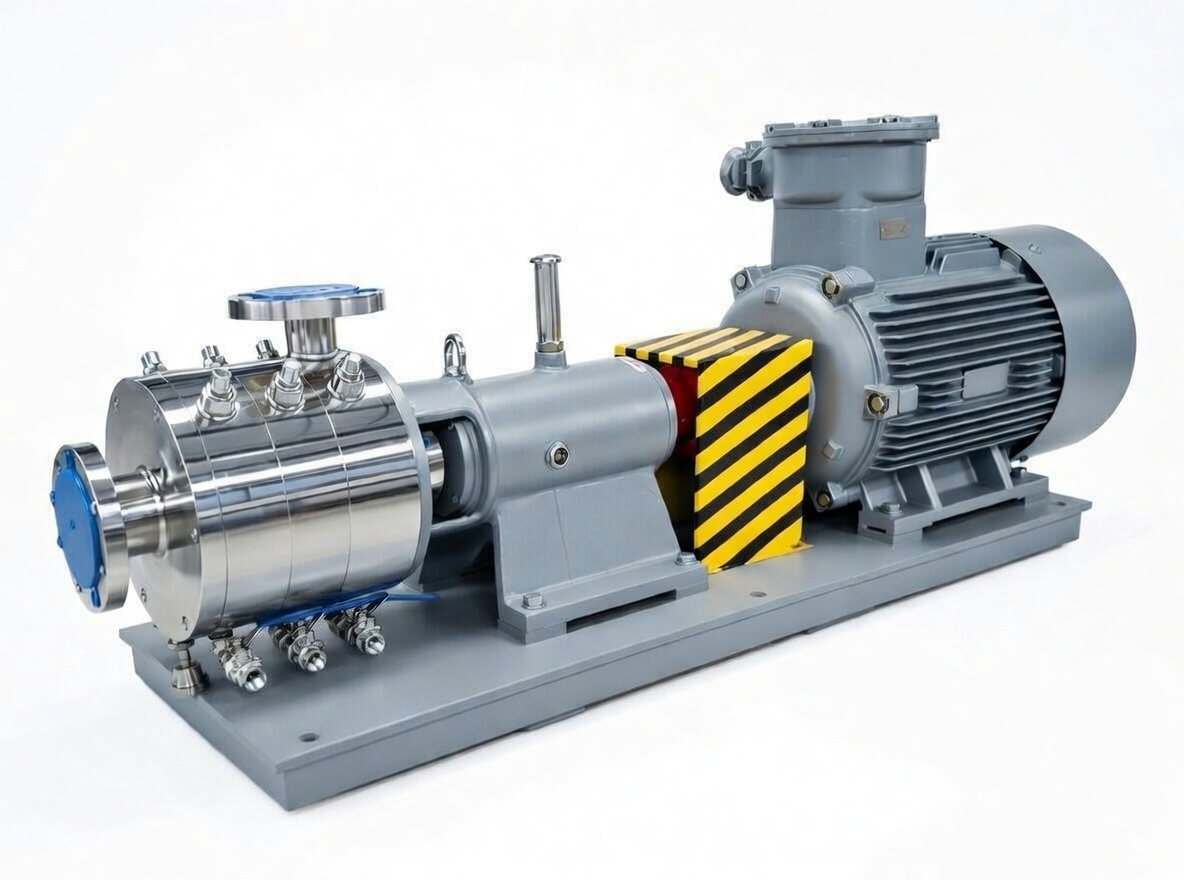

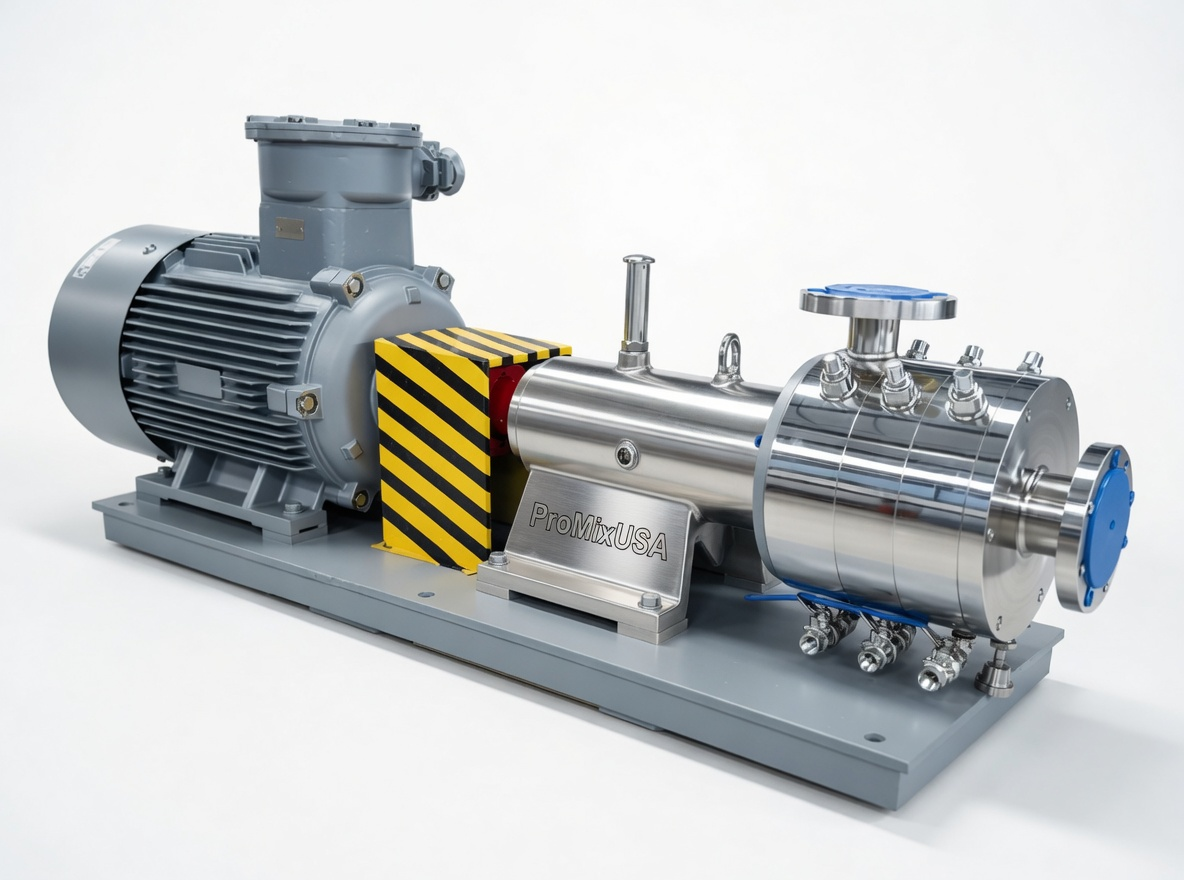

Ultra-High Shear Inline Mixers

Ultra High Shear Inline Mixers are advanced continuous rotor-stator devices designed to generate exceptionally high shear rates (200,000 – 500,000+ s⁻¹) directly in the process pipeline.

What Are Ultra High Shear Inline Mixers?

They feature multi-stage rotors with extremely tight clearances and high rotational speeds to produce ultra-fine emulsions, nano-dispersions, and sub-micron particle sizes in a single pass.
This intense shear action breaks down droplets and particles far more effectively than standard high shear mixers.

Key Benefits

Ultra-High Shear Intensity Achieves sub-micron and nano-scale emulsions in one pass.
Continuous Operation Eliminates batch tanks and reduces processing time dramatically.
Superior Stability Creates highly stable emulsions and dispersions with excellent uniformity.
Compact & Scalable Easy pipeline integration and predictable scale-up from pilot to production.

Ultra High Shear Inline Mixers are the ideal solution for pharmaceutical nano-formulations, high-end cosmetics, specialty chemicals, advanced coatings, and food products requiring the finest particle size and maximum emulsion stability.

Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Ultra-High Shear Inline Mixers represent the most advanced generation of rotor-stator mixing technology.
Furthermore, they are engineered to deliver exceptionally high shear rates — often exceeding 200,000 to 500,000 s⁻¹. As a result, these mixers enable rapid production of ultra-fine emulsions, nano-dispersions, and sub-micron particle sizes in a single pass through the pipeline. In addition, their multi-stage design and tight clearances create intense mechanical shear, hydraulic impact, and cavitation. Consequently, manufacturers can achieve superior emulsion stability and uniformity that standard high shear mixers cannot match. Moreover, this advanced performance makes them especially valuable for high-value formulations in pharmaceutical, cosmetic, and specialty chemical industries.

What Are Ultra High Shear Inline Mixers?

These specialized inline mixers feature multi-stage rotor-stator designs with extremely tight clearances, high rotational speeds, and optimized geometry.
As the product flows through the mixer, it is subjected to intense mechanical shear, hydraulic impact, cavitation, and rapid pressure changes.
This combination of forces breaks down droplets and particles far more effectively than standard inline high shear mixers.

Ultra-High Shear Inline Mixers are typically used when conventional high shear mixers cannot achieve the required fineness, stability, or processing speed.
They excel in continuous production environments where consistent nano-scale emulsions or high-quality dispersions are critical.

Key Features and Benefits

Ultra-High Shear Rates Up to 500,000 s⁻¹ for sub-micron and nano-scale emulsions.
Multi-Stage Design Multiple rotor-stator stages for progressive particle size reduction.
Continuous Processing Eliminates batch tanks and significantly reduces processing time.
Excellent Scalability Predictable performance from pilot to full production scale.
Sanitary & Industrial Designs Available in 316L stainless steel with electropolished finishes for hygienic applications.

Common Applications

  • Pharmaceutical emulsions, suspensions, and nano-formulations
  • Cosmetic creams, lotions, and high-end personal care products
  • Food-grade emulsions (mayonnaise, dressings, sauces, dairy products)
  • Pigment and nanoparticle dispersions for paints and coatings
  • Adhesives, sealants, and specialty chemical formulations
  • Lubricant and fuel additive production
  • Biotechnology and cell disruption processes

Ultra-High Shear Inline Mixers are the ultimate choice when standard high shear mixers fall short.
They deliver unmatched emulsification quality, faster processing times, and superior product stability in continuous production lines.
Whether you need sub-micron droplets or highly stable nano-emulsions, these mixers provide the intense energy input required for next-generation formulations.

Specifications

Technical Specifications – Ultra High Shear Inline Mixers

Parameter Specification Notes / Options
Mixer Type Ultra High Shear Inline Rotor-Stator Mixer Multi-stage high intensity design
Shear Rate 200,000 – 500,000+ s⁻¹ Highest shear available in inline configuration
Power Range 5 HP to 150 HP VFD recommended for all models
Viscosity Range 1 – 12,000 cP (optimal) Recirculation recommended above 8,000 cP
Materials of Construction 316L Stainless Steel (standard), Hastelloy, Titanium available Electropolished for sanitary applications
Connection Types Tri-Clamp, Flanged, or Custom 3-A / EHEDG compliant options
Seal Type Double Mechanical Seal with Barrier Fluid Pressurized barrier system recommended
Temperature Range -20°C to 180°C (standard) Higher temperatures available on request
Pressure Rating Up to 16 bar (230 psi) Higher pressure designs available
Number of Stages 2 to 5 stages (model dependent) More stages = higher shear intensity

Note: Specifications shown are for standard Ultra High Shear Inline Mixer models.
Custom configurations for higher pressure, higher viscosity, exotic alloys, or special sanitary requirements are available upon request.
Always verify compatibility with your process fluid and consult the manufacturer for precise sizing.

Power vs. Viscosity

Power Requirement vs. Viscosity

Ultra High Shear Inline Mixer – 15 HP to 75 HP Models
High-Intensity Rotor-Stator Design

Typical Power Consumption Curve – Ultra High Shear Inline Mixer

Viscosity (cP)     |   Power Required (HP)
─────────────────────────────────────────────
1             |    5.0  (Low Viscosity – High Speed)
10             |    8.5
100             |   13.0
1000             |   22.5  ← Typical Design Point
5000             |   35.0
10000            |   48.0  (Heavy-Duty Configuration)
20000+            |   60+  (Requires larger model or recirculation)

Ultra High Shear Inline Mixers require significantly more power than standard inline mixers due to their extremely tight rotor-stator clearances and high rotational speeds.
Recommended operating range: Up to 8,000–12,000 cP for most models.

Key Notes on Power vs. Viscosity

  • Ultra High Shear Mixers consume substantially more power than conventional inline or static mixers because of the intense shear generated in the narrow rotor-stator gap.
  • Power demand increases sharply with viscosity due to higher resistance and the need for greater torque.
  • They are designed for applications requiring sub-micron emulsions and nano-dispersions that standard high shear mixers cannot achieve.
  • Variable Frequency Drives (VFDs) are essential to control speed and prevent motor overload, especially during startup with viscous fluids.
  • For viscosities above 10,000–15,000 cP, recirculation loops or multiple mixer stages are often required.

Ultra High Shear Inline Mixers are chosen when maximum shear intensity is needed for the finest emulsions and dispersions.
The power curve is a critical factor in motor sizing and overall system design.

For accurate power calculations based on your exact flow rate, viscosity, desired shear rate, and process conditions, consult the manufacturer for a custom engineering analysis.

Installation Procedures

Proper installation of Ultra High Shear Inline Mixers is critical for achieving the designed high shear performance, preventing vibration, ensuring leak-free operation, and protecting the precision rotor-stator assembly.
These mixers operate at very high speeds and generate significant forces, so alignment, support, and flow direction are especially important.

Installation Procedures for Ultra High Shear Inline Mixers

Step Installation Procedure Tools / Materials Required Safety & Important Notes
1 Verify flow direction. Ultra High Shear Inline Mixers are directional — the arrow on the housing must point in the direction of process flow. None Incorrect flow direction will drastically reduce shear performance and can cause damage to the rotor and stator.
2 Shut down the line, isolate, depressurize, and follow lockout/tagout (LOTO) procedures. Drain the pipeline section completely. Lockout/Tagout kit Never install while the line is pressurized or contains hazardous chemicals.
3 Clean all flange or Tri-Clamp faces thoroughly. Use new, chemically compatible gaskets rated for the process fluid, pressure, and temperature. Lint-free cloths, solvent, new gaskets Old or damaged gaskets are a common cause of leaks in high-shear systems.
4 Align the mixer carefully in the pipeline, ensuring correct flow direction. Hand-tighten bolts, then torque evenly in a criss-cross pattern to the manufacturer’s recommended values. Calibrated torque wrench Follow exact torque specifications. Over-torquing can distort the housing or damage the rotor-stator alignment.
5 Install strong pipe supports on both sides of the mixer to absorb vibration and prevent stress on the unit. Ultra high shear mixers generate significant dynamic forces at high speeds. Pipe supports, vibration dampeners Proper support is critical to prevent bearing damage and maintain rotor-stator clearance.
6 Connect any required flush, cooling, or seal flush lines. Verify flow and pressure before startup. For models with mechanical seals, ensure the barrier or flush system is operational. Flush piping and gauges Many ultra high shear mixers require continuous flush to cool the seal and prevent dry running.
7 Perform a low-pressure leak test, then gradually introduce process flow at reduced speed. Monitor pressure drop, vibration, noise, and temperature. Slowly ramp up to design speed only after confirming stable operation. Pressure gauges, vibration meter Ultra high shear mixers can generate intense vibration if not properly supported or aligned.
8 Document the installation: torque values, alignment readings, baseline pressure drop, vibration levels, serial number, and startup observations. Update the equipment maintenance log. Checklist and photos Good documentation supports future maintenance and warranty claims.

Important Notes for Ultra High Shear Inline Mixers:

• Always verify flow direction — these mixers are highly directional.
• Provide strong pipe supports on both sides to absorb the significant vibration generated at high speeds.
• Ensure proper flush or cooling flow to the mechanical seal at all times.
• Start at reduced speed and gradually increase while closely monitoring vibration and temperature.
• Ultra high shear mixers generate more heat than standard mixers — monitor discharge temperature, especially with viscous fluids.

Correct installation ensures the mixer delivers the designed ultra-high shear performance with maximum reliability and safety.

Maintenance Procedures

Ultra High Shear Inline Mixers operate at very high speeds and generate intense forces. Regular maintenance is essential to protect the precision rotor-stator assembly, maintain high shear performance, prevent vibration issues, and ensure long-term reliability.

Maintenance Procedures for Ultra High Shear Inline Mixers

Maintenance Task Procedure & Frequency
Daily / Visual Inspection • Check for leaks at the mechanical seal or connections
• Listen for unusual noise or excessive vibration
• Monitor discharge temperature and pressure drop
• Verify flush or cooling fluid flow (if equipped)
After Each Shift / Weekly Cleaning • Flush the mixer thoroughly with compatible solvent or clean water
• Remove any product residue from the housing and connections
• Wipe down external surfaces
Monthly Inspection • Measure and record vibration levels at the motor and housing
• Check pressure drop across the mixer and compare with baseline
• Inspect mechanical seal for leakage or wear
• Clean strainers or filters in the flush line
Quarterly / Semi-Annual • Check rotor-stator clearance (during shutdown)
• Inspect bearings and shaft runout
• Verify motor alignment and coupling condition
• Replace worn O-rings or secondary seals as needed
Annual Major Overhaul • Disassemble the mixer (or remove cartridge if applicable)
• Inspect rotor and stator for wear, erosion, or damage
• Replace mechanical seal faces and all secondary seals
• Clean or replace bearings and check shaft condition
• Perform pressure test after reassembly
After Process Change or Long Shutdown • Thoroughly flush the mixer before and after extended shutdowns
• Verify material compatibility with seal faces and wetted parts
• Run at low speed initially and monitor temperature and vibration closely

Important Notes for Ultra High Shear Inline Mixers:

• Monitor vibration and pressure drop daily — sudden changes often indicate rotor or bearing wear.
• Never run the mixer dry. Always maintain proper flush or barrier fluid to the mechanical seal.
• Ultra high shear mixers generate significant heat. Monitor discharge temperature, especially with viscous fluids.
• Use only manufacturer-approved spare parts and seal face materials.
• Schedule major maintenance during planned shutdowns, as disassembly can be time-consuming.
• Keep detailed records of vibration readings, pressure drop trends, and seal replacement history.

Regular, proactive maintenance will keep your ultra high shear inline mixer delivering maximum performance and reliability.

Q&A

Question Answer
What are Ultra High Shear Inline Mixers? Ultra High Shear Inline Mixers are advanced continuous-flow rotor-stator devices that generate exceptionally high shear rates (typically 200,000 – 500,000 s⁻¹ or more). They are installed directly in the process pipeline to create ultra-fine emulsions, nano-dispersions, and sub-micron particle sizes in a single pass.
How do Ultra High Shear Inline Mixers differ from standard High Shear Mixers? Ultra High Shear models use multi-stage rotors, tighter clearances, and higher rotational speeds to produce significantly greater shear intensity. This allows them to achieve finer droplet sizes and better stability in a single pass compared to conventional inline high shear mixers.
What are the main applications for Ultra High Shear Inline Mixers? They are used for nano-emulsions, pharmaceutical formulations, high-end cosmetics, specialty chemicals, pigment dispersions, fuel additives, and any process requiring sub-micron particle size or exceptional emulsion stability.
What is the typical viscosity range? Ultra High Shear Inline Mixers perform best with low to medium viscosities (1 – 10,000 cP). For higher viscosities, recirculation loops or multiple passes are commonly used to achieve the desired shear effect.
How much pressure drop do they create? They typically generate moderate to high pressure drop (15 – 80 psi), depending on flow rate, viscosity, number of stages, and rotor-stator design. This is higher than standard inline mixers due to the intense shear action.
Do they require a mechanical seal? Yes. Most models use a single or double mechanical seal. Double seals with a pressurized barrier fluid system are recommended for hazardous, toxic, or high-purity applications.
What maintenance is typically required? Regular monitoring of vibration, pressure drop, and seal leakage is essential. Periodic inspection and replacement of rotor-stator components, mechanical seals, and bearings are required. Thorough flushing after each use helps prevent buildup.
What are the main advantages over batch high shear mixers? • Continuous operation with smaller footprint
• Faster processing times
• More consistent product quality
• Easier scale-up
• Reduced cleaning and labor requirements

Note: Ultra High Shear Inline Mixers deliver unmatched shear intensity for the most demanding emulsification and dispersion applications.
Proper sizing, installation, and maintenance of the mechanical seal and rotor-stator assembly are critical for achieving long-term performance and reliability.

Advantages / Disadvantages

Advantages Disadvantages
  • Extremely high shear rates (200,000 – 500,000+ s⁻¹) for sub-micron and nano-scale emulsions in a single pass
  • Superior emulsion stability and particle size reduction compared to standard high shear mixers
  • Continuous inline processing – eliminates large batch tanks and reduces overall processing time
  • Consistent, repeatable results with minimal batch-to-batch variation
  • Compact footprint and easy integration into existing pipelines
  • Excellent scalability from pilot to full production
  • Ideal for high-value, high-performance formulations in pharmaceutical, cosmetic, and specialty chemical industries
  • Faster processing and reduced labor compared to batch systems
  • Significantly higher power consumption due to intense shear and tight clearances
  • Higher pressure drop (typically 15–80 psi) requiring a stronger feed pump
  • Generates more heat – may require cooling for heat-sensitive products
  • More sensitive to viscosity – performance drops sharply above 8,000–12,000 cP without recirculation
  • Higher initial purchase and installation cost compared to standard inline mixers
  • Mechanical seal requires regular monitoring and more frequent maintenance
  • Strong vibration at high speeds demands robust pipe supports and careful alignment
  • Can cause excessive shear damage to delicate structures or shear-sensitive materials

Note: Ultra High Shear Inline Mixers are the best choice when maximum shear intensity and the finest emulsions or dispersions are required.
While they deliver unmatched performance, they come with higher energy use, pressure drop, and maintenance considerations compared to standard high shear or static mixers.

Applications

Ultra High Shear Inline Mixers are engineered for the most demanding emulsification and dispersion applications where standard high shear mixers cannot achieve the required fineness, stability, or processing speed.
With shear rates reaching 200,000 – 500,000+ s⁻¹, they produce sub-micron and nano-scale droplets and particles in a single continuous pass through the pipeline.

Applications of Ultra High Shear Inline Mixers

Industry / Application Typical Products / Processes Purpose & Benefits
Pharmaceutical & Biotech Nano-emulsions, liposomal drug delivery systems, vaccine adjuvants, suspensions, creams, ointments, API dispersions Achieves sub-micron particle sizes with excellent stability and bioavailability while maintaining sanitary (3-A / EHEDG) compliance.
Cosmetics & Personal Care High-end creams, lotions, serums, sunscreens, hair conditioners, anti-aging formulations, nano-emulsions Delivers silky texture, long-term stability, and superior sensory properties with uniform nano-scale droplets.
Food & Beverage Mayonnaise, salad dressings, sauces, dairy emulsions, flavor nano-emulsions, beverage stabilizers, functional foods Creates highly stable emulsions with extended shelf life and improved mouthfeel in continuous production.
Paints, Coatings & Pigments Nano-pigment dispersions, high-performance coatings, inkjet inks, specialty color concentrates Achieves superior color development, gloss, and stability with extremely fine, uniform particle distribution.
Specialty Chemicals & Adhesives Polymer nano-emulsions, reactive adhesives, sealants, lubricant additives, fuel additives, drilling fluids Enables rapid, homogeneous mixing of difficult-to-emulsify systems with minimal air entrapment.
Biotechnology & Cell Disruption Cell lysis, protein extraction, microbial disruption, enzyme formulations Provides intense mechanical forces for efficient cell wall rupture in continuous flow.

Ultra High Shear Inline Mixers are particularly valuable when:

  • Sub-micron or nano-scale droplet/particle sizes are required for product performance
  • Exceptional long-term emulsion stability is critical
  • Continuous processing with minimal batch variation is needed
  • Space is limited and large batch tanks are impractical
  • High-value or shear-sensitive formulations demand precise control

By delivering unmatched shear intensity directly in the pipeline, Ultra High Shear Inline Mixers enable manufacturers to achieve superior product quality, faster throughput, and more consistent results compared to traditional batch or standard high shear mixing technologies.

Downloads

Drawings

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products
