Introduction to Static Mixer Skid Systems
A Static Mixer Skid System provides efficient mixing across various industrial applications. This advanced system combines multiple components to deliver a complete and compact blending solution. It mixes different substances into a uniform product with consistent quality.
The Static Mixer: Core of the Skid System
The core component of the system is the static mixer. Unlike dynamic mixers, it has no moving parts. It uses internal elements such as plates, baffles, or tubes arranged inside a housing. These elements split and redirect the flow of fluids or gases.
This process creates turbulence and promotes efficient mixing by continuously dividing and recombining the flow streams.
In a typical static mixer skid system, the static mixer is mounted on a skid along with other necessary components to create a complete mixing solution. These components may include pumps, valves, instruments, and control systems. Finally, let’s delve into the details of each component:

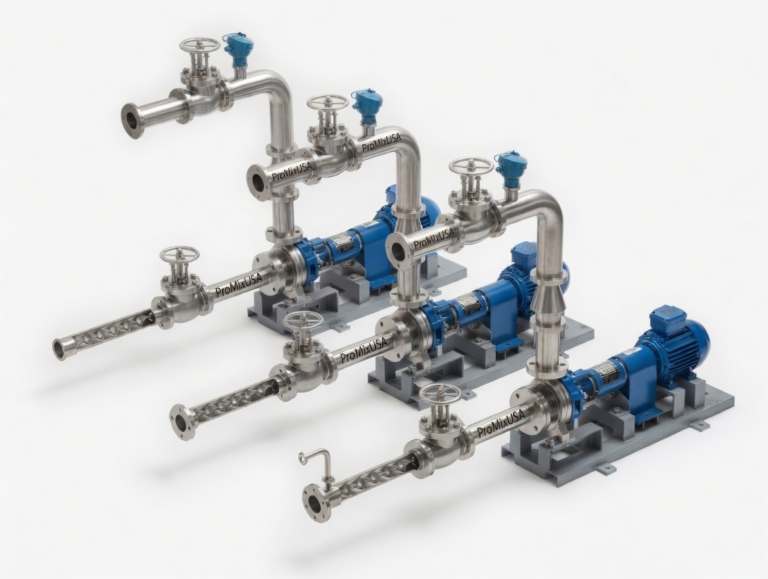

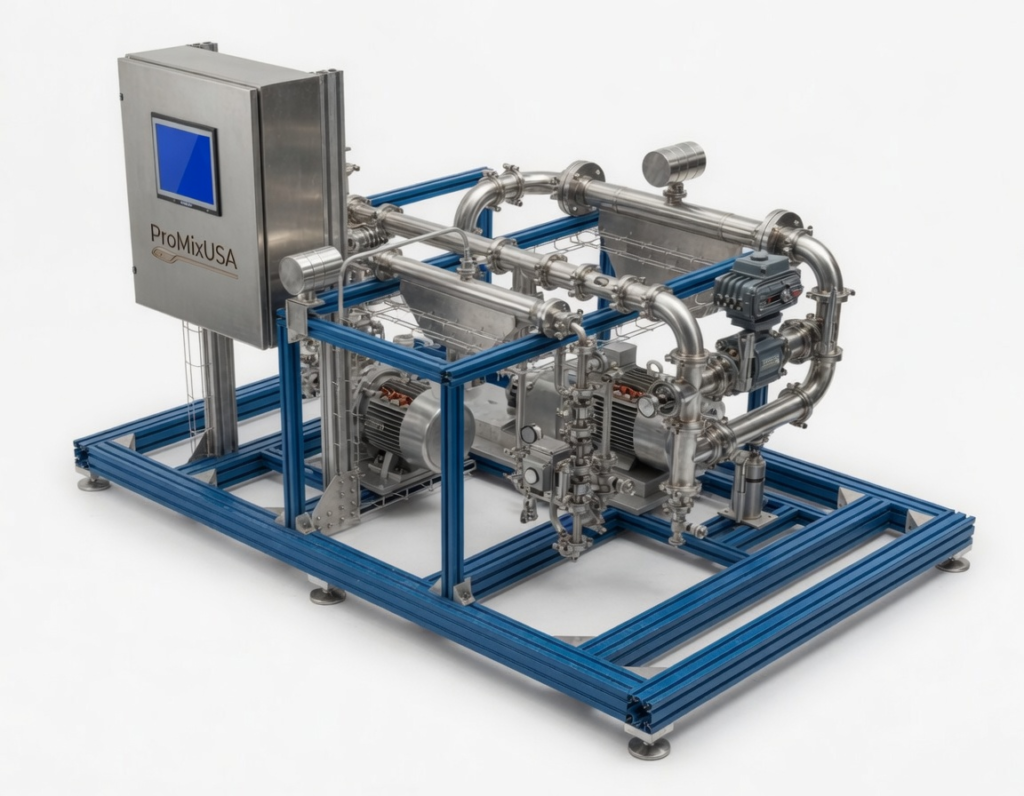

Typical Components of a Complete Skid-Mounted Static Mixing System
Our complete skid-mounted static mixing systems are custom-designed to meet specific process requirements. These systems typically include the following components:
Portable Skids with Caster Wheels
Designed for mobility and ease of installation across various process locations.Static Mixers
Available in helical or blade-type designs to ensure optimal mixing efficiency for different fluid characteristics.Process-Specific Pumps
Engineered to accommodate the pressure drop and viscosity of the fluids being mixed, ensuring reliable flow and performance.Durable Materials of Construction
Built to meet your process specifications, including options for corrosive environments to ensure long service life and system integrity.Integrated Control Systems
Featuring touchscreen controls, on/off pushbuttons, and flow meters for accurate monitoring and injection. Additional components may include:Injection quills for even fluid dispersion
Variable speed drives and ratio control systems for precise process management
Features
ProMixUSA offers a wide range of static mixer designs tailored for different applications. Our low-pressure models are ideal for low-viscosity, turbulent flow processes. These mixers are effective for blending liquids and facilitating gas-liquid mixing.
We provide mixers in a variety of materials of construction to match the requirements of your system. Every unit is available in any inch-diameter, making them suitable for small- or large-scale operations. In addition, mixers can be customized with special injection feed nozzles and side-entry injectors.
Our designs use specially machined mixing elements with engineered passageways that ensure thorough blending of any pumpable fluid. These elements are available in various lengths and can be stacked as needed to meet specific mixing requirements.
ProMixUSA systems are built from cast or machined materials and engineered to handle a wide range of applications. Whether you’re dealing with minor additive streams or difficult product flows, our mixers provide consistent and efficient performance.
Components
Components Static Mixer: As mentioned earlier, this core component is responsible for blending fluids or gases. Also, the design of the static mixer elements is crucial in determining the efficiency and effectiveness of the mixing process. Different static mixers are available, such as plate and helical mixers. In addition, we may have perforated pipe mixers, each suitable for specific applications.
This is the heading
Pumps are used to control the flow rate of the materials being mixed. In addition, depending on the requirements of the application, different types of pumps may be used. In addition, the items that may be used are centrifugal pumps or positive displacement pumps. Finally, the pumps ensure a consistent flow of materials into the static mixer for efficient mixing.
Piping
Piping Related Valves: Valves are essential for regulating the flow of materials within the system. They allow for precise control over the flow rates and pressure. Also, they may dictate the direction of the substances being mixed. In addition, different types of valves, such as ball valves and gate valves may be used. Also, butterfly valves may be incorporated. Moreover, all of these may be incorporated into the static mixer skid system.
Structure / Safety
The safety features of the Static Mixer Skid System are pressure relief valves. Also, we have emergency stop buttons, and alarms may be included in the static mixer skid system to ensure safe operation and prevent accidents. Overall, a Static Mixer Skid System is a sophisticated and versatile mixing solution. It is a solution that offers efficient blending of fluids or gases. Furthermore, it blends it in various industrial processes. In addition, its carefully designed components work in harmony. Finally, this harmony will achieve consistent and reliable mixing results.
Instrumentation
Various instruments are integrated into the system to monitor and control the mixing process. Also, these instruments may include flow meters and pressure gauges. In addition, temperature sensors, and level indicators may be incorporated. Finally, they provide real-time data on the operating conditions of the system, allowing for adjustments to be made as needed.
Control System
Control systems are used to automate the mixing process and ensure optimal performance of the static mixer skid system. Moreover, these systems may include programmable logic controllers (PLCs) and human-machine interfaces (HMIs). Finally, it may also include software for monitoring and controlling the mixing parameters.
Mixing
The static mixer skid system incorporates a network of piping and tubing to transport the materials. Furthermore, they will be transported to and from the static mixer. Also, the layout and design of the piping system are important to ensure smooth flow and proper mixing of the substances.
Applications of Static Mixer Skid Systems
Static Mixer Skid Systems are versatile and serve a wide range of industries. Below are key applications across various sectors:
Chemical Processing
In the chemical industry, static mixer skid systems blend and react various chemicals to produce solutions with precise properties. These systems ensure consistent product quality and reduce process variability.
Water and Wastewater Treatment
These systems mix chemicals, coagulants, and disinfectants with water or wastewater. This enables efficient pH control, flocculation, and disinfection during treatment processes.
Food and Beverage Production
Static mixers ensure uniform mixing of ingredients, flavors, and additives. They help maintain consistency and product quality in food and beverage manufacturing.
Pharmaceutical Manufacturing
Pharmaceutical plants use these systems to blend active ingredients and excipients. They also support the formation of emulsions, suspensions, and solutions required in drug production.
Pulp and Paper Industry
In pulp and paper mills, static mixer skids add dyes, bleaching agents, and chemical additives to improve paper quality and characteristics.
Oil and Gas Industry
These systems are used in refineries and petrochemical plants to blend fuel additives, catalysts, and processing chemicals, enhancing efficiency and output.
Biotechnology and Healthcare
Static mixers play a vital role in bioprocessing and pharmaceutical research. They mix cell cultures, nutrients, and biopharmaceuticals in bioreactors and lab-scale systems.
Mining and Minerals Processing
In mineral extraction, these systems mix reagents, flocculants, and polymers to help isolate valuable minerals from ores.
Environmental Remediation
Static mixers assist in environmental cleanup by blending remediation agents with contaminated soil or groundwater to neutralize or remove pollutants.
Detergent and Cleaning Product Manufacturing
These systems mix surfactants, fragrances, and additives in the production of detergents, fabric softeners, and industrial cleaners, ensuring a homogeneous blend.
Chemical Processing
In the chemical industry, manufacturers use static mixer skid systems to blend and react various chemicals. This ensures precise compound formulation and consistent product quality.
Water and Wastewater Treatment
These systems play a vital role in treating water and wastewater. They efficiently mix chemicals, disinfectants, or coagulants to support processes like flocculation, pH adjustment, and disinfection.
Food and Beverage Production
Producers rely on static mixer skids to blend ingredients, flavors, and additives. This guarantees uniformity and consistency throughout food and beverage batches.
Pharmaceutical Manufacturing
Pharmaceutical companies use these systems to blend ingredients, form emulsions, and create suspensions or solutions essential to drug development and manufacturing.
Pulp and Paper Industry
In this sector, static mixer skid systems help combine additives, bleaching agents, and dyes. As a result, they improve the quality and characteristics of paper products.
Oil and Gas Industry
Refineries and petrochemical facilities use these systems to blend fuel additives, catalysts, and other chemicals. This process optimization leads to better product performance and enhanced operational efficiency.
Q: What is a Static Mixer Skid System?
A: A Static Mixer Skid System is a specialized mixing system that combines a static mixer with auxiliary components on a skid for efficient blending of fluids or gases.
Q: How does a static mixer work?
A: A static mixer operates on the principle of stationary mixing elements within a housing, creating turbulence to blend materials as they pass through without any moving parts.
Q: What industries commonly use Static Mixer Skid Systems?
A: Static Mixer Skid Systems are used in various industries such as chemical processing, water treatment, food and beverage production, pharmaceutical manufacturing, and energy production.
Q: What are the advantages of using a Static Mixer Skid System?
A: Advantages include efficient mixing, low maintenance, compact design, energy efficiency, and versatility in handling different flow rates and viscosities.
Q: Are there any disadvantages to using a Static Mixer Skid System?
A: Some disadvantages include initial cost, limited scalability for larger operations, potential risk of clogging, limited mixing intensity compared to dynamic mixers, and design limitations based on specific applications.
Q: How important are safety features in a Static Mixer Skid System?
A: Safety features such as pressure relief valves, emergency stop buttons, and alarms are crucial to ensure safe operation, prevent accidents, and protect personnel and equipment.
Q: Can Static Mixer Skid Systems be customized for specific applications?
A: Yes, Static Mixer Skid Systems can be customized to meet the unique requirements of different mixing applications, including specific flow rates, materials, and mixing intensities.
Q: What maintenance is required for a Static Mixer Skid System?
A: Static mixers require minimal maintenance due to their simple design with no moving parts. Regular cleaning and inspection of the system components are typically sufficient to ensure optimal performance.
Advantages of Static Mixer Skid Systems
Efficient Mixing
Static mixers deliver efficient blending of fluids or gases without using moving parts. As a result, they create a consistent and homogeneous mixture every time.
Low Maintenance
Because static mixers have no moving parts, they require very little maintenance. This advantage significantly reduces both downtime and maintenance expenses compared to traditional mechanical mixers.
Compact Design
Thanks to their skid-mounted configuration, these systems save space and install easily, even in areas where room is limited.
Energy Efficiency
Static mixers consume less energy than dynamic mixers. Therefore, they provide a more environmentally friendly and cost-effective solution.
Versatility
These systems handle various flow rates, viscosities, and mixing demands. As a result, they fit a wide range of industrial applications—from chemicals to food processing.
Disadvantages of Static Mixer Skid Systems
Higher Initial Cost
Although they offer long-term savings, the upfront cost of buying and installing a static mixer skid system can be higher than that of traditional mixing setups.
Limited Scalability
Because each unit is tailored for specific flow conditions, it may not easily adapt to larger or more complex mixing operations without redesign.
Risk of Clogging
Some materials—especially viscous or particulate-laden fluids—can clog static mixers. This issue may reduce mixing efficiency and increase maintenance needs.
Reduced Mixing Intensity
While these systems are ideal for many blending tasks, they might not provide the intense agitation required for shear-sensitive processes.
Design Constraints
Engineers must consider factors like pressure drop, mixing efficiency, and material compatibility when selecting a static mixer. These limitations can affect system performance in specialized applications.
