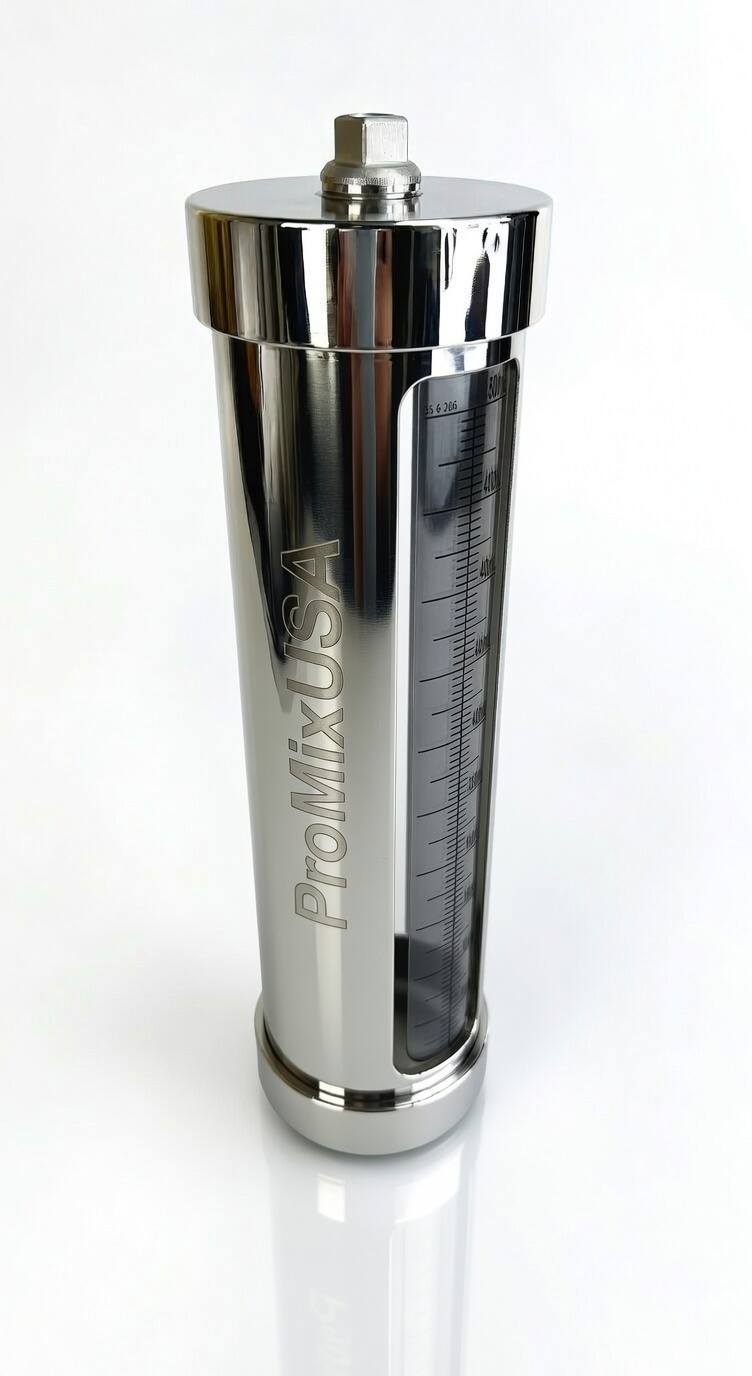

Calibration Columns (Glass)

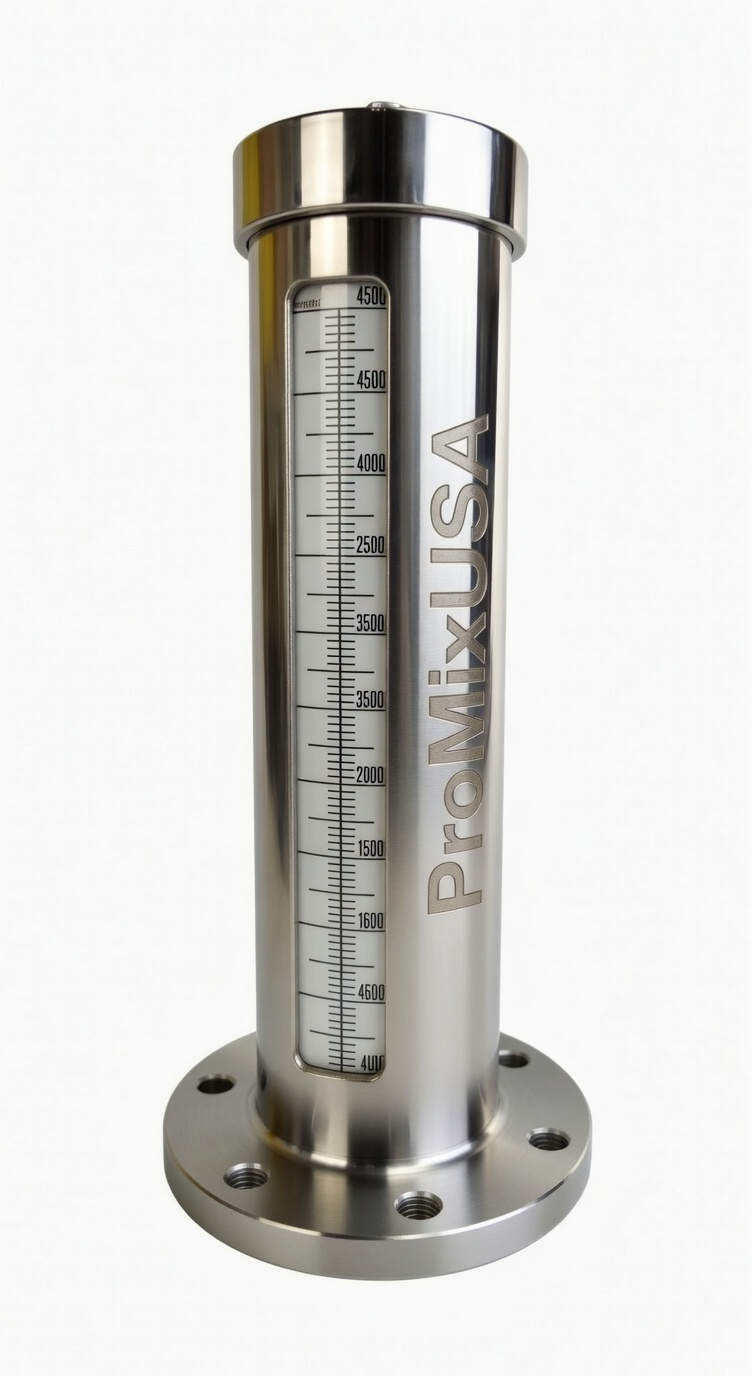

Calibration Columns (Glass) - Image 2

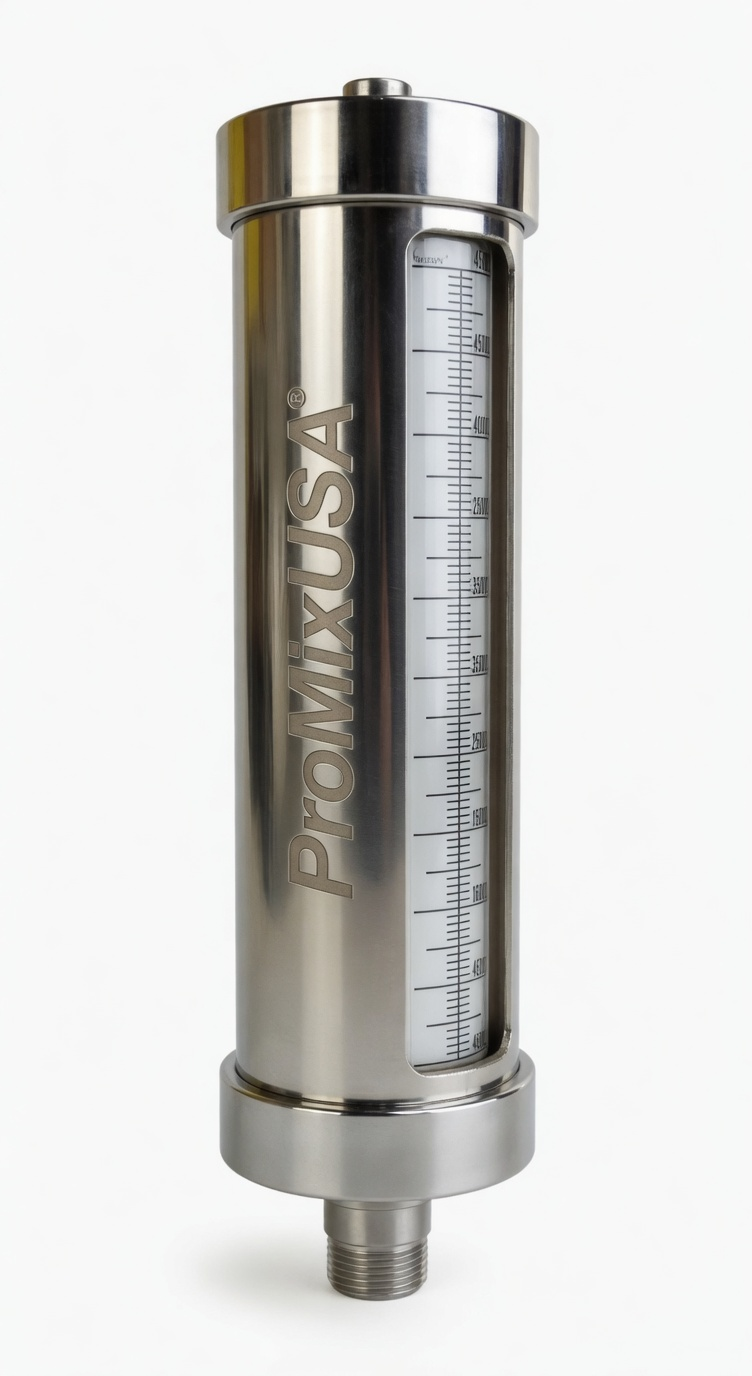

Calibration Columns (Glass) - Image 3

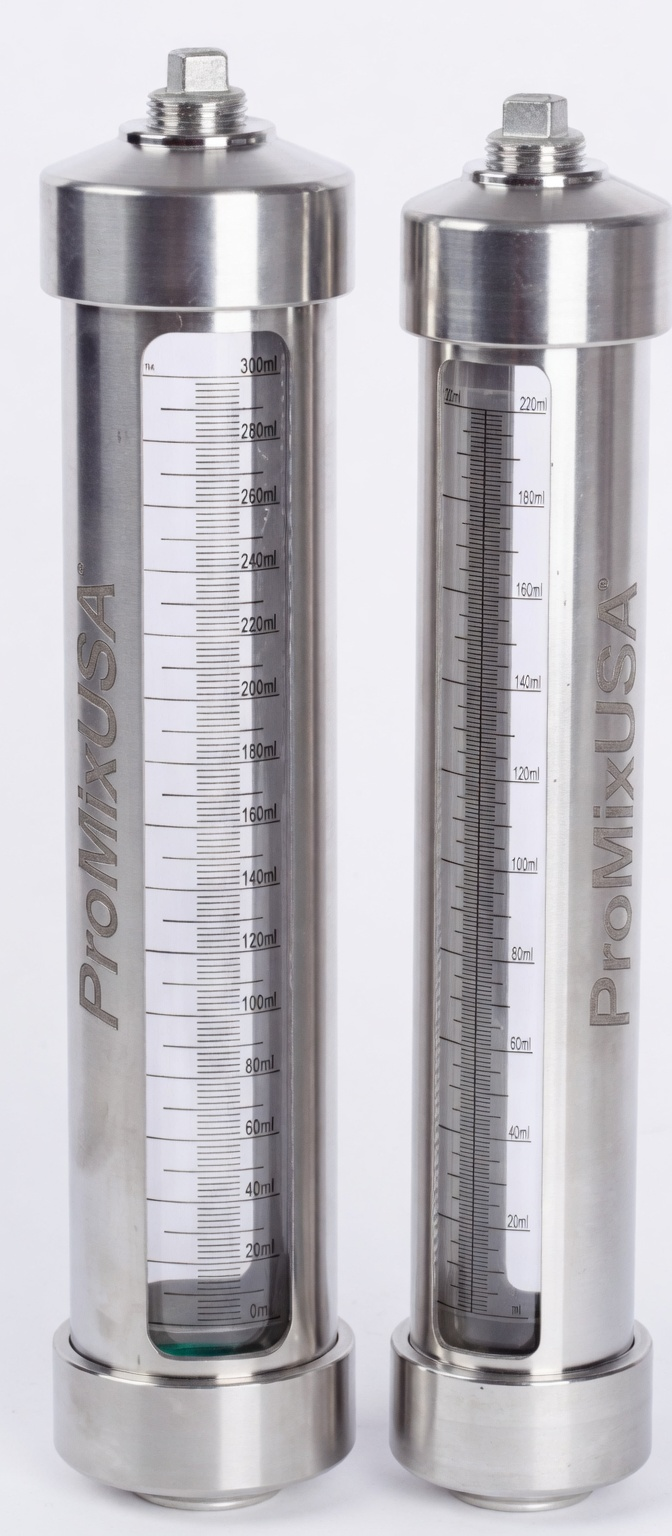

Calibration Columns (Glass) - Image 4

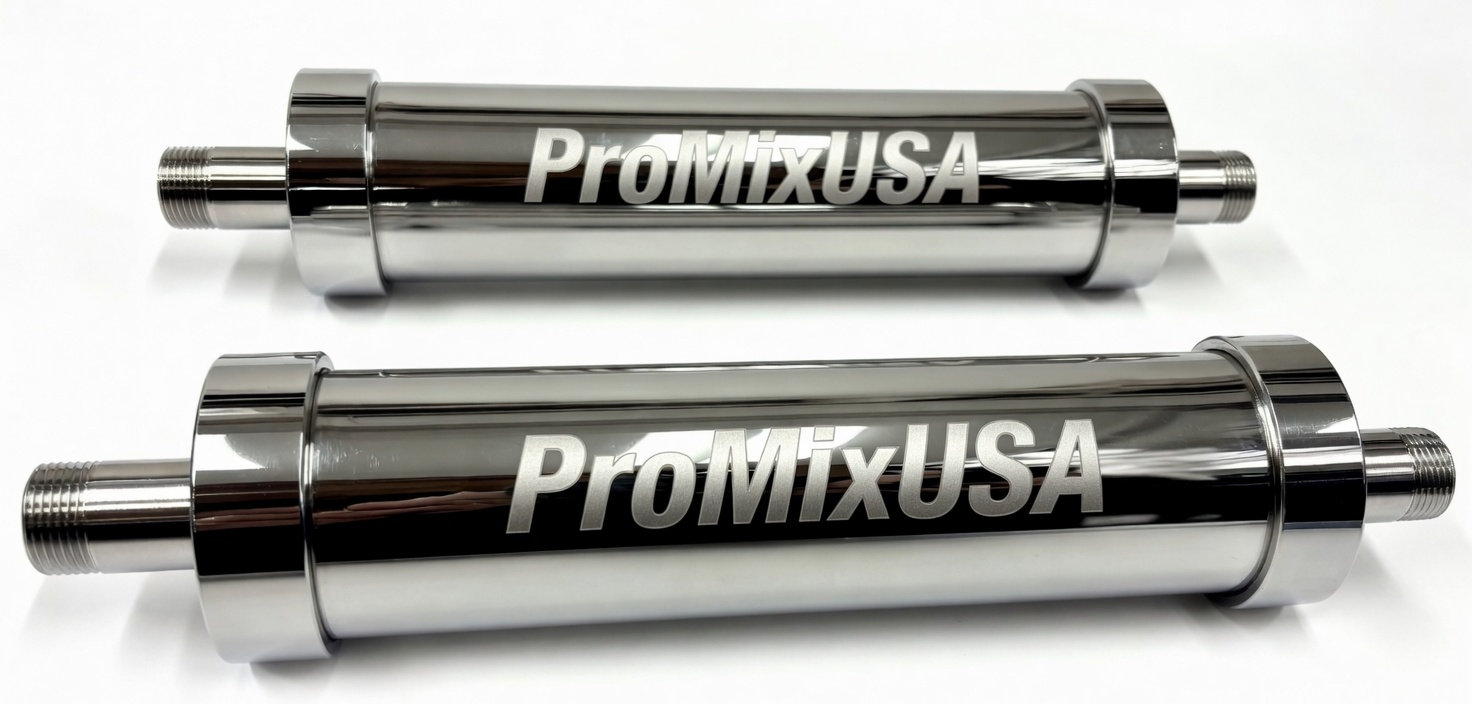

Calibration Columns (Glass) - Image 5

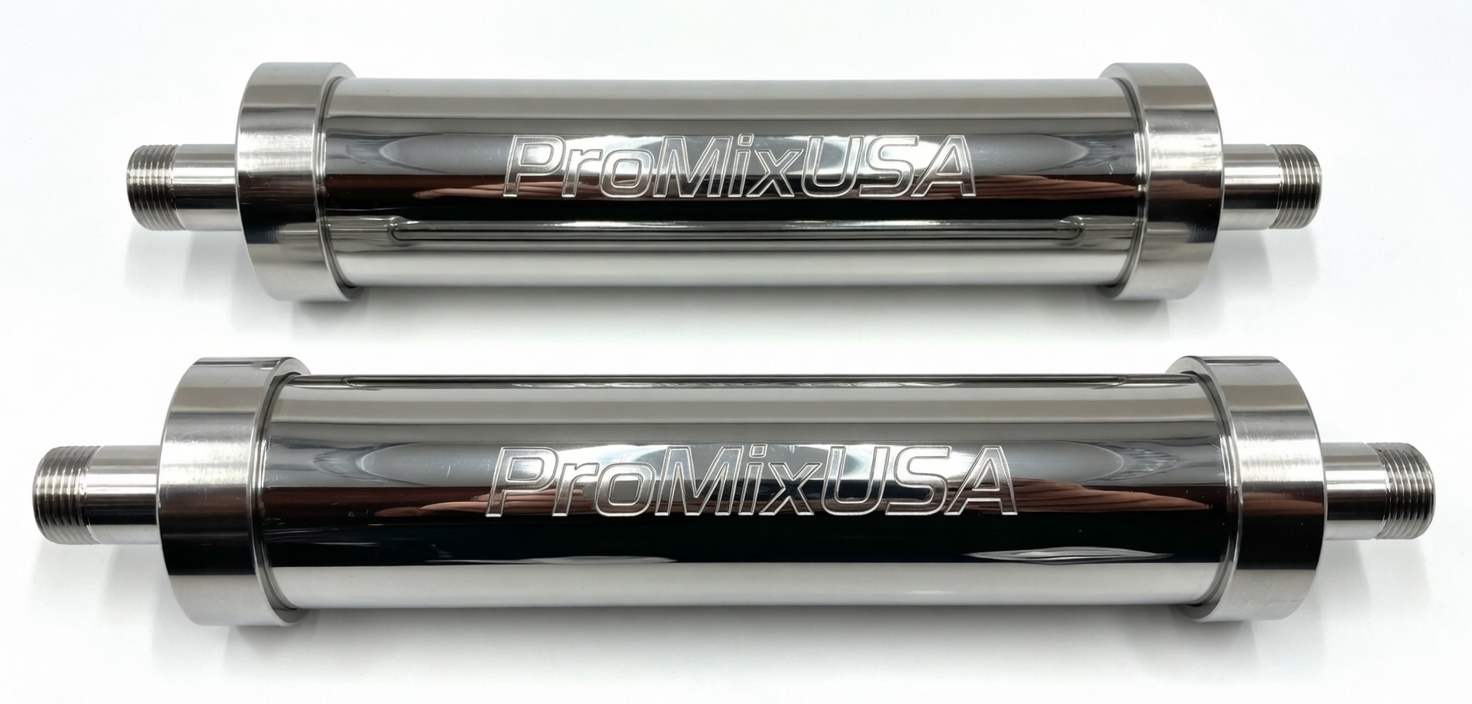

Calibration Columns (Glass) - Image 6

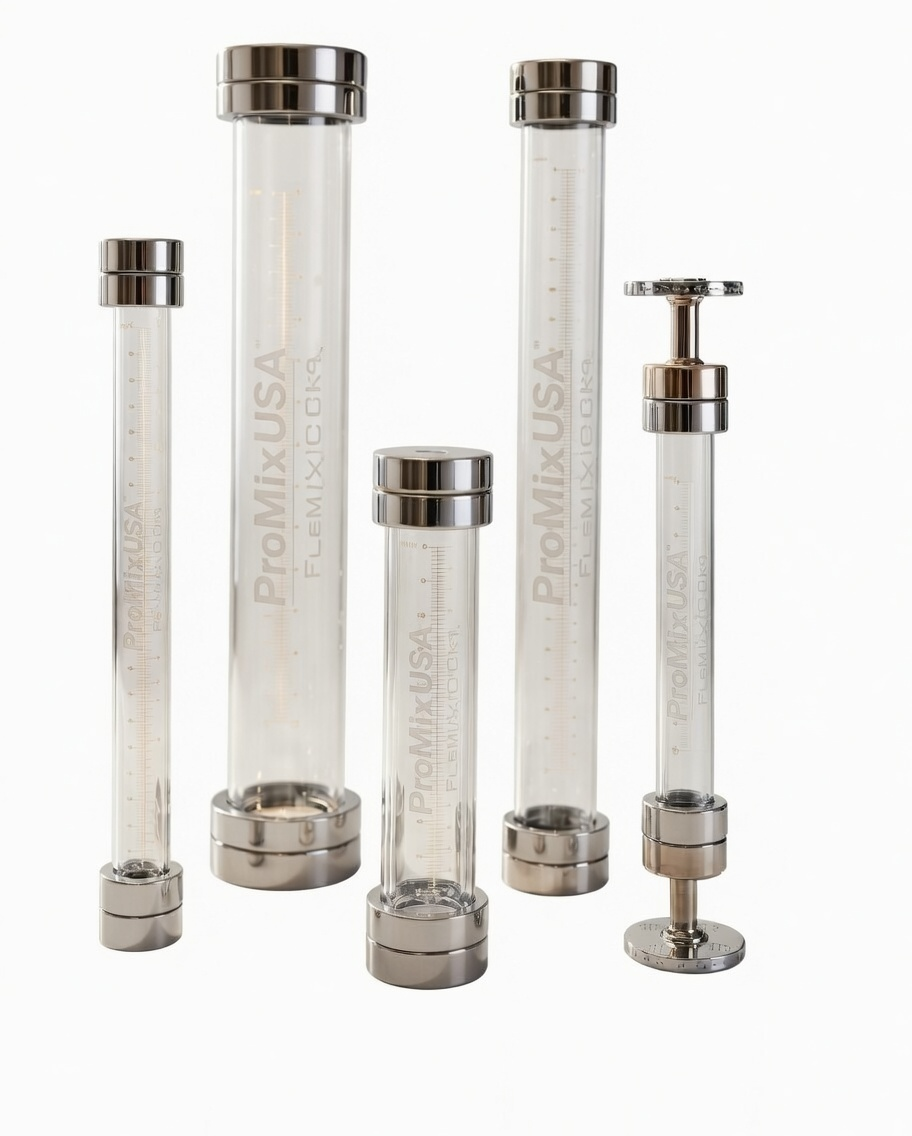

Calibration Columns (Glass) - Image 7
Calibration Columns (Glass) - Image 8
Calibration Columns (Glass) - Image 9
Calibration Columns (Glass) - Image 10
Calibration Columns (Glass) - Image 11
,

Calibration Columns (Glass)

Price range: $96.00 through $6,100.00

Calibration Columns (also known as Calibration Cylinders) are precision graduated vessels used to accurately measure and verify the actual output flow rate of chemical dosing pumps and metering pumps.

What Are Calibration Columns?

These clear, vertical tubes are installed in the suction or discharge line of a pump. By isolating the pump and timing how long it takes to draw down a known volume, operators can quickly calculate the exact flow rate in GPH, LPH, or mL/min.

The column body is typically made from clear PVC or acrylic for excellent visibility, while the end caps are available in CPVC, PTFE, or Stainless Steel to ensure full chemical compatibility with the pumped fluid.

Calibration Columns with Stainless Steel end caps are the most reliable and cost-effective way to verify and document chemical dosing pump performance.

SKU: 340500-40501 Categories: , Tags: , , , , , , , , , Brand:

Glass Calibration Columns, also known as Glass Calibration Cylinders, Graduated Calibration Columns (Glass), or Pump Calibration Columns (Glass), serve as precision-engineered vertical tubes that accurately measure and verify the actual output flow rate of chemical dosing pumps, metering pumps, and diaphragm pumps.  Furthermore, operators use these columns to perform simple, visual, and highly accurate pump calibration.  In addition, they completely eliminate the need for complex instrumentation or pump disassembly. As a result, technicians can quickly confirm pump performance and maintain precise chemical dosing. Moreover, calibration columns offer a reliable and straightforward method that improves accuracy while significantly reducing calibration time in industrial processes.

What Are Calibration Columns?

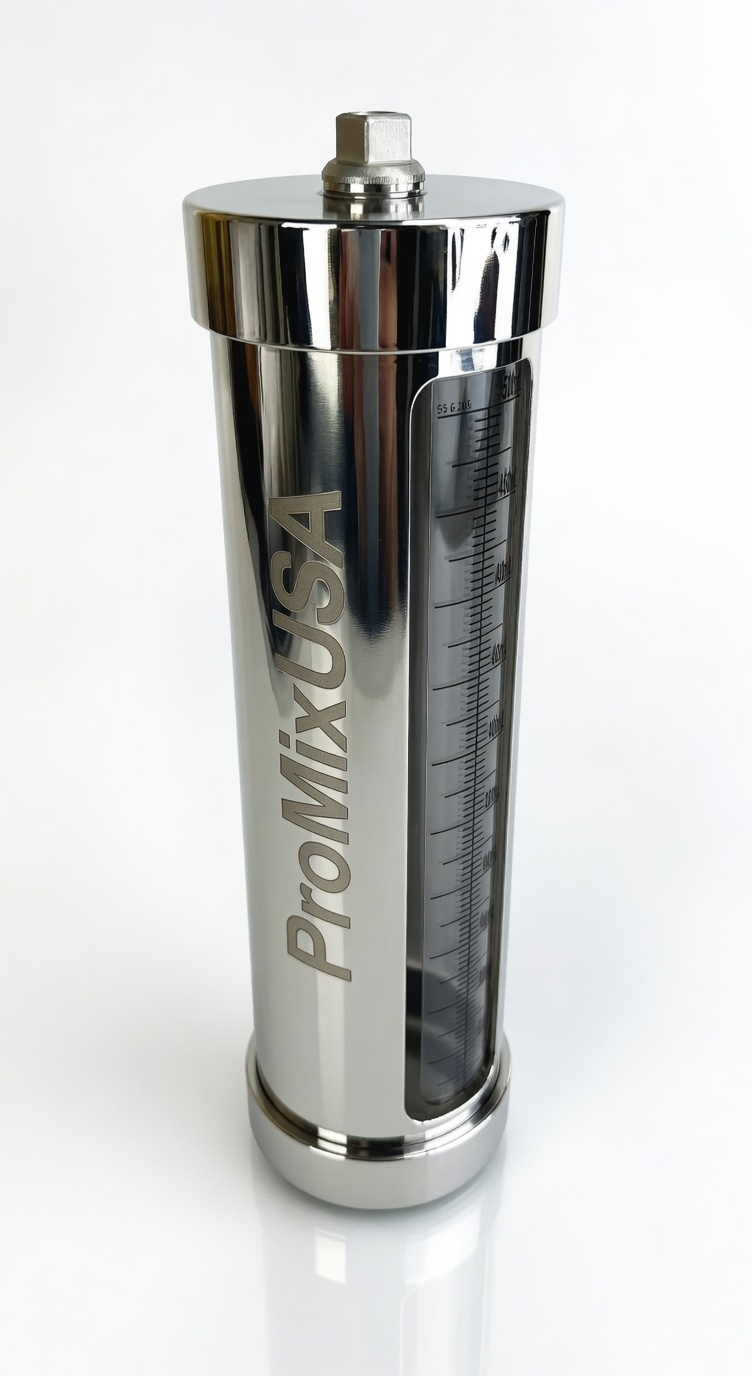

A Glass Calibration Column is a clear, graduated cylindrical vessel installed in the suction or discharge line of a chemical dosing pump.
By isolating the pump and timing how long it takes to draw down (or fill) a known volume marked on the column, operators can calculate the exact flow rate in gallons per hour (GPH), liters per hour (LPH), or milliliters per minute.

The Glass column body is typically made from clear borosilicate glass for excellent visibility. The critical component is the end caps (top and bottom fittings), which determine chemical compatibility, pressure rating, and ease of installation.  End caps are available in Stainless Steel, offering distinct advantages depending on the process fluid, pressure, and temperature requirements.

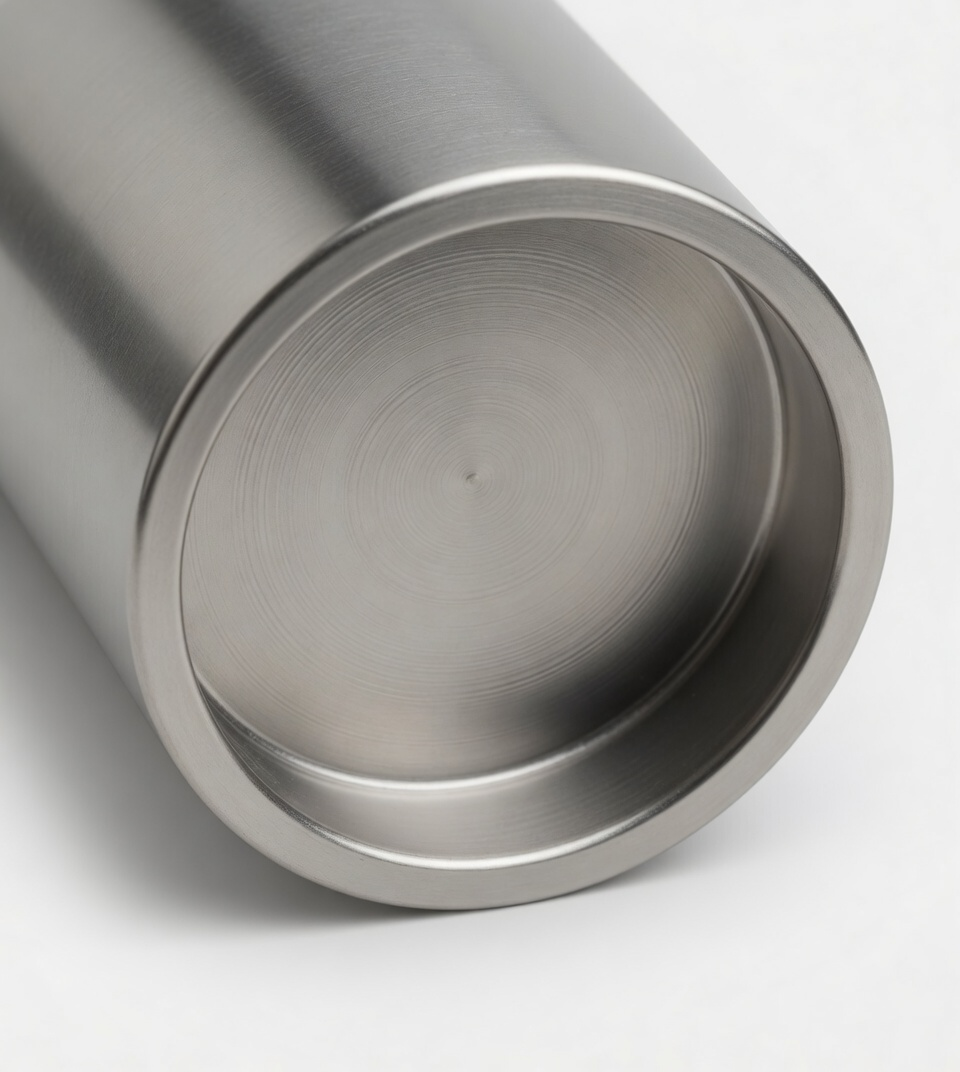

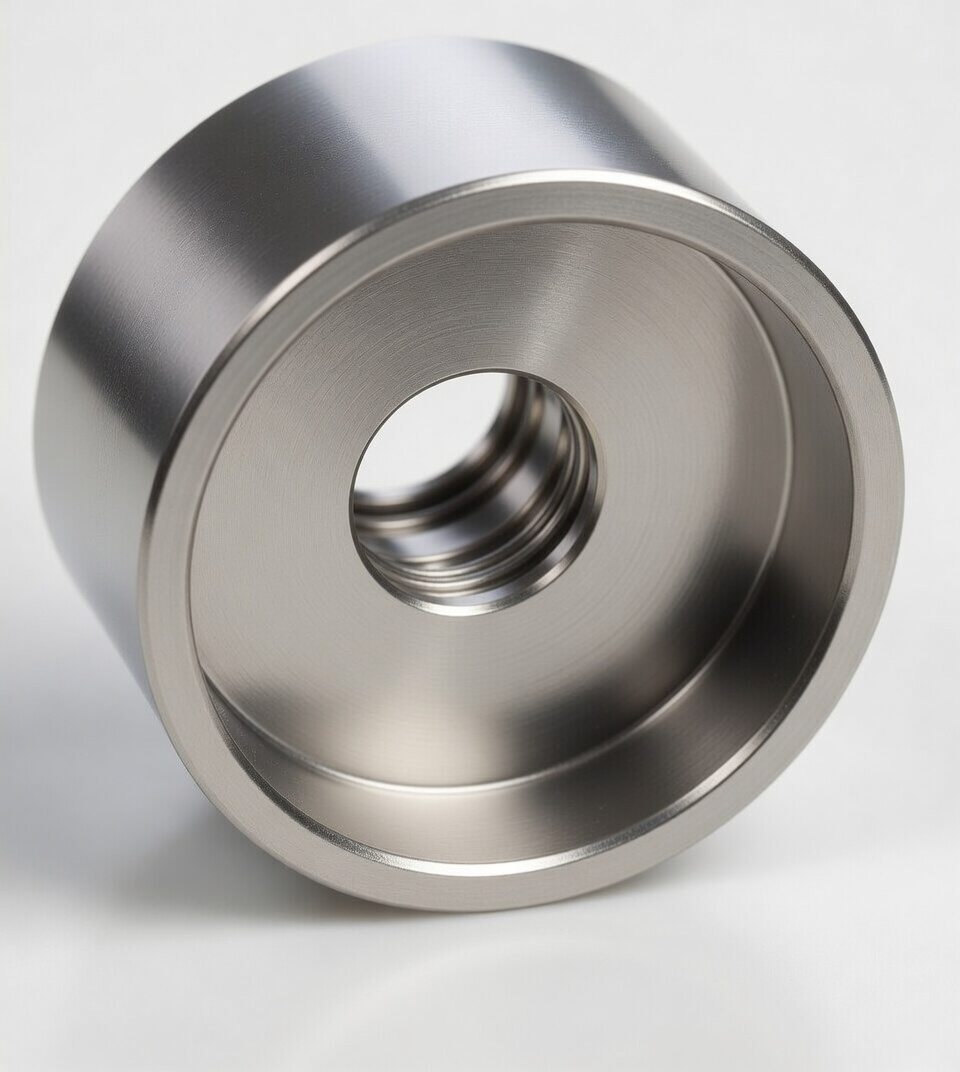

End Cap Material Options

End Cap Material Key Characteristics Best Applications
Stainless Steel (304) Highest mechanical strength and pressure rating (up to 300+ PSI). Excellent for high-pressure systems. Available in threaded or flanged connections. Oil & Gas, high-pressure chemical injection, pulp & paper, and applications requiring rugged construction.
Stainless Steel (316L) Highest mechanical strength and pressure rating (up to 300+ PSI). Excellent for high-pressure systems. Available in threaded, flanged, or sanitary Tri-Clamp connections. Sanitary environment’s especially, Oil & Gas, pharmaceutical, high-pressure chemical injection, pulp & paper, and applications requiring rugged construction.

Key Benefits of Calibration Columns

Accurate Pump Calibration Provides direct visual measurement of actual pump output — far more accurate than relying on pump stroke settings alone.
Simple & Fast Verification No need for scales, flow meters, or complicated test equipment. Just time the draw-down with a stopwatch.
Versatile End Cap Selection Stainless Steel end caps allow perfect material compatibility for any chemical being pumped.
Permanent or Portable Use Can be permanently installed in the pump suction line or used as a portable calibration tool.
Weight 8 lbs
Dimensions 16 × 4 × 4 in
Connection Size

1/2", 3/4", 1", 2"
Flow Rate (ML/Min // GPH)

100 ML/Min / 1.5 GPH, 250 ML/Min / 4 GPH, 500 ML/Min / 8 GPH, 1000 ML/Min / 16 GPH, 2000 ML/Min / 32 GPH, 4000 ML/Min / 64 GPH, 8000 ML/Min / 128 GPH, 10000 ML/Min / 160 GPH, 20000 ML/Min / 320 GPH
Materials of Column

PVC, Glass
Connection Ends

Threaded (FNPT), Flanged (RF150), Tri-Clamp (Sanitary)
Materials of Caps

PTFE, CPVC, 316LSS
Capacity

100, 250, 500, 1000, 2000, 4000, 10000, 20000

Glass Column Specifications

Capacity
ML/Min		Capacity
GPH		CPVCPTFE316LSSTube ODColumn HeightFNPT End ConnectionsWeight
CPVC/PTFE/Stainless
1001.5100ML-GL-CPVC100ML-GL-PTFE100ML-GL-316L1.75"13"1/2"1 / 1.1 /1.6
2504250ML-GL-CPVC250ML-GL-PTFE250ML-GL-316L2.25"16.5"1/2"1.8 / 2.0 / 3.1
5008500ML-GL-CPVC500ML-GL-PTFE500ML-GL-316L2.75"18"3/4"2.7 / 3.0 / 4.8
1,000161000ML-GL-CPVC1000ML-GL-PTFE1000ML-GL-316L2.75"29"3/4"4.0 / 4.4 / 6.2
2,000322000ML-GL-CPVC2000ML-GL-PTFE2000ML-GL-316L4.0"24"1"5.8 / 6.7 / 11.5
4,000644000ML-GL-CPVC4000ML-GL-PTFE4000ML-GL-316L4.0"39"1"8.8 / 9.6 / 14.5

Installation

Proper installation of Calibration Columns is essential for accurate pump calibration, leak-free operation, and long service life.
Installation differs slightly depending on whether the column body is made of Glass (borosilicate) or Polycarbonate type.

Installation Procedures for Calibration Columns

Step Installation Procedure Tools / Materials Required Safety & Important Notes
1 Select the correct location in the suction line of the dosing pump, preferably close to the pump inlet but after any strainer or foot valve. Ensure the column is mounted vertically and accessible for reading the scale. Level, measuring tape The column must be perfectly vertical for accurate volume readings.
2 Shut down the pump, isolate the line, and depressurize the system. Follow lockout/tagout (LOTO) procedures. Lockout/Tagout kit Never install while the system is pressurized.
3 Install isolation valves (ball valves recommended) on both the inlet and outlet of the calibration column for easy isolation during calibration. Isolation ball valves, pipe fittings Valves must be full-port to avoid restricting flow.
4 For Glass Body Columns:
• Use PTFE or Viton gaskets only
• Hand-tighten connections carefully — glass is fragile
• Avoid any side loading or stress on the glass tube 		 Appropriate gaskets (PTFE for glass) Glass columns are more fragile — never overtighten.
5 Connect the top of the column to the pump suction line and the bottom to a drain or return line (if permanent installation). Ensure the column is mounted vertically using proper supports or brackets. Mounting brackets, level The column must be perfectly plumb for accurate volume measurement.
6 Fill the column slowly and check for leaks at all connections. Bleed any trapped air from the system. Process fluid for testing Check compatibility of end cap material (CPVC, PTFE, or Stainless Steel) with the chemical.
7 Document the installation, including column size, end cap material, serial number, and initial calibration test results. Installation checklist, camera Keep records for regulatory compliance and future maintenance.

Important Notes on Material Differences:
• Glass Columns: More chemically resistant and clearer over time, but fragile. Use extra care during installation and always use PTFE gaskets. Avoid thermal shock.
• Polycarbonate (Acrylic) Columns: More impact-resistant and lighter, but can be attacked by certain solvents (ketones, aromatics). Easier to handle but may yellow over time with UV exposure.Always match the end cap material (CPVC, PTFE, or Stainless Steel) to the chemical being pumped. Consult the manufacturer’s chemical compatibility chart before installation.

Maintenance

Calibration Columns are simple, reliable devices with no moving parts, but regular maintenance is essential to keep the graduation marks readable, prevent chemical buildup, ensure accurate volume readings, and maintain the integrity of the end caps and seals.

Maintenance Procedures for Calibration Columns

Maintenance Task Procedure & Frequency
Daily / Visual Inspection • Check for leaks at end caps and connections
• Verify the column is still perfectly vertical
• Observe the clarity of the graduation marks
Weekly Cleaning • Flush the column thoroughly with clean water or compatible solvent
• Wipe external surfaces to remove chemical residue
• Check that the scale markings remain clearly visible
Monthly Deep Cleaning & Inspection • Isolate the column and disassemble if possible
• Clean the inside thoroughly to remove any scaling, residue, or discoloration
• Inspect end cap (Stainless Steel) for cracks, swelling, or chemical attack
• Check and replace gaskets/seals if worn or compressed
Quarterly / Semi-Annual Maintenance • Perform a full chemical compatibility check on end caps and gaskets
• For Glass columns: Inspect for chips, cracks, or etching
• Verify all mounting brackets and supports are secure
Annual Replacement / Overhaul • Replace all gaskets and O-rings
• For Glass bodies: Consider full replacement if etching or damage is present
• Test calibration accuracy against a known volume
After Chemical Change or Long Shutdown • Thoroughly flush and clean the column before and after long shutdowns
• Inspect end caps for compatibility with the new chemical
• Re-verify pump calibration after reinstallation

Important Material-Specific Notes:

• Glass Columns: More chemically resistant but fragile. Inspect regularly for cracks or etching. Handle with care during cleaning.

Always match the end cap material (Stainless Steel) and gasket type to the pumped chemical. Replace gaskets proactively — they are the most common point of failure.  Keep a log of pressure drop, cleaning frequency, and any observed residue to predict maintenance needs.

Q&A

Question Answer
What is a Calibration Column? A Calibration Column (also called a Calibration Cylinder or Graduated Calibration Tube) is a precision vertical graduated vessel used to accurately measure and verify the actual output flow rate of chemical dosing pumps and metering pumps. It provides a simple, visual method to calculate exact GPH, LPH, or mL/min without complex instruments.
Why are Calibration Columns important? Pump nameplate or stroke settings are often inaccurate due to wear, backpressure, viscosity changes, or air entrapment. Calibration Columns allow direct verification of actual chemical delivery, which is critical for regulatory compliance, process control, and preventing over- or under-dosing.
What materials are used for the end caps? End caps are available in two main materials:

• Stainless Steel (304) – Highest strength and pressure rating for high-pressure systems

• Stainless Steel (316L) – Highest strength and pressure rating for high-pressure systems
What is the difference between Glass and Polycarbonate / Acrylic columns? • Glass (Borosilicate): Superior chemical resistance and long-term clarity, but more fragile and sensitive to thermal shock.
• Polycarbonate/Acrylic: More impact-resistant and lighter, easier to handle, but can yellow or craze when exposed to certain solvents and loses clarity faster over time.
How do you calibrate a pump using a Calibration Column? 1. Isolate the column using valves.
2. Fill the column to a known volume mark.
3. Start the pump and time how long it takes to draw down to a lower mark.
4. Calculate flow rate = Volume (mL or gallons) ÷ Time (minutes).
Where should a Calibration Column be installed? It is typically installed in the suction line of the dosing pump, after the foot valve/strainer but before the pump inlet. Isolation valves on both sides allow calibration without shutting down the entire system.
How often should Calibration Columns be maintained? • Daily: Visual leak check
• Weekly: Flush and clean exterior
• Monthly: Thorough internal cleaning
• Quarterly/Annually: Deep cleaning, gasket replacement, and scale readability check
Can Calibration Columns be used with all chemicals? No. Material compatibility is critical. Use PTFE end caps and glass bodies for strong acids/solvents. CPVC is suitable for most water treatment chemicals. Stainless Steel works well for high-pressure or mildly corrosive fluids. Always check chemical compatibility charts.
Are Calibration Columns permanent or portable? Both options exist. Permanent installations include isolation valves for quick calibration. Portable columns are useful for servicing multiple pumps or field verification.

Note: Calibration Columns are one of the simplest and most accurate tools for verifying chemical dosing pump performance.
Choosing the correct body material (Glass vs Polycarbonate) and end cap material (CPVC, PTFE, or Stainless Steel) is essential for long-term reliability and chemical compatibility.
Regular cleaning and gasket replacement will ensure accurate readings and prevent leaks.

Advantages / Disadvantages

Advantages Disadvantages
  • Provides the most accurate and direct method to measure actual pump output flow rate
  • Simple, visual, and fast — no need for expensive flow meters or scales
  • Helps detect pump wear, air entrapment, or backpressure issues early
  • Essential for regulatory compliance and documentation of chemical dosing rates
  • Can be installed permanently with isolation valves or used as a portable tool
  • Low initial cost compared to electronic flow verification systems
  • Works with virtually any type of metering or dosing pump
  • Requires manual operation and timing with a stopwatch (not automated)
  • Only provides spot-check calibration, not continuous real-time monitoring
  • Glass columns are fragile and can break if mishandled
  • End caps and gaskets must be chemically compatible or they can fail
  • Installation adds extra valves and potential leak points to the system
  • Not suitable for very high-pressure systems unless stainless steel end caps are used
  • Requires regular cleaning to keep scale markings readable

Note: Calibration Columns remain one of the simplest, most reliable, and cost-effective tools for verifying chemical dosing pump performance.
While they require some manual effort, their accuracy and ability to work with CPVC, PTFE, or Stainless Steel end caps make them indispensable in water treatment, wastewater, chemical processing, and industrial dosing applications.

Applications

Calibration Columns are essential tools for verifying the actual output of chemical dosing and metering pumps.

They are used across industries where precise chemical feed rates are critical for process control, regulatory compliance, product quality, and environmental safety.

Applications of Calibration Columns

Industry / Application Typical Use Cases Purpose & Benefits
Water & Wastewater Treatment Chlorine / Chloramine dosing, coagulant (alum/ferric) feed, pH adjustment with acid or caustic, polymer dosing, fluoride addition Ensures accurate chemical feed rates for disinfection, clarification, and regulatory compliance (EPA, state permits). Critical for public health and environmental protection.
Oil & Gas Production Corrosion inhibitor injection, scale inhibitor dosing, biocide feed, demulsifier injection, H₂S scavenger addition Verifies precise delivery of expensive chemicals into high-pressure lines and prevents under-dosing that could cause equipment failure or pipeline corrosion.
Power Generation Boiler feedwater chemical treatment, cooling tower biocide and scale control, ammonia injection for SCR systems Maintains precise chemical dosing to protect expensive boilers, turbines, and heat exchangers while meeting strict environmental discharge limits.
Chemical Processing & Manufacturing Acid/base dosing, catalyst addition, reactant feed, polymer blending, specialty chemical metering Ensures consistent product quality and prevents costly over- or under-dosing in continuous chemical production processes.
Food & Beverage Processing Sanitizer dosing, pH control, preservative addition, cleaning chemical injection Maintains food safety standards and regulatory compliance (FDA, USDA) while optimizing chemical usage.
Pharmaceutical & Biotech High-purity chemical dosing, buffer preparation, CIP chemical injection, bioreactor nutrient feed Provides documented proof of accurate dosing required for GMP and regulatory validation using PTFE or stainless steel end caps.
Pulp & Paper Industry Bleach dosing, pH control, retention aid and sizing chemical addition Ensures consistent product quality and prevents costly chemical waste in continuous paper production lines.

Calibration Columns with CPVC, PTFE, or Stainless Steel end caps are used wherever precise chemical dosing is required.
From drinking water disinfection to high-pressure oilfield chemical injection and pharmaceutical manufacturing, they remain one of the most trusted and cost-effective methods for verifying pump performance and maintaining process control.
